PB-751 H - Echo Backpack Blower (SN: 06001001 - 06999999) Carburetor -- WYK-192 Parts Diagram

Backpack Blower

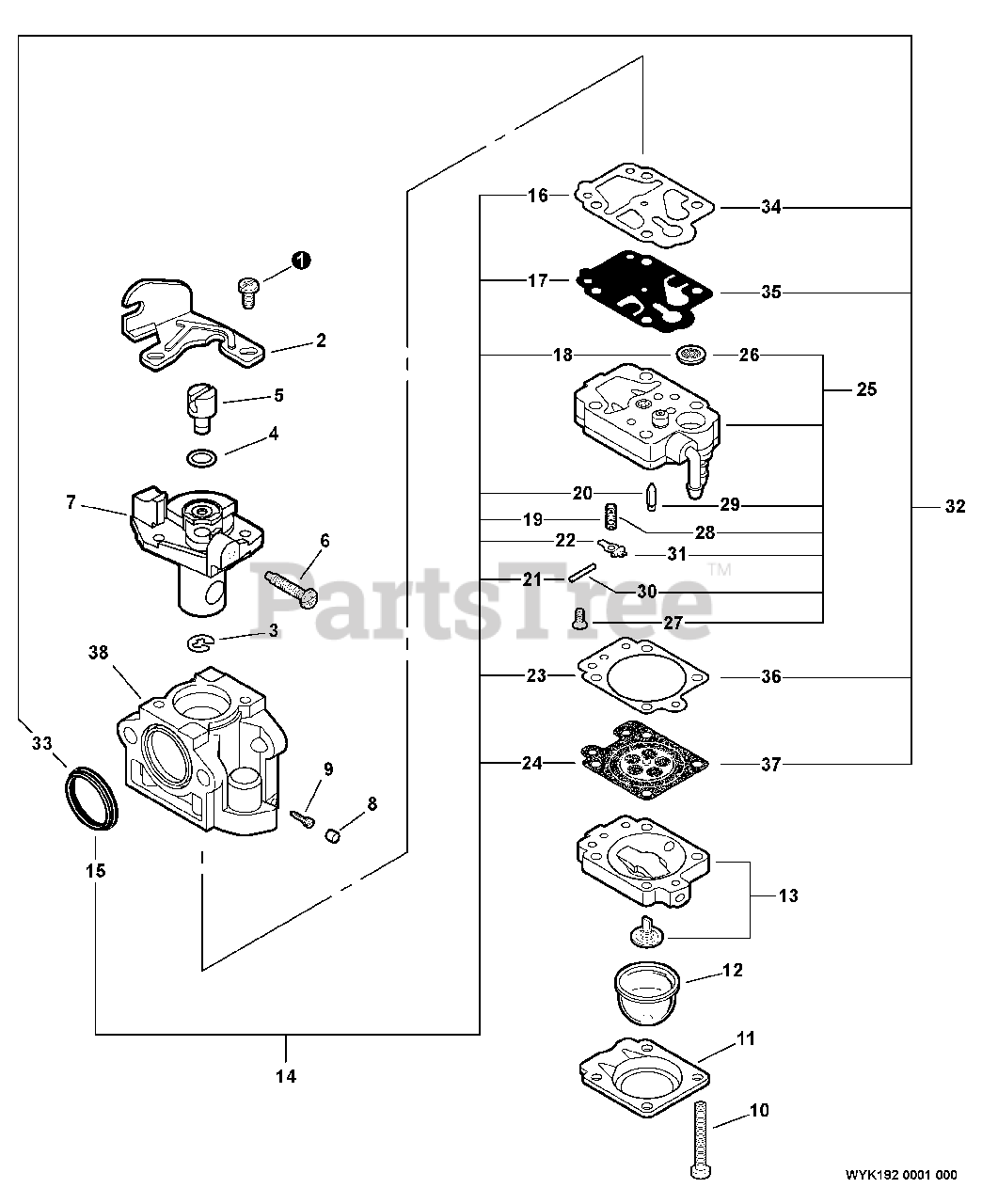

Carburetor -- WYK-192 Parts Diagram

  • Title

Echo A021000810

CARBURETOR WYK-192
(Superseded to A021000811)

$65.99

$

In Stock, only 2 left!

0

$2.49

$

In Stock, only 3 left!

0

2

Echo P003000180

BRACKET, CABLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

4

$0.99

$

In Stock, only 1 left!

0

5

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

7

------------------

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

8

Echo A259000000

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

9

Echo P003001130

NEEDLE - HIGH SPEED

$10.99

$

Usually ships in 2-4 days

0

10

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

11

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

12

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

13

Echo 12318005560

PURGE BASE ASSY

$7.49

$

In Stock, only 1 left!

0

14

Echo P003000660

REPAIR KIT
(Superseded to P003001120)

Note: Includes ITEMS 15-24

$22.99

$

In Stock, Qty 7

0

15

------------------

SEAL

$

$

Not available

16

------------------

GASKET, PUMP

$

$

Not available

17

------------------

DIAPHRAGM, PUMP

$

$

Not available

18

------------------

STRAINER

$

$

Not available

19

------------------

SPRING, METERING LEVER

$

$

Not available

20

------------------

VALVE, INLET NEEDLE

$

$

Not available

21

------------------

PIN, METERING LEVER

$

$

Not available

22

------------------

LEVER, METERING

$

$

Not available

23

------------------

GASKET, DIAPHRAGM

$

$

Not available

24

------------------

DIAPHRAGM, METERING

$

$

Not available

25

Echo P003000630

PUMP BODY ASSY

Note: Includes ITEMS 26-31

$22.99

$

In Stock, only 1 left!

0

26

------------------

STRAINER

$

$

Not available

27

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

28

------------------

SPRING, METERING LEVER

$

$

Not available

29

------------------

VALVE, INLET NEEDLE

$

$

Not available

30

------------------

PIN, METERING LEVER

$

$

Not available

31

------------------

LEVER, METERING

$

$

Not available

32

Echo P003000650

DIAPHRAGM/GASKET KIT
(Superseded to P003001120)

Note: Includes ITEMS 33-37

$22.99

$

In Stock, Qty 7

0

33

------------------

SEAL

$

$

Not available

34

------------------

GASKET, PUMP

$

$

Not available

35

------------------

DIAPHRAGM, PUMP

$

$

Not available

36

------------------

GASKET, DIAPHRAGM

$

$

Not available

37

------------------

DIAPHRAGM, METERING

$

$

Not available

38

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
