PB-650 - Echo Backpack Blower (SN: 03001001 - 03999999) Ignition Parts Diagram

Backpack Blower

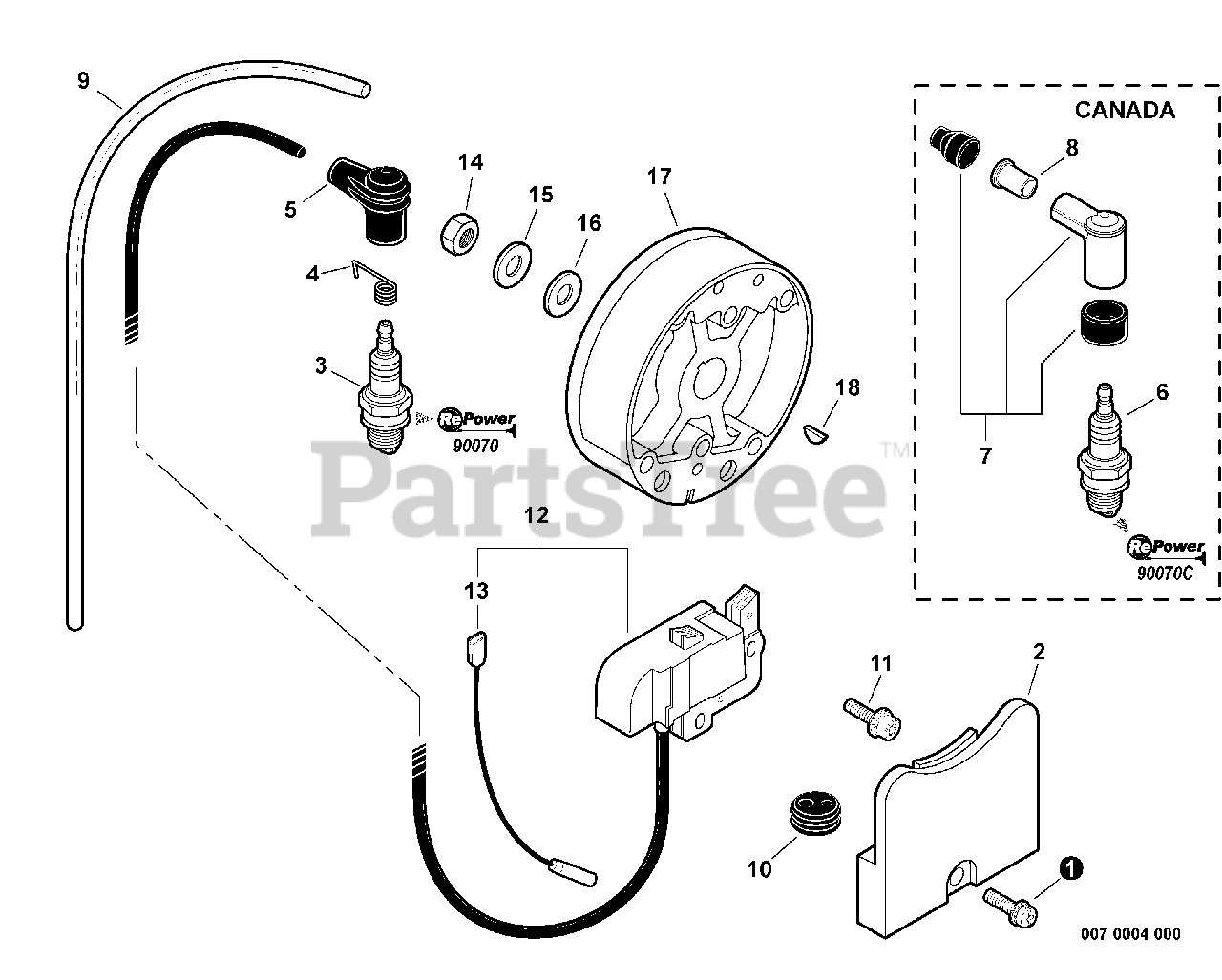

Ignition Parts Diagram

  • Title

1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

2

Echo 15912908261

COVER, DUST

$5.99

$

In Stock, only 1 left!

0

3

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.99

$

In Stock, Qty 20+

0

4

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

5

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

6

Echo A425000000

SPARK PLUG -- BPMR-8Y

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

7

Echo 15901210230

CAP, SPARK PLUG

Note: CANADA MODELS

$11.99

$

In Stock, only 1 left!

0

8

Echo 15901605330

ADAPTER, SPARK PLUG CAP

Note: CANADA MODELS

$1.49

$

Usually ships in 2-4 days

0

9

Echo 15611106160

TUBE - VINYL

$1.49

$

In Stock, Qty 9

0

10

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 13

0

11

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

12

Echo A415000000

IGNITION COIL KIT
(Superseded to A415000001)

Note: Includes ITEM 13

$94.99

$

In Stock, only 3 left!

0

13

Echo V485000190

LEAD - IGNITION

$2.49

$

In Stock, Qty 10

0

14

Echo 90050100010

NUT - 10

$0.99

$

In Stock, Qty 5

0

15

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

16

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

17

Echo A409000110

FLYWHEEL
(Superseded to P021009560)

$172.99

$

Usually ships in 2-4 days

0

18

Echo 90032303014

KEY - 3X14

$1.49

$

In Stock, only 4 left!

0

19

Echo 90070

RePower TUNE-UP KIT
(Superseded to 90151)

$25.99

$

In Stock, Qty 20+

0

20

Echo 90070C

RePower TUNE-UP KIT
(Superseded to 90151)

Note: CANADA MODELS

$25.99

$

In Stock, Qty 20+

0
