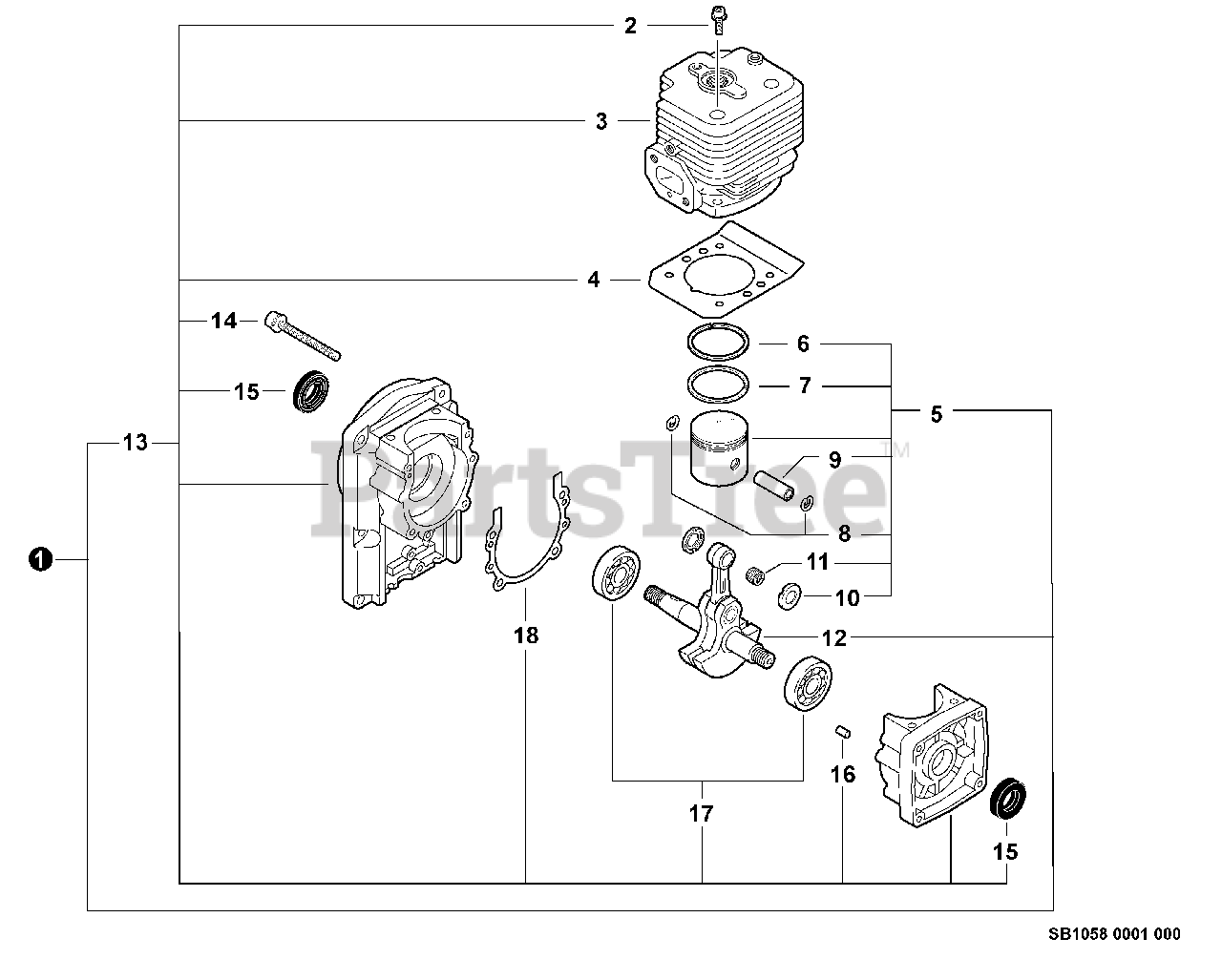

PB-650 - Echo Backpack Blower (SN: 03001001 - 03999999) Engine, Short Block Parts Diagram

Backpack Blower

Engine, Short Block Parts Diagram

  • Title

1

Echo SB1058

SHORT BLOCK -- SB1058

Note: Includes ITEMS 2-18

$401.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000250

CYLINDER
(Superseded to A130000251)

$188.99

$

Usually ships in 2-4 days

0

4

Echo V100000050

GASKET, CYLINDER
(Superseded to V100000051)

$2.49

$

Usually ships in 2-4 days

0

5

Echo P021002982

PISTON KIT
(Superseded to P021002983)

Note: Includes ITEMS 6-11

$98.99

$

In Stock, Qty 6

0

6

Echo A101000030

RING, PISTON

$11.99

$

In Stock, only 2 left!

0

7

Echo A101000020

RING, PISTON

$7.49

$

In Stock, only 2 left!

0

8

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

9

Echo V608000010

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

10

Echo V307000060

WASHER - 10

$6.49

$

Usually ships in 2-4 days

0

11

Echo V555000010

BEARING, NEEDLE - 10

$10.99

$

In Stock, Qty 7

0

12

Echo A011000140

CRANKSHAFT ASSY

$214.99

$

In Stock, only 1 left!

0

13

Echo P021002991

CRANKCASE KIT

Note: Includes ITEMS 14-18

$245.99

$

Usually ships in 2-4 days

0

14

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0

15

Echo V508000010

SEAL, OIL
(Superseded to V508000100)

$5.49

$

In Stock, only 4 left!

0

16

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

17

Echo 9403236302

BEARING, BALL - 6302

$17.99

$

In Stock, only 1 left!

0

18

Echo V102000010

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 18

0
