PB-620 H - Echo Backpack Blower (SN: P04611001001 - P04611999999) Intake Parts Diagram

Backpack Blower

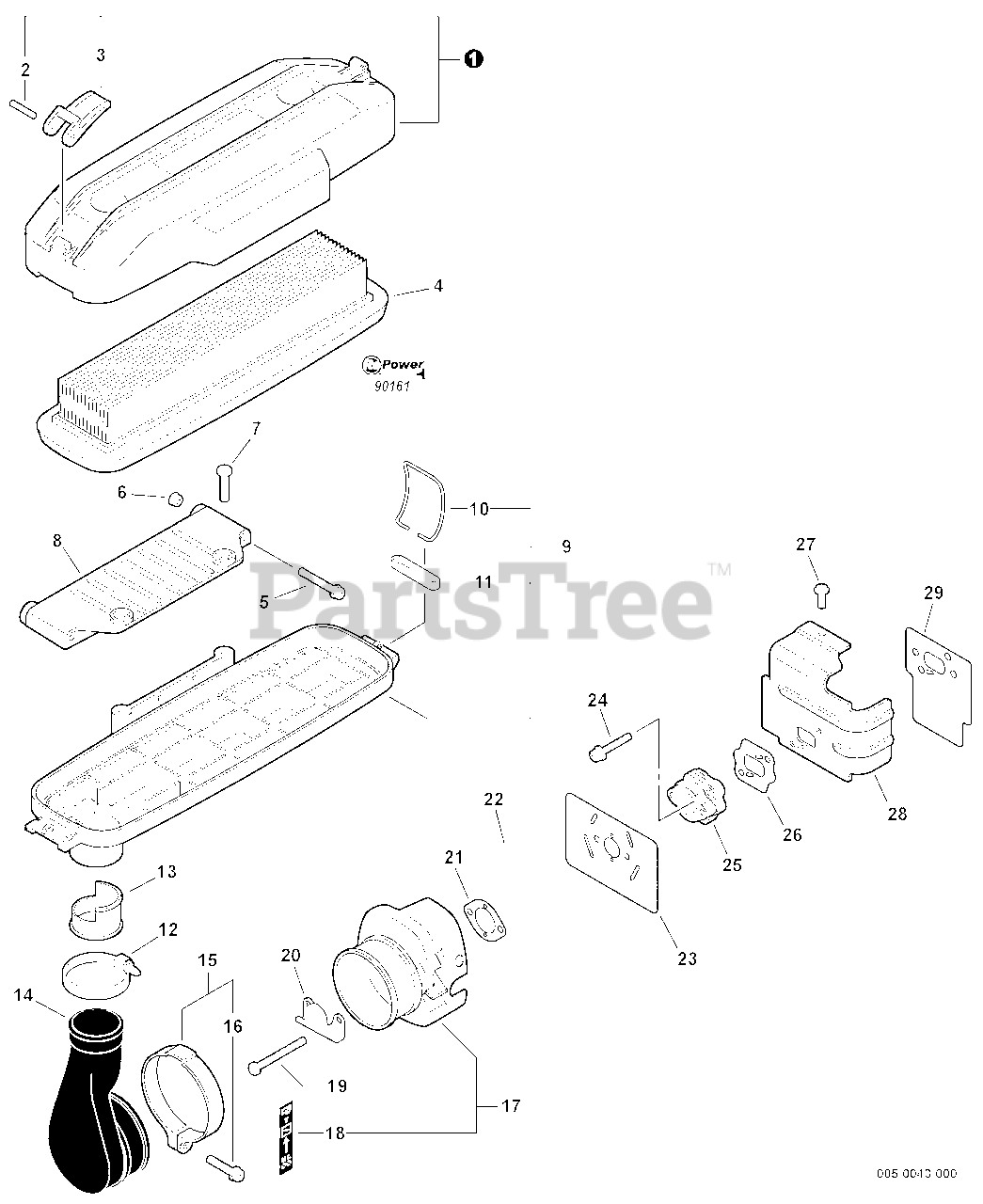

Intake Parts Diagram

  • Title
1

Echo 13030808360

AIR FILTER COVER ASSY
(Superseded to 13030808361)

Note: INCLUDES ITEMS 2-3

$14.99

$

Usually ships in 2-4 days

0

2

Echo 90034530025

PIN - SPRING -- 3X25

$1.99

$

In Stock, only 2 left!

0

$4.49

$

In Stock, only 2 left!

0

4

Echo 13030508361

FILTER, AIR

$13.99

$

In Stock, Qty 13

0

5

Echo 90023805040

SCREW - 5X40

$0.99

$

In Stock, only 1 left!

0

6

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

7

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

8

Echo E617000030

BRACKET

$2.49

$

Usually ships in 2-4 days

0

9

Echo A225000310

AIR FILTER CASE ASSY

Note: Includes ITEMS 10-11

$13.99

$

Usually ships in 2-4 days

0

10

Echo 13103208360

RING, RETAINING

$2.99

$

In Stock, Qty 11

0

11

Echo V491000220

RETAINER

$0.99

$

In Stock, Qty 20+

0

12

Echo 13071508260

CLAMP, HOSE

$1.99

$

In Stock, only 2 left!

0

13

$2.99

$

In Stock, Qty 7

0

14

Echo 13071108260

ADAPTOR, INTAKE

$22.99

$

In Stock, only 2 left!

0

15

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 16

$7.49

$

In Stock, Qty 10

0

16

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

17

Echo A221000000

BRACKET KIT - PLASTIC

Note: Includes ITEMS 18-19

$10.99

$

In Stock, only 1 left!

0

18

Echo 89015808261

LABEL - CHOKE

$2.49

$

Usually ships in 2-4 days

0

19

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

20

Echo A244000020

PLATE, PREVENT

$2.99

$

In Stock, only 1 left!

0

21

Echo 13001603731

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

22

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

23

Echo 13001021262

GASKET, INTAKE

$2.49

$

In Stock, Qty 20+

0

24

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

25

Echo 13000708261

INSULATOR, INTAKE

$10.99

$

In Stock, only 2 left!

0

26

Echo V103000000

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

27

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 10151408260

COVER, CYLINDER - INTAKE

$19.99

$

Usually ships in 2-4 days

0

29

Echo 13001606211

SHIELD, INTAKE

$0.99

$

In Stock, Qty 20+

0

30

Echo 90161

RePower TUNE-UP KIT
(Superseded to 90161Y)

$27.99

$

In Stock, only 1 left!

0
