PB-620 H - Echo Backpack Blower (SN: P04611001001 - P04611999999) Hip Mount Throttle Control Parts Diagram

Backpack Blower

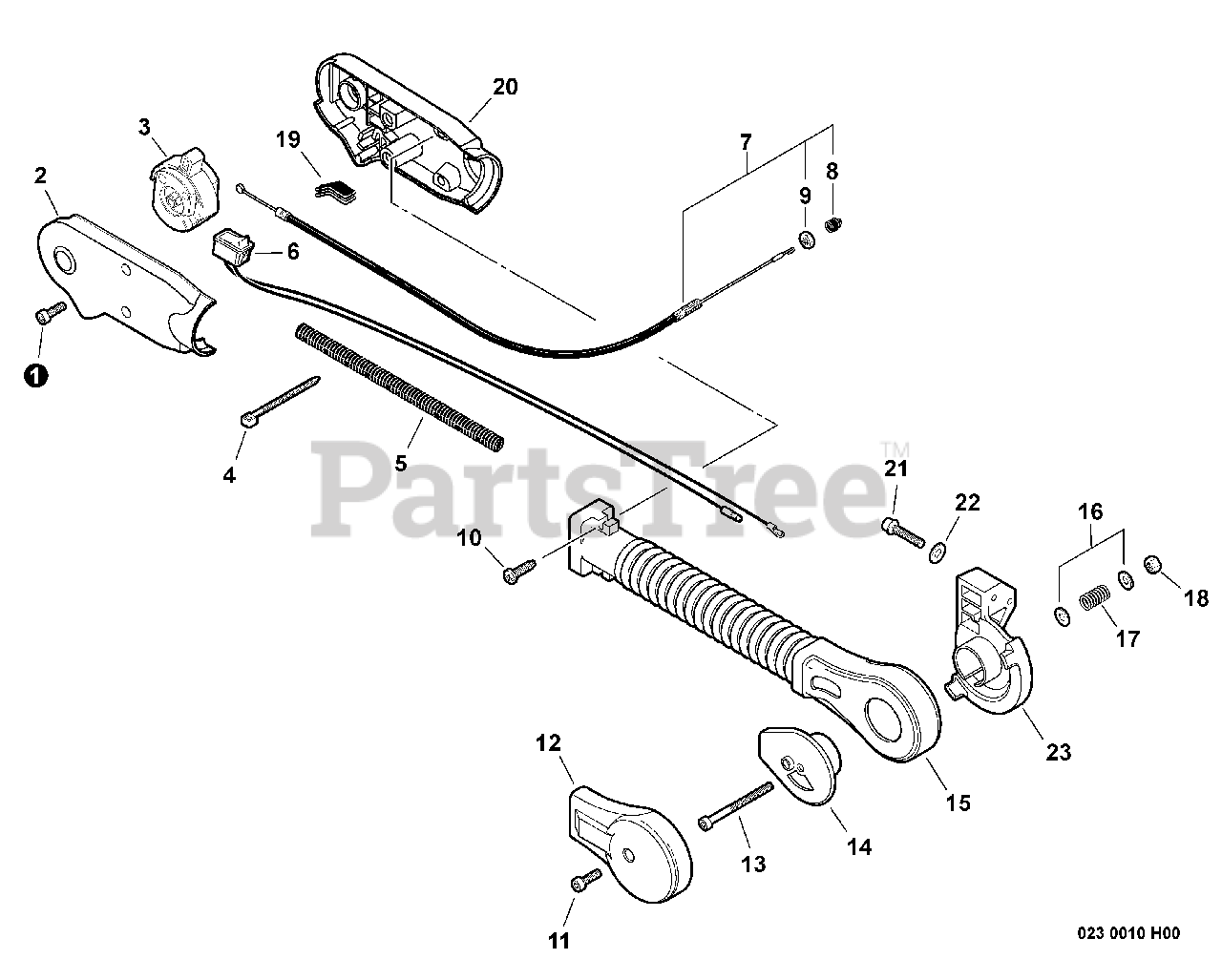

Hip Mount Throttle Control Parts Diagram

  • Title

1

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

2

Echo C471000112

HANDLE, CONTROL - LEFT
(Superseded to C471000113)

$3.49

$

In Stock, only 1 left!

0

3

Echo C470000161

THROTTLE CONTROL ASSY
(Superseded to C470000162)

$7.99

$

In Stock, only 2 left!

0

4

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0

5

Echo V475002260

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

Usually ships in 2-4 days

0

6

Echo A045000111

IGNITION SWITCH ASSY

$9.99

$

In Stock, only 2 left!

0

7

Echo V430002390

THROTTLE CABLE ASSY

Note: Includes ITEMS 8-9

$13.99

$

Usually ships in 2-4 days

0

8

Echo 17808208260

CAP, DUST

$3.49

$

In Stock, only 2 left!

0

9

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

11

Echo 90010505014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

12

Echo C459000020

COVER, ARM

$2.99

$

Usually ships in 2-4 days

0

13

Echo V253000110

SCREW - 5X80

$1.99

$

Usually ships in 2-4 days

0

14

Echo C472000030

BRACKET, CONTROL ARM - OUTER

$2.49

$

Usually ships in 2-4 days

0

15

Echo C456000050

ARM, CONTROL

$8.49

$

In Stock, Qty 20+

0

16

Echo 30021700610

WASHER

$0.99

$

In Stock, Qty 20+

0

17

Echo V450000510

SPRING

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo V144000181

PLUG

$2.49

$

In Stock, only 2 left!

0

20

Echo C471000101

HANDLE, CONTROL - RIGHT
(Superseded to C471000102)

$3.49

$

Usually ships in 2-4 days

0

21

Echo 9114705025

SCREW - 5X25 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

22

Echo 61301907350

WASHER - 5

$0.99

$

In Stock, Qty 10

0

23

Echo C472000060

BRACKET, ARM - INNER

$3.99

$

Usually ships in 2-4 days

0
