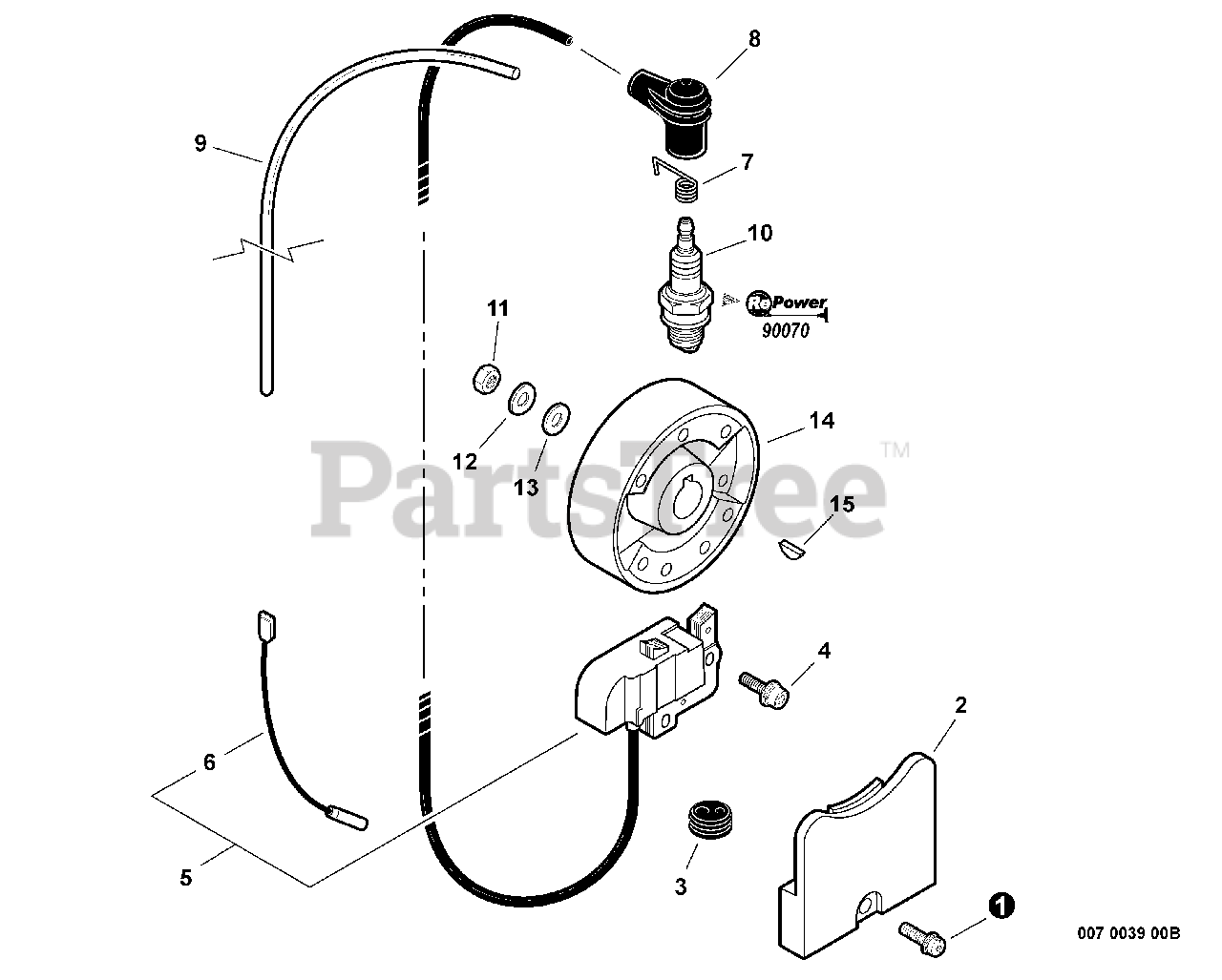

PB-611 - Echo Backpack Blower (SN: 02001001 - 02999999) Ignition Parts Diagram

Backpack Blower

Ignition Parts Diagram

  • Title

1

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

2

Echo 15912908261

COVER, DUST

$5.99

$

In Stock, only 1 left!

0

3

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 13

0

4

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

5

Echo 15660109861

COIL, IGNITION
(Superseded to 15660108361)

Note: Includes ITEM 6

$100.99

$

In Stock, Qty 16

0

6

Echo 16202108260

LEAD - IGNITION

$3.99

$

In Stock, only 2 left!

0

7

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

8

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

9

Echo 15611106160

TUBE - VINYL

$1.49

$

In Stock, Qty 9

0

10

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.99

$

In Stock, Qty 20+

0

11

Echo 90050100010

NUT - 10

$0.99

$

In Stock, Qty 5

0

12

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

13

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

14

Echo 15680006161

FLYWHEEL

$100.99

$

Usually ships in 2-4 days

0

15

Echo 90032303014

KEY - 3X14

$1.49

$

In Stock, only 4 left!

0

16

Echo 90070

RePower TUNE-UP KIT
(Superseded to 90151)

$25.99

$

In Stock, Qty 20+

0
