PB-610 - Echo Backpack Blower (SN: 10001001 - 10999999) Engine, Short Block -- SB1078 Parts Diagram

Backpack Blower

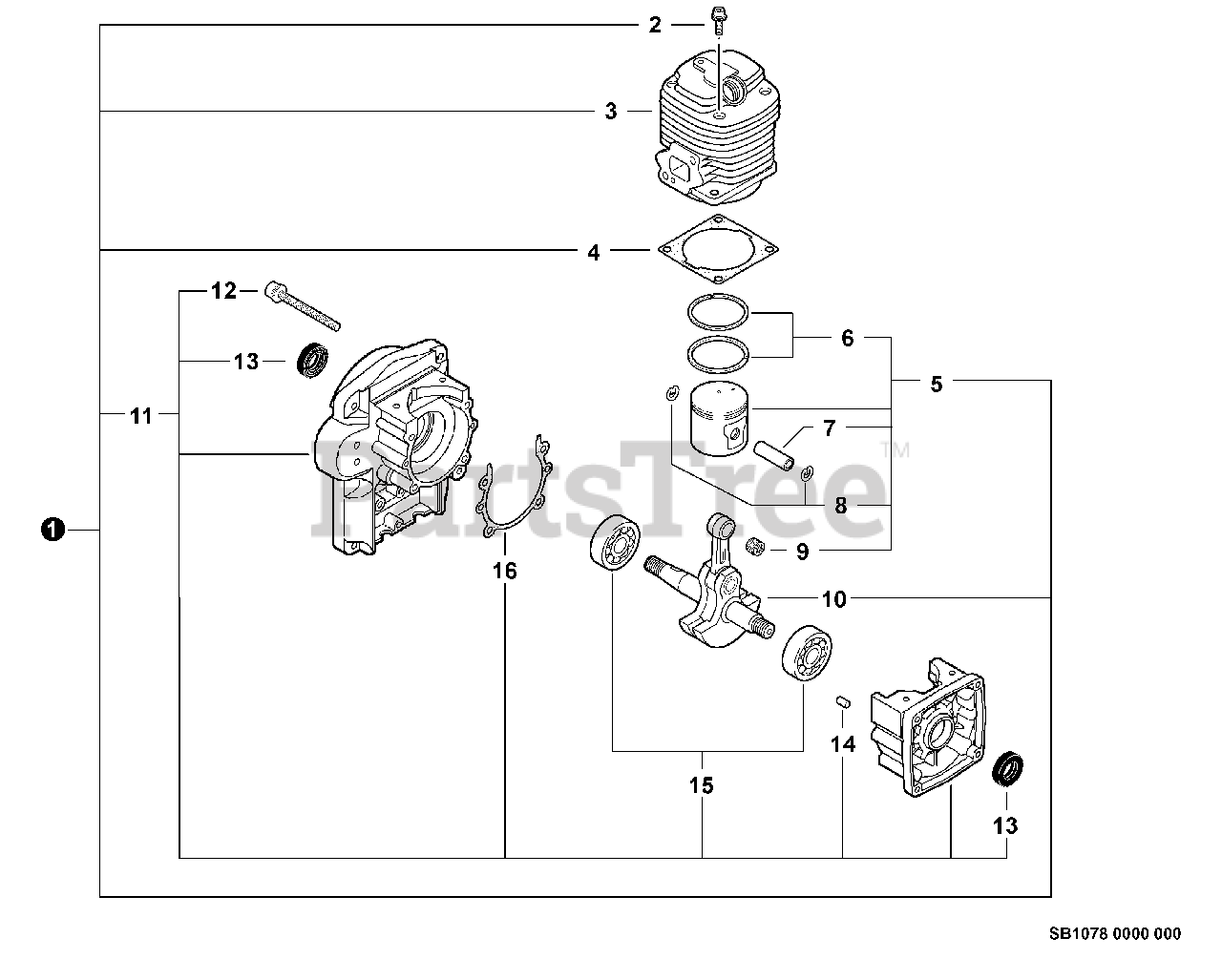

Engine, Short Block -- SB1078 Parts Diagram

  • Title

1

Echo SB1078

SHORT BLOCK -- SB1078

Note: Includes ITEMS 2-16

$393.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000570

CYLINDER

$203.99

$

In Stock, only 3 left!

0

4

Echo 10101006211

GASKET, CYLINDER

Note: Included In GASKET KIT

$1.99

$

In Stock, only 4 left!

0

5

Echo P021007450

PISTON KIT

Note: Includes ITEMS 6-9

$76.99

$

Usually ships in 2-4 days

0

6

Echo 10001108360

RING, PISTON

$8.99

$

In Stock, only 2 left!

0

7

Echo 10001306210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

9

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 7

0

10

Echo A011000340

CRANKSHAFT ASSY
(Superseded to A011001320)

$149.99

$

In Stock, only 1 left!

0

11

Echo 10020408261

CRANKCASE KIT

Note: Includes ITEMS 12-16

$233.99

$

Usually ships in 2-4 days

0

12

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 9

0

13

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 9403646202

BEARING, BALL - 6202

$9.99

$

Usually ships in 2-4 days

0

16

Echo 10024210721

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.49

$

In Stock, only 2 left!

0
