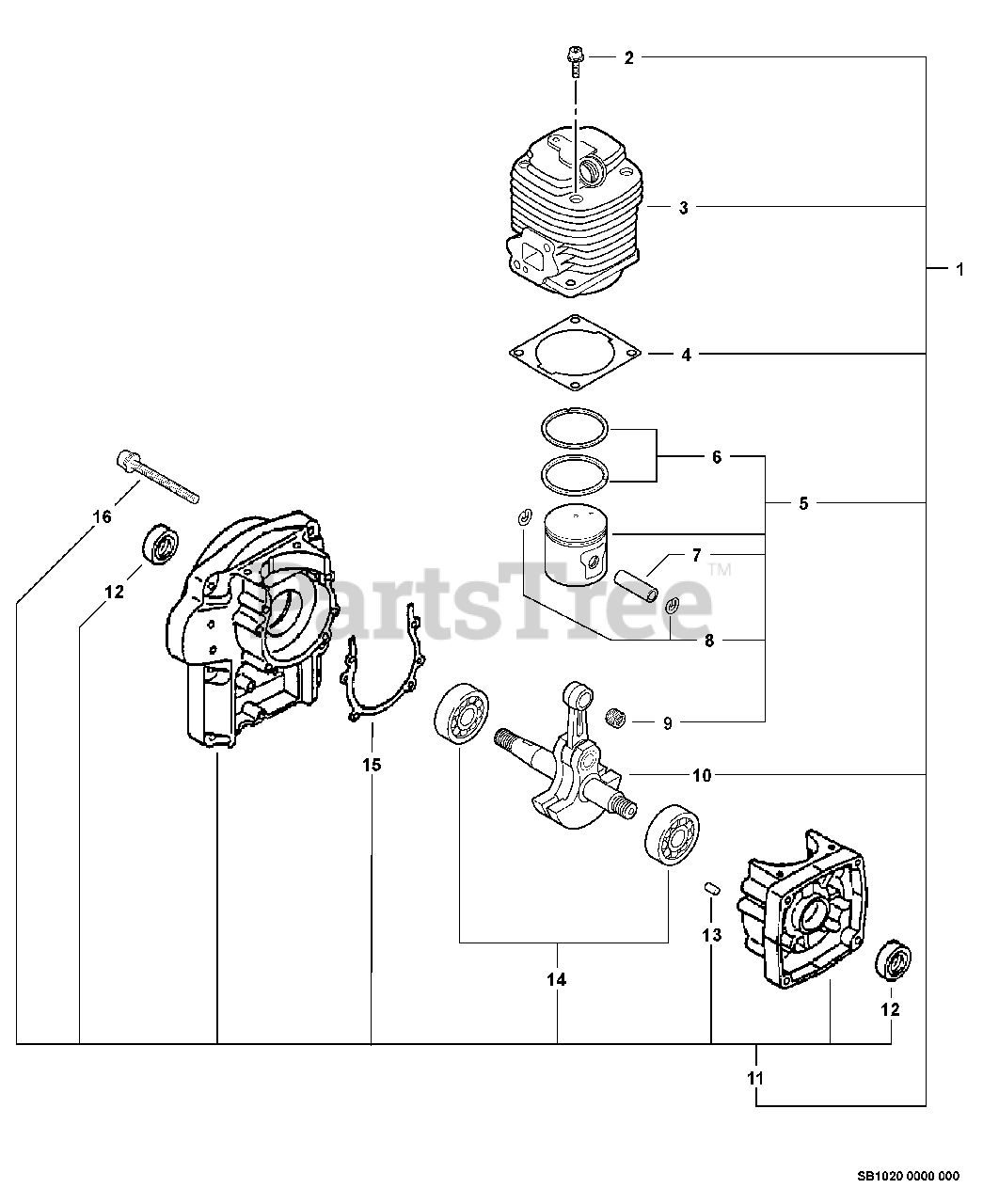

PB-601 - Echo Backpack Blower Engine, Short Block -- SB1020 S/N: 501001 - 506000 Parts Diagram

Backpack Blower

Engine, Short Block -- SB1020 S/N: 501001 - 506000 Parts Diagram

  • Title

1

Echo SB1020

SHORT BLOCK -- SB1020
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-16

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101108360

CYLINDER
(Superseded to Discontinued)

$

$

Not available

4

Echo 10101006211

GASKET, CYLINDER

Note: Included In GASKET KIT

$1.99

$

In Stock, only 4 left!

0

5

Echo 10000008360

PISTON KIT
(Superseded to Discontinued)

Note: Includes ITEMS 6-9

$

$

Not available

6

Echo 10001108360

RING, PISTON

$8.99

$

In Stock, only 2 left!

0

7

Echo 10001306210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

9

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 7

0

10

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

In Stock, only 1 left!

0

11

Echo 10020408261

CRANKCASE KIT

Note: Includes ITEMS 12-16

$233.99

$

Usually ships in 2-4 days

0

12

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

13

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

14

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

15

Echo 10024210721

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.49

$

In Stock, only 2 left!

0

16

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 8

0
