PB-601 - Echo Backpack Blower Carburetor -- C1M-K49B S/N: 506001 - 999999 Parts Diagram

Backpack Blower

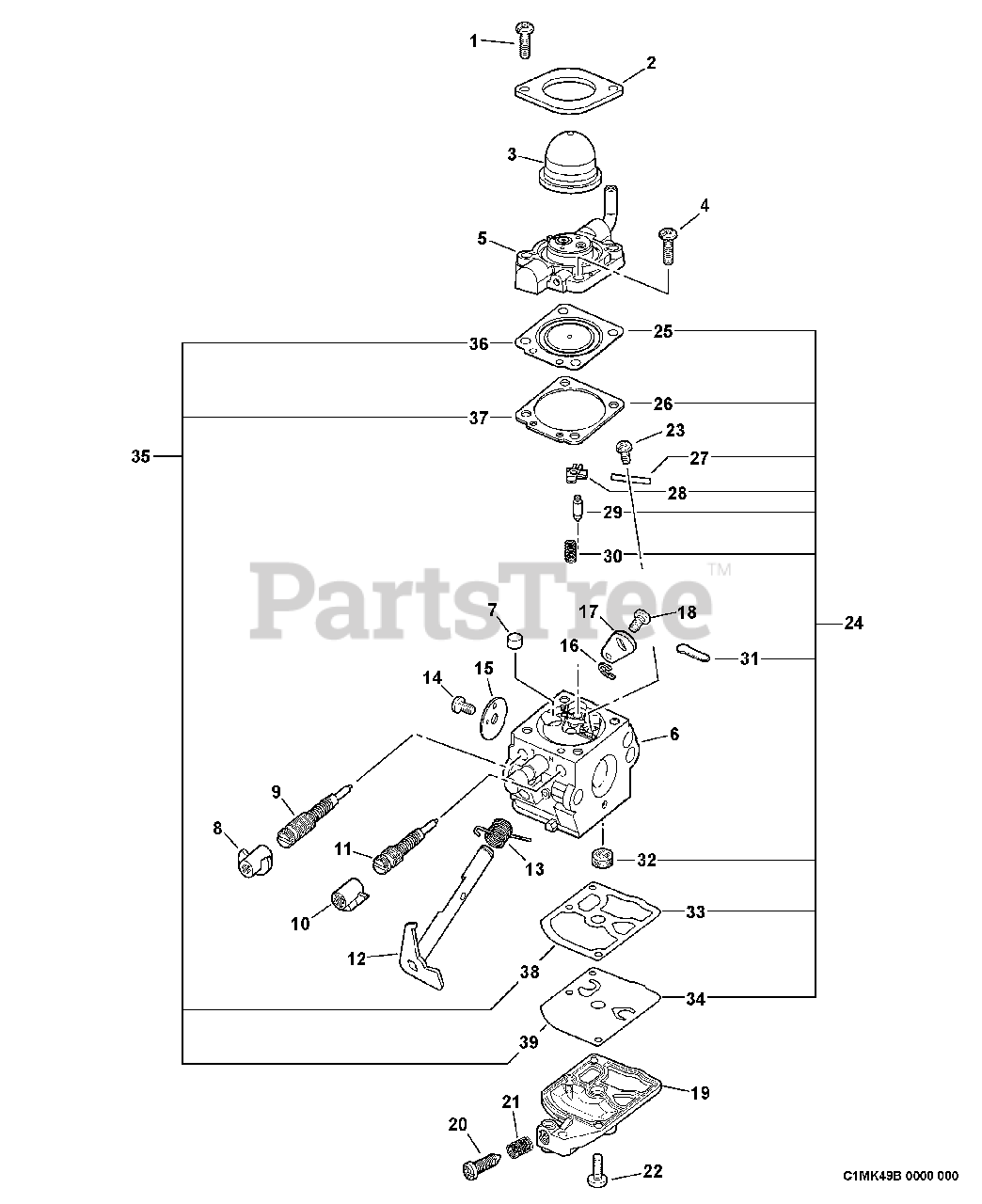

Carburetor -- C1M-K49B S/N: 506001 - 999999 Parts Diagram

  • Title

Echo 12520008663

CARBURETOR C1M-K49B
(Superseded to 12520008664)

Note: Includes ITEMS 1-39

$68.99

$

In Stock, Qty 14

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308560

RETAINER, PURGE BULB

$1.99

$

In Stock, only 1 left!

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

5

Echo 12538308360

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

6

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

7

Echo 12537608660

NOZZLE, CHECK VALVE

$4.99

$

Usually ships in 2-4 days

0

8

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

9

Echo P005000460

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

10

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

11

Echo P005000470

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

12

Echo 12531708360

SHAFT, THROTTLE
(Superseded to P005002040)

$5.99

$

Usually ships in 2-4 days

0

13

Echo 12531308360

SPRING, TRIGGER

$1.49

$

In Stock, only 4 left!

0

14

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531613930

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

17

Echo 12535008360

LEVER, THROTTLE

$2.99

$

In Stock, only 3 left!

0

18

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

19

Echo 12532408360

COVER, FUEL PUMP

$7.49

$

Usually ships in 2-4 days

0

20

Echo 12534408560

SCREW, IDLE ADJUST

$3.99

$

Usually ships in 2-4 days

0

21

Echo 12533308560

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 9

0

22

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

23

Echo 12533913930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 4 left!

0

24

Echo 12530008360

REPAIR KIT

Note: Includes ITEMS 25-34

$17.99

$

Usually ships in 2-4 days

0

25

------------------

DIAPHRAGM, METERING

$

$

Not available

26

------------------

GASKET, DIAPHRAGM

$

$

Not available

27

------------------

PIN, METERING LEVER

$

$

Not available

28

------------------

LEVER, METERING

$

$

Not available

29

------------------

VALVE, INLET NEEDLE

$

$

Not available

30

------------------

SPRING, METERING LEVER

$

$

Not available

31

------------------

PLUG, WELCH

$

$

Not available

32

------------------

STRAINER

$

$

Not available

33

------------------

GASKET, PUMP

$

$

Not available

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

Echo 12530308360

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 36-39

$9.49

$

In Stock, only 1 left!

0

36

------------------

DIAPHRAGM, METERING

$

$

Not available

37

------------------

GASKET, DIAPHRAGM

$

$

Not available

38

------------------

GASKET, PUMP

$

$

Not available

39

------------------

DIAPHRAGM, PUMP

$

$

Not available
