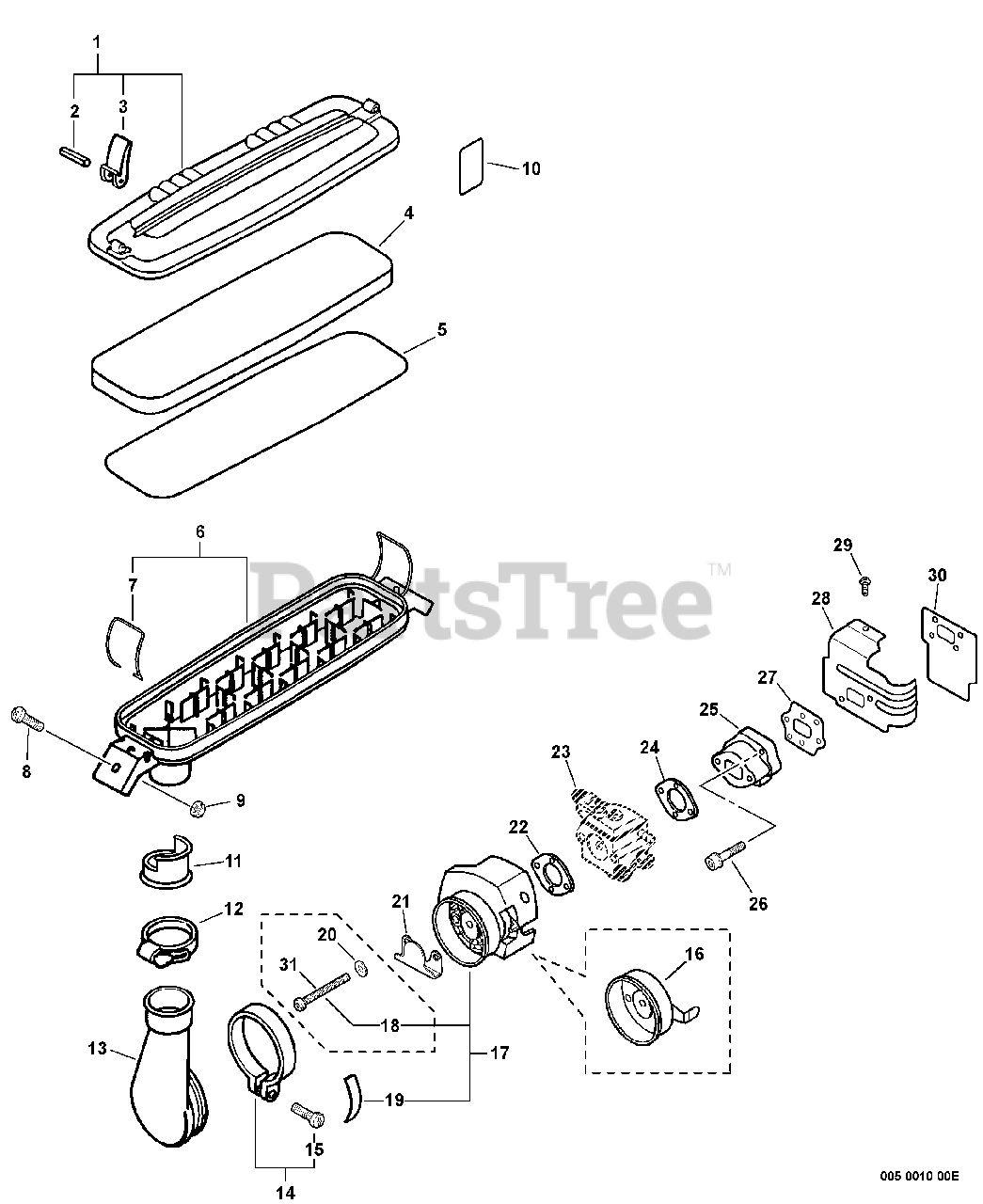

PB-6000 - Echo Backpack Blower (Type 1E) Intake S/N: 001001 - 017550 Parts Diagram

Backpack Blower (Type 1E)

Intake S/N: 001001 - 017550 Parts Diagram

  • Title

1

Echo 13030808260

AIR FILTER COVER ASSY

Note: Includes ITEMS 2-3

$9.49

$

Usually ships in 2-4 days

0

2

Echo 90034530025

PIN - SPRING -- 3X25

$1.99

$

In Stock, only 2 left!

0

3

Echo 13034108260

LATCH

$4.49

$

In Stock, only 2 left!

0

4

Echo 13031008260

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

5

Echo 13031708360

FILTER, AIR - FOAM

$12.99

$

In Stock, only 1 left!

0

6

Echo 13030708260

AIR FILTER CASE ASSY

Note: Includes ITEM 7

$23.99

$

Usually ships in 2-4 days

0

7

Echo 13103208260

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

8

Echo 9154005014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

9

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

10

Echo 89018708360

TIE, CABLE - LARGE

$6.99

$

Usually ships in 2-4 days

0

11

Echo 17807608360

COLLAR

$2.99

$

In Stock, Qty 7

0

12

Echo 13071508260

CLAMP, HOSE

$1.99

$

In Stock, only 2 left!

0

13

Echo 13071108260

ADAPTOR, INTAKE

$22.99

$

In Stock, only 2 left!

0

14

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 15

$7.49

$

In Stock, Qty 10

0

15

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

16

------------------

BRACKET, AIR CLEANER - METAL

Note: Replaced by ITEM 17

$

$

Not available

17

Echo A221000000

BRACKET KIT - PLASTIC

Note: Includes ITEMS 18-19

$10.99

$

In Stock, only 1 left!

0

18

Echo 90024205057

SCREW - 5X57

Note: For Metal Air Cleaner Bracket, Use ITEMS 31 & 20

$0.99

$

In Stock, Qty 5

0

19

Echo 89015808261

LABEL - CHOKE

Note: For Plastic Air Cleaner Bracket ONLY

$2.49

$

Usually ships in 2-4 days

0

20

Echo 90060300006

WASHER - 6

Note: Not Used When Replacing With ITEM 17

$0.99

$

In Stock, Qty 20+

0

21

Echo A244000020

PLATE, PREVENT

$2.99

$

In Stock, only 1 left!

0

22

Echo 13001603731

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

23

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

24

Echo 13001606434

GASKET, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

25

Echo 13000708261

INSULATOR, INTAKE

$10.99

$

In Stock, only 2 left!

0

26

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

27

Echo V103000000

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

28

Echo 10151408260

COVER, CYLINDER - INTAKE

$19.99

$

Usually ships in 2-4 days

0

29

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

30

Echo 13001606211

SHIELD, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

31

Echo 90022005050

SCREW - 5X55

Note: For Metal Air Cleaner Bracket ONLY

$0.99

$

Usually ships in 2-4 days

0
