PB-580 T - Echo Backpack Blower (SN: P55515001001 - P55515999999) Throttle Control - Tube Mount Parts Diagram

Backpack Blower

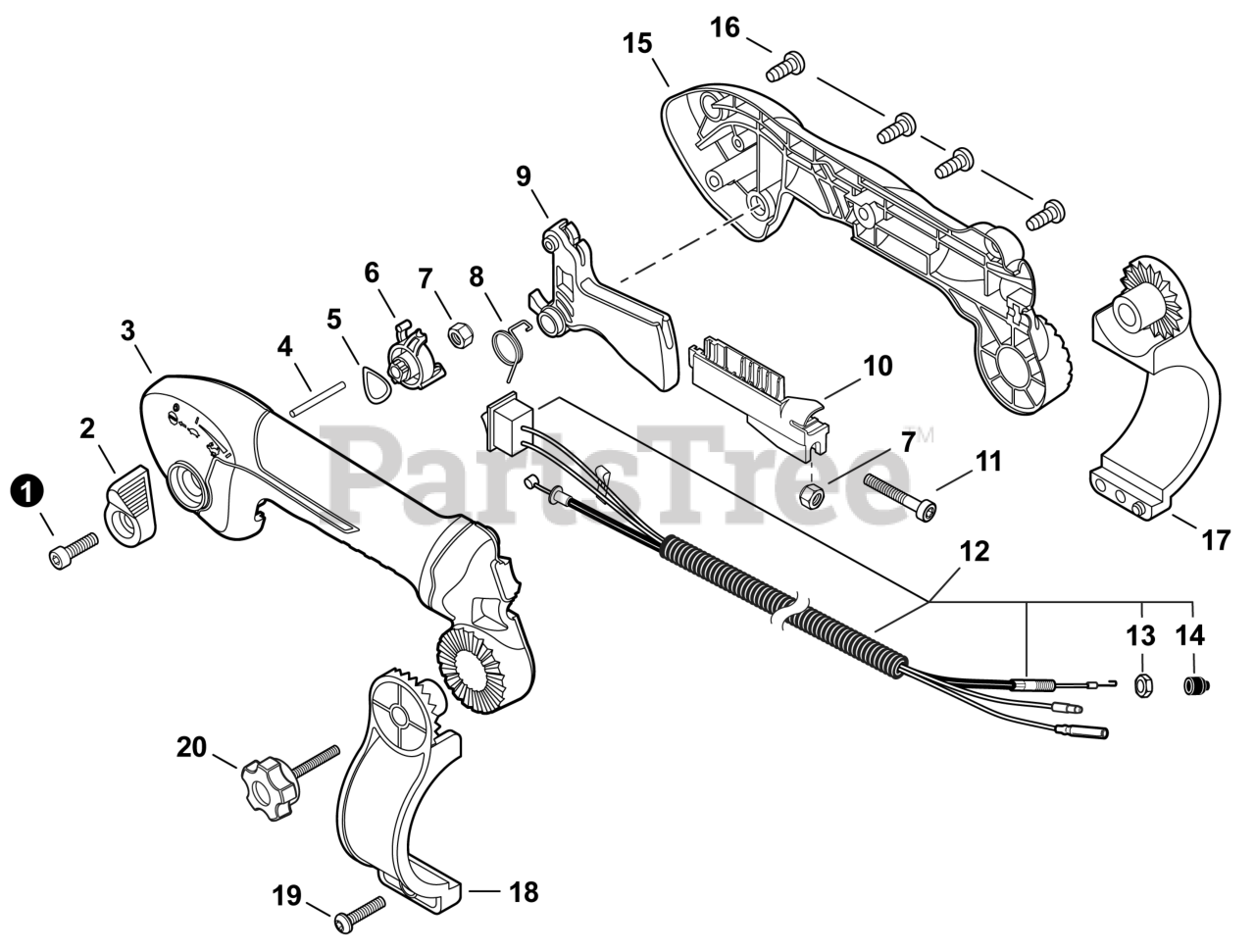

Throttle Control - Tube Mount Parts Diagram

  • Title

1

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

2

Echo C453000560

LEVER, THROTTLE

$6.99

$

In Stock, Qty 5

0

3

Echo C400001532

GRIP, HANDLE - LEFT

$3.49

$

Usually ships in 2-4 days

0

4

Echo V621000040

PIN 3x32

$1.49

$

In Stock, Qty 6

0

5

Echo 42975201850

WASHER, WAVE 12

$1.99

$

In Stock, Qty 13

0

6

Echo C453000580

CONTROL, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

7

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

8

Echo V452001630

SPRING, TORSION

$1.49

$

In Stock, only 4 left!

0

9

Echo C450001140

TRIGGER, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

10

Echo C482000101

CONNECTOR, CABLE

$4.49

$

In Stock, only 1 left!

0

11

Echo V805000050

BOLT, TORX 5x30

$0.99

$

In Stock, Qty 20+

0

12

Echo V043001191

CABLE ASSY, CONTROL

Note: Includes items 13-14

$31.99

$

In Stock, Qty 9

0

13

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

14

Echo V494000080

CAP, DUST

$1.99

$

Usually ships in 2-4 days

0

15

Echo C400001541

GRIP, HANDLE - RIGHT

$3.99

$

Usually ships in 2-4 days

0

16

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

17

Echo C405000241

BRACKET, HANDLE - RIGHT

$3.49

$

In Stock, Qty 20+

0

18

Echo C405000231

BRACKET, HANDLE - LEFT

$4.49

$

In Stock, Qty 20+

0

19

Echo V805000010

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

20

Echo V299000630

KNOB, SCREW

$4.49

$

In Stock, Qty 20+

0
