PB-580 T - Echo Backpack Blower (SN: P44112001001 - P44112999999) Throttle Control - Tube Mount Parts Diagram

Backpack Blower

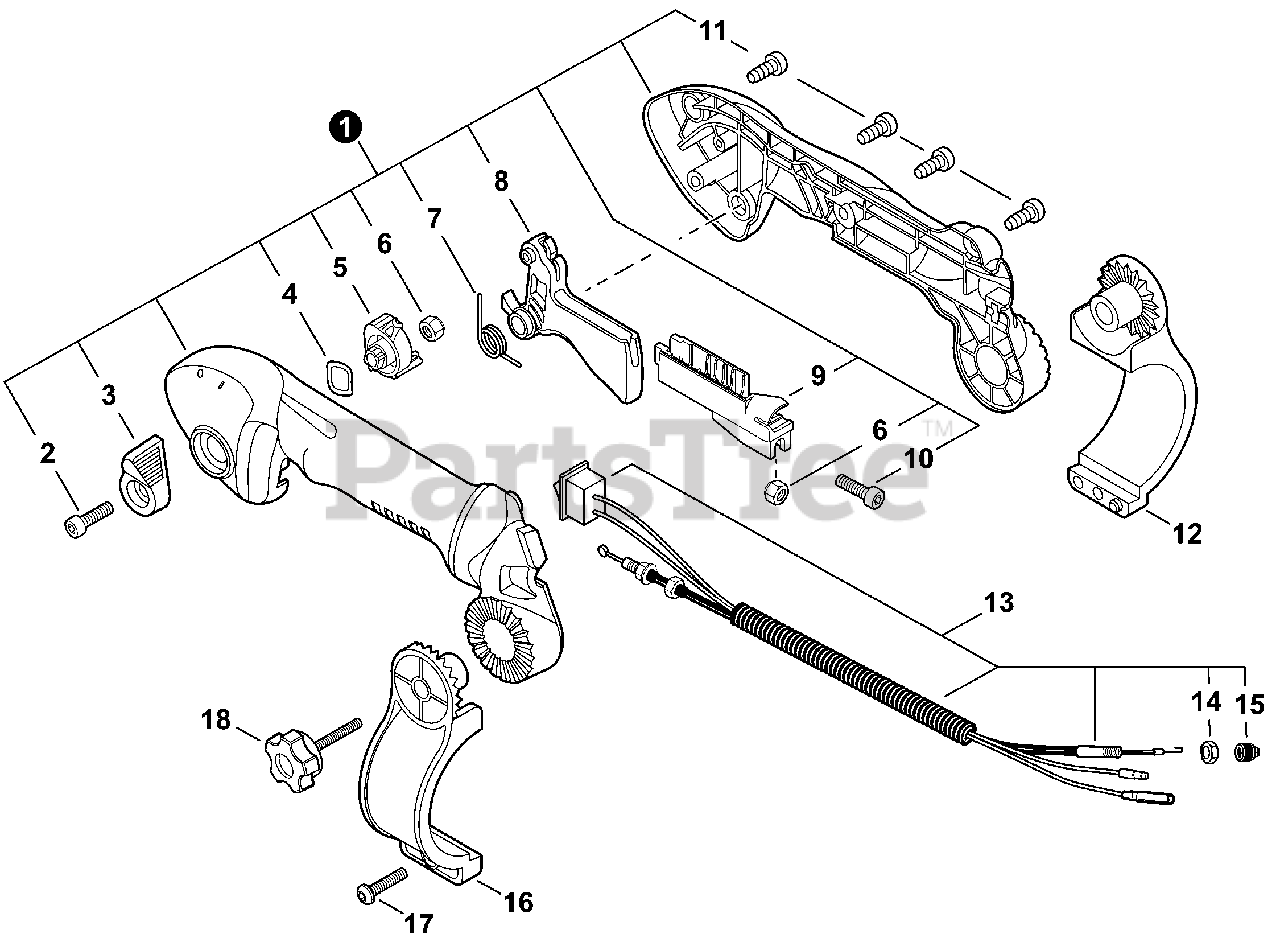

Throttle Control - Tube Mount Parts Diagram

  • Title

1

Echo P021048200

THROTTLE CONTROL KIT - TUBE MOUNT
(Superseded to P021049300)

Note: Includes items 2-11

$44.99

$

In Stock, Qty 14

0

2

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

3

Echo C453000560

LEVER, THROTTLE

$6.99

$

In Stock, only 2 left!

0

4

Echo 42975201850

WASHER, WAVE 12

$1.99

$

In Stock, only 1 left!

0

5

Echo C453000550

CONTROL, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

6

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

7

Echo V452001610

SPRING, TORSION

$1.49

$

In Stock, Qty 7

0

8

Echo C450000920

TRIGGER, THROTTLE
(Superseded to C450000921)

$1.49

$

In Stock, only 4 left!

0

9

Echo C482000100

CONNECTOR, CABLE
(Superseded to C482000101)

$4.49

$

In Stock, only 1 left!

0

10

Echo V805000050

BOLT, TORX 5×30

$0.99

$

In Stock, Qty 20+

0

11

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo C405000240

BRACKET, HANDLE - RIGHT
(Superseded to C405000241)

$3.49

$

In Stock, only 2 left!

0

13

Echo V043001060

CABLE ASSY, CONTROL
(Superseded to 91202)

Note: Includes items 14-15

$44.99

$

In Stock, Qty 14

0

14

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

15

Echo 17808208260

CAP, DUST

$3.49

$

In Stock, only 2 left!

0

16

Echo C405000230

BRACKET, HANDLE - LEFT
(Superseded to C405000231)

$4.49

$

In Stock, Qty 9

0

17

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

18

Echo 30581208260

KNOB, SCREW M6×50MM
(Superseded to V299000630)

$4.49

$

In Stock, Qty 15

0
