PB-580 T - Echo Backpack Blower (SN: P44112001001 - P44112999999) Recoil Starter Parts Diagram

Backpack Blower

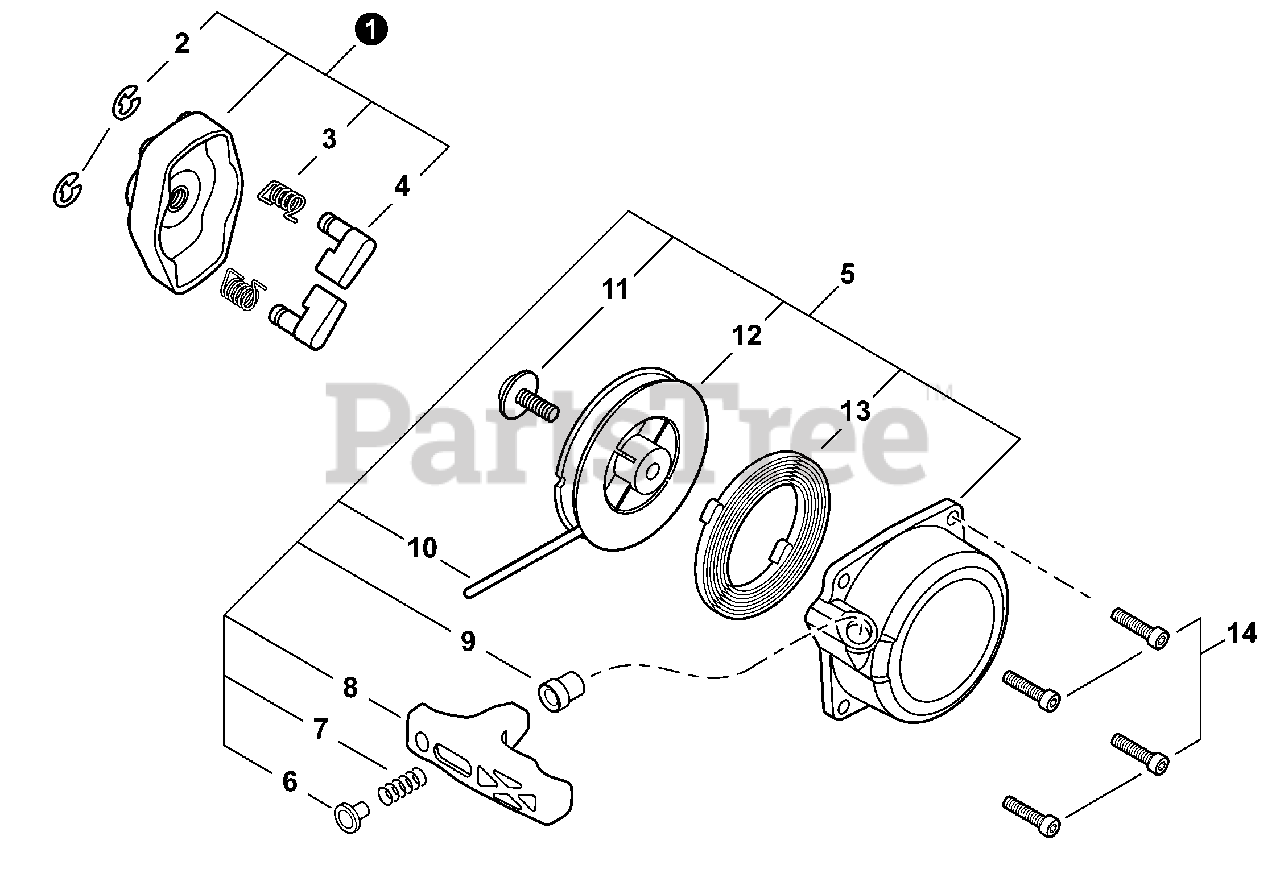

Recoil Starter Parts Diagram

  • Title
1

Echo A052000490

PULLEY ASSY, STARTER
(Superseded to A050000340)

Note: Includes items 2-4

$31.99

$

In Stock, Qty 6

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

4

Echo P022036620

PAWL, STARTER

$5.99

$

In Stock, only 1 left!

0

5

Echo A051002980

STARTER ASSY, RECOIL
(Superseded to A050000340)

Note: Includes items 6-13

$31.99

$

In Stock, Qty 6

0

6

Echo V376001400

RETAINER, ROPE

$2.49

$

In Stock, Qty 5

0

7

Echo V450001170

SPRING, COMPRESSION

$2.99

$

In Stock, only 3 left!

0

8

Echo P022036780

GRIP, STARTER

$11.99

$

In Stock, only 1 left!

0

9

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

10

$7.49

$

Usually ships in 2-4 days

0

11

$3.49

$

In Stock, only 1 left!

0

12

Echo P022036630

REEL, ROPE

$17.99

$

In Stock, Qty 14

0

13

Echo P022036640

SPRING, SPIRAL

$12.99

$

In Stock, only 4 left!

0

14

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0
