PB-580 H - Echo Backpack Blower (SN: P48013001001 - P48013999999) Fuel System Parts Diagram

Backpack Blower

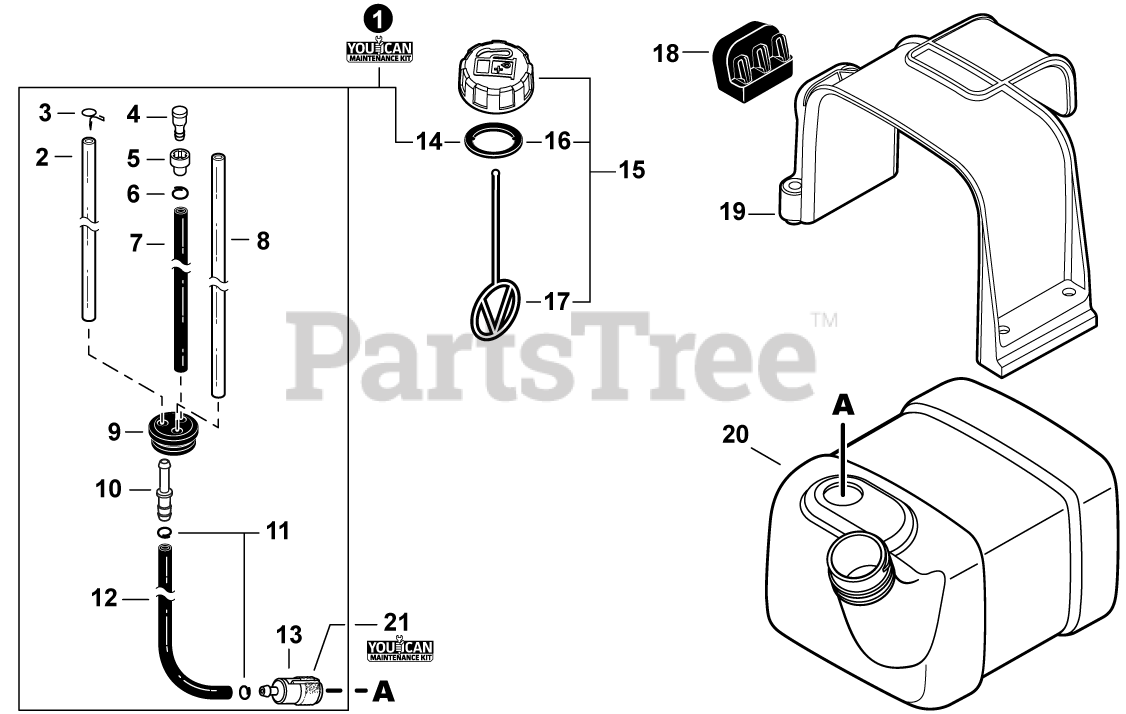

Fuel System Parts Diagram

  • Title

1

Echo 90158Y

FUEL SYSTEM KIT - YOUCAN

Note: Includes items 2-14

$35.99

$

In Stock, Qty 5

0

2

Echo V471005720

PIPE, FUEL 3.5x6x205 CLEAR

$7.49

$

In Stock, only 1 left!

0

3

Echo V490000510

CLIP, SPRING 5.2

$0.99

$

In Stock, only 1 left!

0

4

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

5

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

6

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo V471004781

PIPE, FUEL 3x6x40 BLACK

$1.49

$

In Stock, Qty 6

0

8

Echo V471004760

PIPE, FUEL 3x6x180 YELLOW

$5.49

$

In Stock, only 1 left!

0

9

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 16

0

10

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

11

Echo V490001240

CLIP 6

$0.99

$

Usually ships in 2-4 days

0

12

Echo V471000601

PIPE, FUEL 3x5x120 BLACK

$0.99

$

In Stock, only 2 left!

0

13

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo P021040030

CAP ASSY, FUEL

Note: Includes items 16-17

$5.99

$

In Stock, Qty 20+

0

16

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

17

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

18

Echo V420004620

CUSHION

$4.99

$

Usually ships in 2-4 days

0

19

Echo A392000390

RETAINER, FUEL TANK

$15.99

$

In Stock, only 1 left!

0

20

Echo A350002531

TANK, FUEL

$22.99

$

In Stock, only 2 left!

0

21

Echo 90156Y

TUNE-UP KIT - YOUCANT

$25.99

$

In Stock, Qty 19

0
