PB-500 T - Echo Backpack Blower (SN: P02212001001 - P02212999999) Fuel System Parts Diagram

Backpack Blower

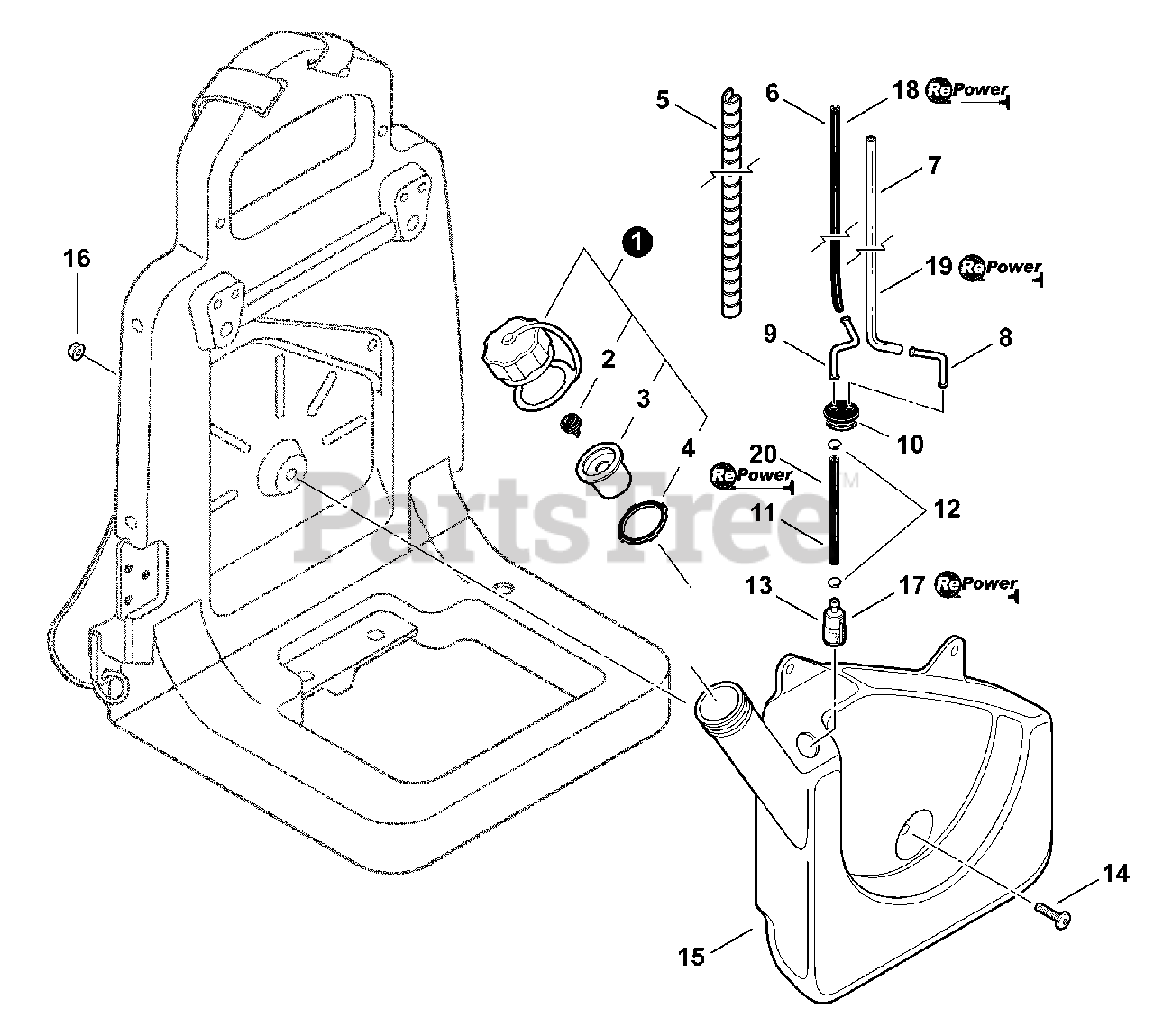

Fuel System Parts Diagram

  • Title

1

Echo 13160009861

CAP ASSY
(Superseded to P100006490)

Note: Includes Items 2-4

$11.99

$

In Stock, Qty 6

0

2

Echo 13131406320

VENT

$5.49

$

In Stock, only 4 left!

0

3

Echo A358000000

VENT HOLDER ASSY
(Superseded to Discontinued)

$

$

Not available

4

Echo 13101621060

GASKET, CAP
(Superseded to 13101621061)

$2.99

$

Usually ships in 2-4 days

0

5

Echo V475004110

WRAP, SPIRAL
(Superseded to Discontinued)

$

$

Not available

6

Echo V471002150

PIPE, FUEL - 3×7×465

$2.99

$

In Stock, only 3 left!

0

7

Echo V471002160

PIPE - 2×4×470 -- CLEAR

$3.99

$

Usually ships in 2-4 days

0

8

Echo 13202108260

CONNECTOR, PIPE

$3.99

$

In Stock, only 1 left!

0

9

Echo 13201108260

CONNECTOR, PIPE

$3.99

$

In Stock, Qty 6

0

10

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$2.99

$

Usually ships in 2-4 days

0

11

Echo V471000770

PIPE - 3×6×280 -- BLACK
(Superseded to V471000771)

$3.99

$

In Stock, Qty 20+

0

12

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

14

Echo 90020905020

SCREW - 5×20
(Superseded to Discontinued)

$

$

Not available

15

Echo A350000711

TANK, FUEL

$42.99

$

In Stock, only 1 left!

0

16

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90151

RePower TUNE-UP KIT
(Superseded to 90156)

$25.99

$

In Stock, Qty 17

0

18

Echo 90016

PIPE - 25 FT BULK 3×7mm

$51.99

$

In Stock, only 1 left!

0

19

Echo 90018

PIPE - 25 FT BULK 2×4mm CLEAR

$30.99

$

In Stock, only 1 left!

0

20

Echo 90015

PIPE - 25 FT BULK 3×6mm BLACK

$40.99

$

In Stock, only 4 left!

0
