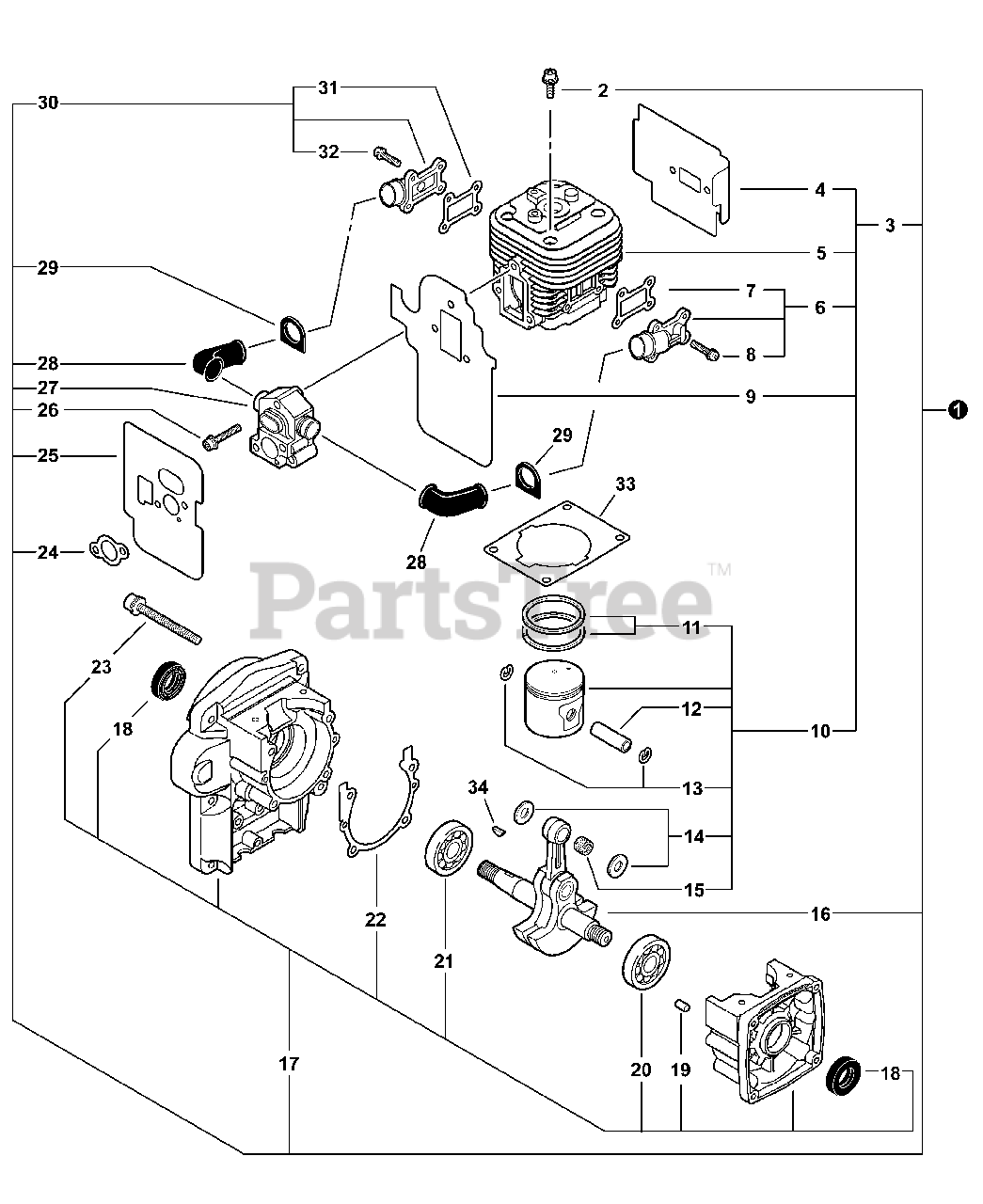

PB-500 H - Echo Backpack Blower (SN: P33011001001 - P33011999999) Engine S/N: P33011010001-P33011999999 Parts Diagram

Backpack Blower

Engine S/N: P33011010001-P33011999999 Parts Diagram

  • Title
1

Echo SB1111

SHORT BLOCK -- SB1111

Note: Includes Items 2-34

$308.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5×22

$0.99

$

In Stock, Qty 20+

0

3

Echo P021045850

CYLINDER/PISTON KIT

Note: Includes Items 4-15

$214.99

$

Usually ships in 2-4 days

0

4

Echo V104000900

SHIELD, EXHAUST

$8.99

$

In Stock, only 1 left!

0

5

Echo A130002170

CYLINDER

$148.99

$

Usually ships in 2-4 days

0

6

Echo P021016140

REED VALVE KIT - OUTER
(Superseded to P021016141)

Note: Includes Items 7-8

$26.99

$

Usually ships in 2-4 days

0

7

Echo V103000440

GASKET, INTAKE

$2.99

$

In Stock, only 3 left!

0

8

Echo V202000140

SCREW - 4

$0.99

$

Usually ships in 2-4 days

0

9

Echo V103000450

GASKET, INTAKE

$5.49

$

In Stock, only 1 left!

0

10

Echo P021045170

PISTON KIT

Note: Includes Items 11-15

$68.99

$

In Stock, only 3 left!

0

11

Echo A101000660

RING, PISTON

$5.99

$

Usually ships in 2-4 days

0

12

Echo 10001339730

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

13

Echo V580000010

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

14

Echo V307000050

WASHER - 10

$4.99

$

In Stock, only 3 left!

0

15

Echo V555000010

BEARING, NEEDLE - 10

$10.99

$

In Stock, only 4 left!

0

16

Echo A011000530

CRANKSHAFT ASSY

$215.99

$

Usually ships in 2-4 days

0

17

Echo P021014980

CRANKCASE KIT

Note: Includes Items 18-23

$216.99

$

Usually ships in 2-4 days

0

18

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

19

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

20

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 5

0

21

Echo 9400036302

BEARING, BALL - 6302C3

$14.99

$

Usually ships in 2-4 days

0

22

Echo V102000050

GASKET, CRANKCASE

$1.99

$

In Stock, only 3 left!

0

23

Echo 90016205040

SCREW - 5×40

$1.49

$

In Stock, Qty 8

0

24

Echo V103000471

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

25

Echo V103000461

SHIELD, INTAKE

$5.49

$

In Stock, Qty 7

0

26

Echo V203000310

SCREW - 5×35

$1.49

$

In Stock, only 4 left!

0

27

Echo P021014991

VALVE ASSY

$32.99

$

In Stock, only 4 left!

0

28

Echo G213000090

HOSE, AIR

$9.99

$

In Stock, only 1 left!

0

29

Echo V140000020

GROMMET

$0.99

$

In Stock, Qty 6

0

30

Echo P021016130

REED VALVE KIT - INNER
(Superseded to P021016131)

Note: Includes Items 31-32

$25.99

$

In Stock, only 2 left!

0

31

Echo V103000440

GASKET, INTAKE

$2.99

$

In Stock, only 3 left!

0

32

Echo V202000140

SCREW - 4

$0.99

$

Usually ships in 2-4 days

0

33

Echo V100000260

GASKET, CYLINDER

$4.99

$

In Stock, Qty 12

0

34

Echo 90032303014

KEY - 3×14

$1.49

$

In Stock, only 3 left!

0
