PB-500 H - Echo Backpack Blower (SN: P31312001001 - P31312999999) Hip Mount Throttle Control Parts Diagram

Backpack Blower

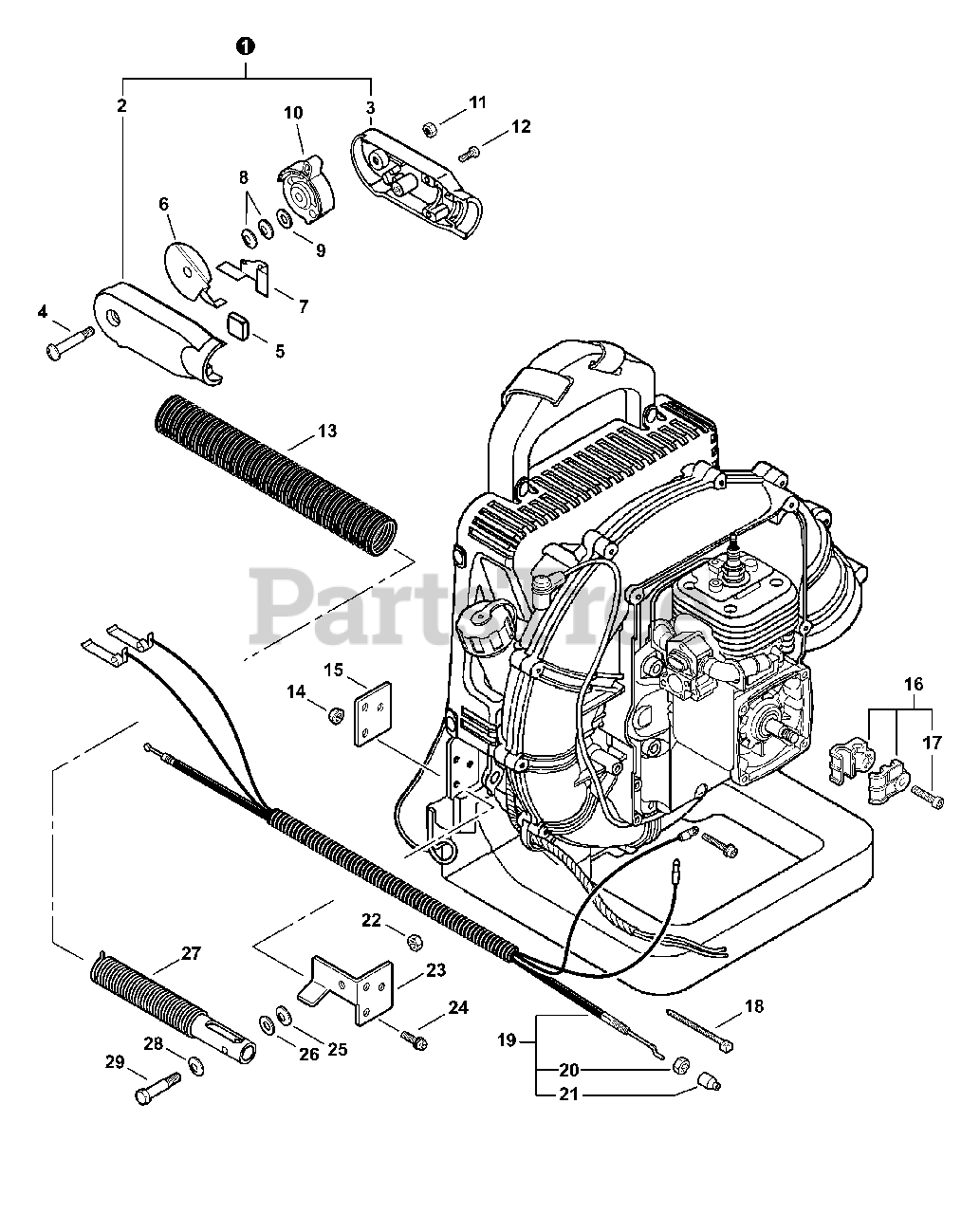

Hip Mount Throttle Control Parts Diagram

  • Title

1

Echo P021003010

CONTROL HANDLE ASSY

Note: Includes Items 2-3

$5.99

$

In Stock, only 4 left!

0

2

Echo C471000050

HANDLE, CONTROL - LEFT

$2.99

$

Usually ships in 2-4 days

0

3

Echo C471000060

HANDLE, CONTROL - RIGHT

$2.99

$

Usually ships in 2-4 days

0

4

Echo 60403021060

SCREW - 4

$1.99

$

In Stock, Qty 5

0

5

Echo 10429321060

PAD, FOAM

$4.49

$

Usually ships in 2-4 days

0

6

Echo V486000140

TERMINAL - GROUND

$4.49

$

Usually ships in 2-4 days

0

7

Echo V486000130

TERMINAL - GROUND

$4.49

$

Usually ships in 2-4 days

0

8

Echo 17816021060

WASHER - SPRING

$0.99

$

In Stock, only 4 left!

0

9

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo C453000021

LEVER, THROTTLE CONTROL

$2.99

$

In Stock, Qty 8

0

11

Echo 90056000004

LOCKNUT - 4

$0.99

$

In Stock, Qty 20+

0

12

Echo 88995021060

SCREW - 5×20

$0.99

$

In Stock, Qty 20+

0

13

Echo V475000910

TUBE

$0.99

$

In Stock, Qty 6

0

14

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

15

Echo C625000010

PLATE

$1.99

$

In Stock, only 2 left!

0

16

Echo P021015010

CABLE BRACKET KIT

Note: Includes Item 17

$15.99

$

Usually ships in 2-4 days

0

17

Echo 9114505025

SCREW - 5×25 -- TAPPING

$0.99

$

In Stock, Qty 6

0

18

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0

19

Echo V043000240

CONTROL CABLE ASSY

Note: Includes Items 20-21

$16.99

$

In Stock, only 1 left!

0

20

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 17808208260

CAP, DUST

$3.49

$

In Stock, only 2 left!

0

22

Echo 90003010008

LOCKNUT - 1/4"

$0.99

$

In Stock, Qty 9

0

23

Echo C625000000

BRACKET

$4.99

$

In Stock, only 1 left!

0

24

Echo 90023805018

SCREW - 5×18

$0.99

$

In Stock, Qty 20+

0

25

Echo 17812921060

WASHER - SPRING

$2.49

$

In Stock, only 1 left!

0

26

Echo 69402921060

WASHER - 8

$0.99

$

In Stock, only 1 left!

0

27

Echo V475000920

TUBE, SPRING

$21.99

$

Usually ships in 2-4 days

0

28

Echo 70101721061

WASHER - SPRING

$0.99

$

In Stock, Qty 8

0

29

Echo 43261721060

BOLT - 6

$1.99

$

In Stock, only 2 left!

0
