PB-500 H - Echo Backpack Blower (SN: P01913001001 - P01913999999) Starter Parts Diagram

Backpack Blower

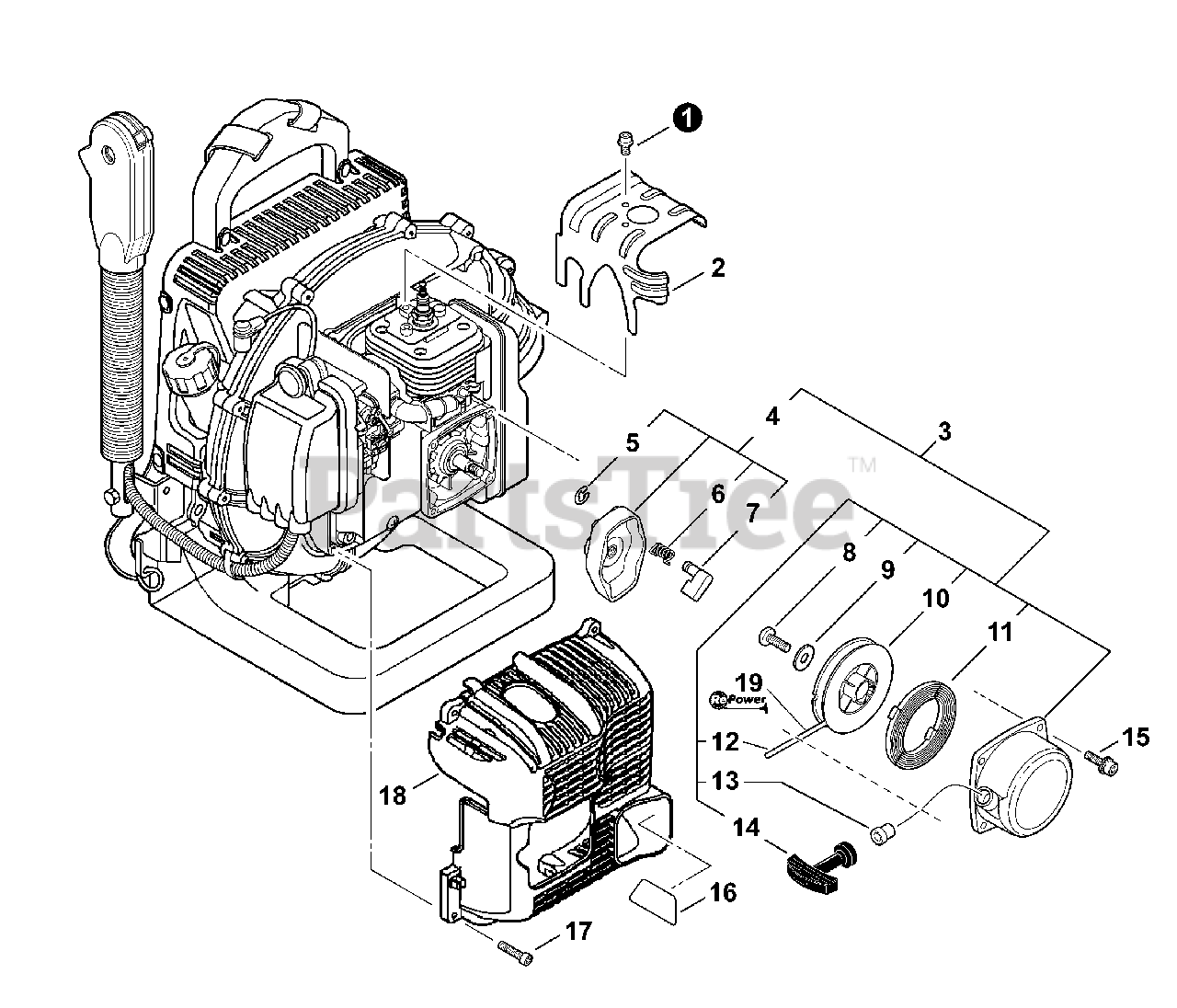

Starter Parts Diagram

  • Title

1

Echo 90010605008

SCREW - 5×8

$0.99

$

In Stock, Qty 20+

0

2

Echo A160001041

SHIELD, CYLINDER

$9.49

$

Usually ships in 2-4 days

0

3

Echo A050000330

STARTER ASSY

Note: Includes Items 4-14

$48.99

$

In Stock, only 1 left!

0

4

Echo 17720206210

STARTER PAWL ASSY
(Superseded to A052000470)

Note: Includes Items 5-7

$5.99

$

In Stock, Qty 20+

0

5

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 6

0

6

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

7

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

8

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

9

Echo P022022280

WASHER

$0.99

$

In Stock, Qty 6

0

10

Echo 17721511120

REEL, ROPE

$19.99

$

In Stock, Qty 8

0

11

Echo 17722011120

SPRING, REWIND

$17.99

$

In Stock, only 4 left!

0

12

Echo 17722611120

ROPE, STARTER - 4×1110

$5.99

$

In Stock, Qty 14

0

13

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

14

Echo 17722801110

GRIP, STARTER

$7.49

$

Usually ships in 2-4 days

0

15

Echo 90016205018

SCREW - 5×18

$0.99

$

In Stock, Qty 9

0

16

Echo A209000450

DEFLECTOR, HEAT

$2.99

$

Usually ships in 2-4 days

0

17

Echo 9114505020

SCREW - 5×20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

18

Echo A190000721

COVER, ENGINE

$18.99

$

Usually ships in 2-4 days

0

19

Echo 99944440000

ROPE, STARTER - REPOWER BULK

$29.99

$

In Stock, Qty 8

0
