PB-500 - Echo Backpack Blower (SN: P02837002001 - P02837999999) Fuel Tank Parts Diagram

Backpack Blower

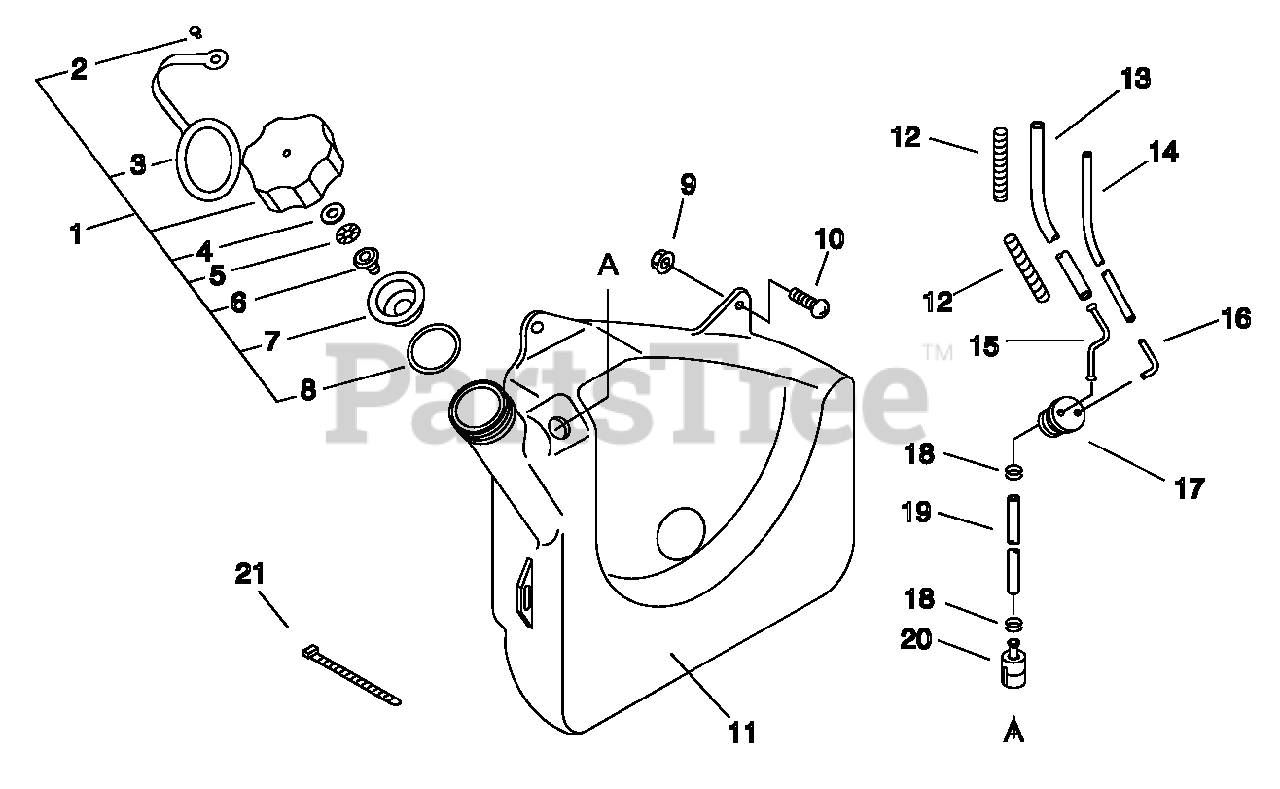

Fuel Tank Parts Diagram

  • Title

1

Echo 13160009861

CAP ASSY
(Superseded to P100006490)

$11.99

$

In Stock, Qty 6

0

2

Echo 90031930070

RIVET

$

$

Currently unavailable

3

Echo 13105127230

CONNECTOR, CAP
(Superseded to Discontinued)

$

$

Not available

4

Echo 90060000003

WASHER - 3

$0.99

$

Usually ships in 2-4 days

0

5

Echo 13105303060

NUT

$0.99

$

Usually ships in 2-4 days

0

6

Echo 13131406320

VENT

$5.49

$

In Stock, only 4 left!

0

7

Echo A358000000

VENT HOLDER ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 13101621060

GASKET, CAP
(Superseded to 13101621061)

$2.99

$

Usually ships in 2-4 days

0

9

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

10

Echo 90020905020

SCREW - 5X20
(Superseded to Discontinued)

$

$

Not available

11

Echo 13101008266

TANK, FUEL
(Superseded to A350000711)

$42.99

$

In Stock, only 1 left!

0

12

Echo V475004110

TUBE
(Superseded to Discontinued)

$

$

Not available

13

Echo V471002150

PIPE, FUEL - 3X7X465

$2.99

$

In Stock, only 3 left!

0

14

Echo V471002160

PIPE - 2X4X470 -- CLEAR

$3.99

$

Usually ships in 2-4 days

0

15

Echo 13201108260

CONNECTOR, PIPE

$3.99

$

In Stock, Qty 6

0

16

Echo 13202108260

CONNECTOR, PIPE

$3.99

$

In Stock, only 1 left!

0

17

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 13201326630

CLIP - 6.5
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

19

Echo V471000770

PIPE - 3X6X280 -- BLACK
(Superseded to V471000771)

$3.99

$

In Stock, Qty 20+

0

20

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

21

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0
