PB-461 LN - Echo Backpack Blower (SN: 09001001 - 09999999) Backpack Frame, Harness Parts Diagram

Backpack Blower

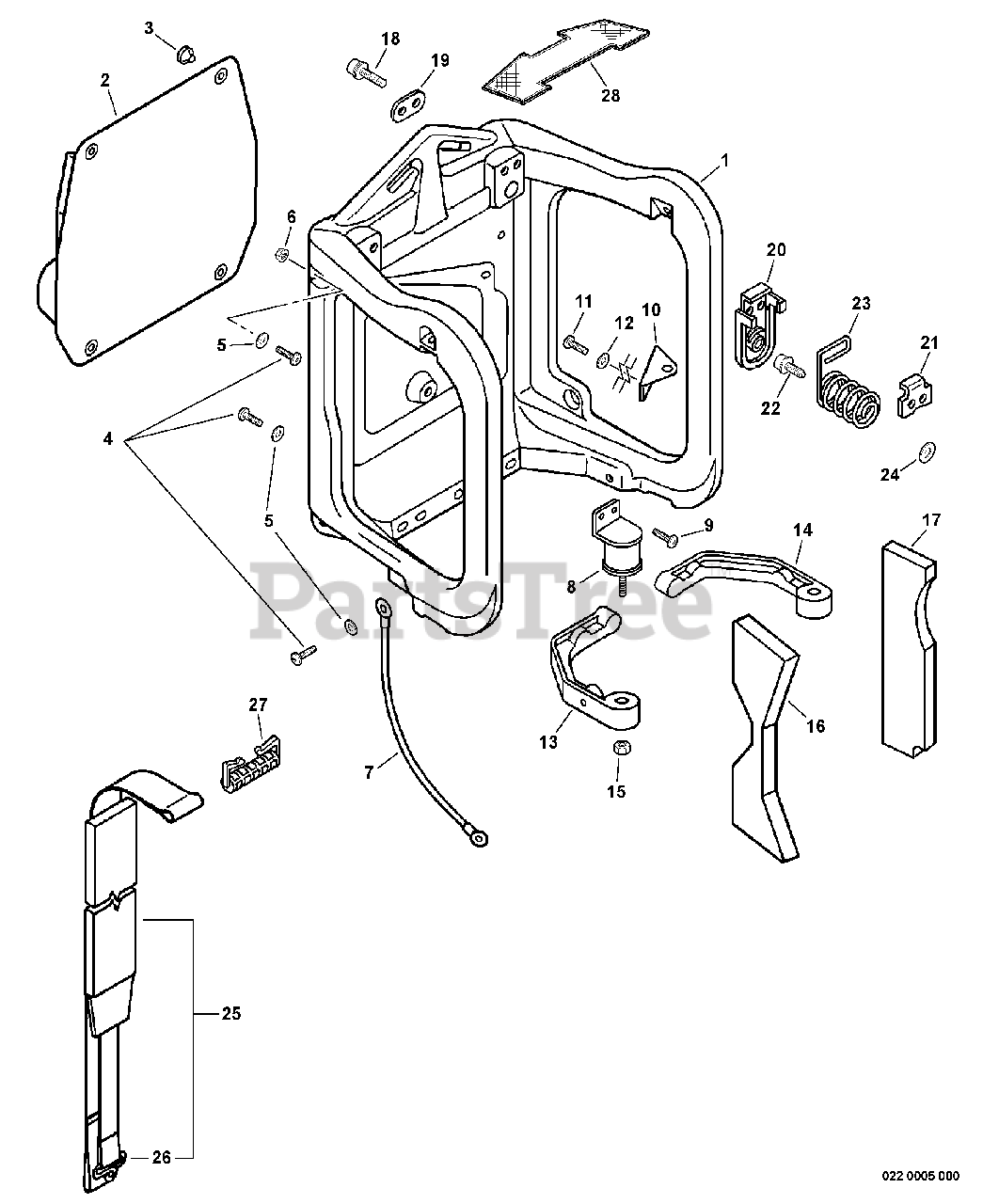

Backpack Frame, Harness Parts Diagram

  • Title
1

Echo 30001008362

FRAME, BACKPACK

$64.99

$

Usually ships in 2-4 days

0

2

Echo 30010508261

CUSHION, BACKPACK

$18.99

$

In Stock, Qty 5

0

$0.99

$

In Stock, Qty 15

0

4

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

7

Echo 16200721260

LEAD - GROUND

$1.49

$

In Stock, only 4 left!

0

8

Echo V401000100

CUSHION

$8.49

$

In Stock, only 1 left!

0

9

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, Qty 11

0

10

Echo 30061408260

BRACKET, HANGER
(Superseded to Discontinued)

$

$

Not available

11

Echo 9154005014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

12

$0.99

$

In Stock, Qty 20+

0

13

Echo C622000020

CONNECTOR, FRAME - LEFT

$1.49

$

Usually ships in 2-4 days

0

14

Echo C622000030

CONNECTOR, FRAME - RIGHT

$1.49

$

Usually ships in 2-4 days

0

15

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

16

Echo 70116021260

PAD, FOAM - LEFT

$14.99

$

Usually ships in 2-4 days

0

17

Echo 70116121260

PAD, FOAM - RIGHT

$8.49

$

Usually ships in 2-4 days

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

$0.99

$

In Stock, only 4 left!

0

20

Echo V456000010

BRACKET, SPRING

$0.99

$

In Stock, Qty 5

0

21

Echo V263000050

RETAINER

$1.49

$

In Stock, only 3 left!

0

22

Echo 9114705020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

23

$3.99

$

In Stock, only 4 left!

0

24

Echo 61301907350

WASHER - 5

$0.99

$

In Stock, Qty 10

0

25

Echo C061000111

BACKPACK STRAP ASSY

Note: Includes ITEM 26

$15.99

$

In Stock, Qty 20+

0

$0.99

$

In Stock, Qty 14

0

27

Echo V491000040

RETAINER, HARNESS

$1.49

$

In Stock, Qty 20+

0

28

Echo A127000080

COVER, DUST

$4.49

$

Usually ships in 2-4 days

0
