PB-4600 - Echo Backpack Blower (SN: 001001 - 059918) Engine, Short Block -- SB1012 Parts Diagram

Backpack Blower

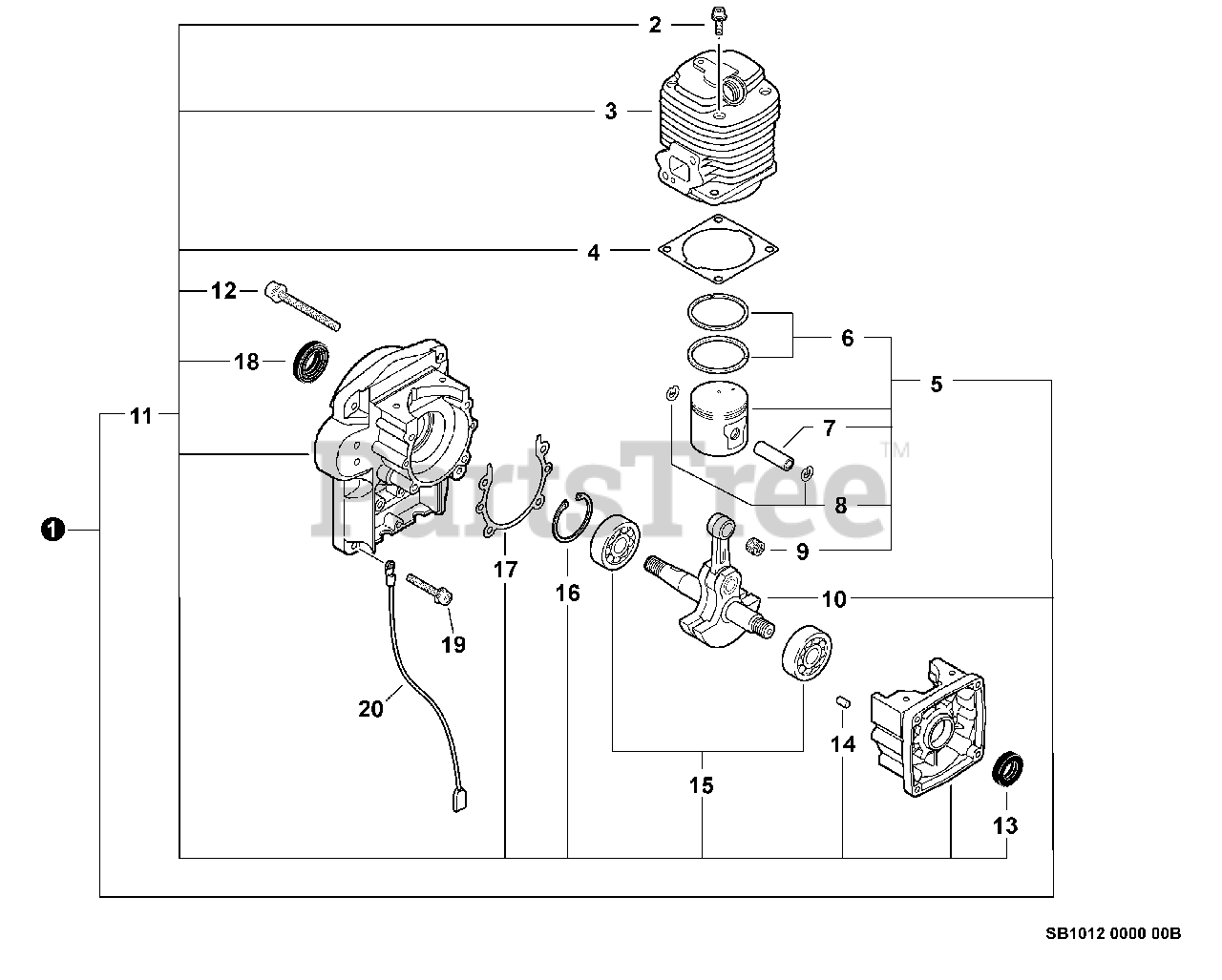

Engine, Short Block -- SB1012 Parts Diagram

  • Title

1

Echo SB1012

SHORT BLOCK -- SB1012

Note: Includes ITEM 2-18

$369.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101108260

CYLINDER
(Superseded to 10101108261)

$191.99

$

Usually ships in 2-4 days

0

4

Echo 10101010722

GASKET, CYLINDER

$1.99

$

In Stock, Qty 14

0

5

Echo 10000003210

PISTON KIT
(Superseded to P021002540)

Note: Includes ITEMS 6-9

$70.99

$

Usually ships in 2-4 days

0

6

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

7

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

9

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

10

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

In Stock, only 1 left!

0

11

Echo 10020408260

CRANKCASE KIT
(Superseded to 10020408261)

Note: Includes ITEMS 12-18

$233.99

$

Usually ships in 2-4 days

0

12

Echo 90023805040

SCREW - 5X40

$0.99

$

In Stock, only 1 left!

0

13

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

16

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

17

Echo 10024210721

GASKET, CRANKCASE

$1.49

$

In Stock, only 2 left!

0

18

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 5

0

19

Echo 90016205032

SCREW - 5X32

$1.49

$

Usually ships in 2-4 days

0

20

Echo 16201008261

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available
