PB-46 LN - Echo Backpack Blower (SN: 001001 - 999999) Intake Parts Diagram

Backpack Blower

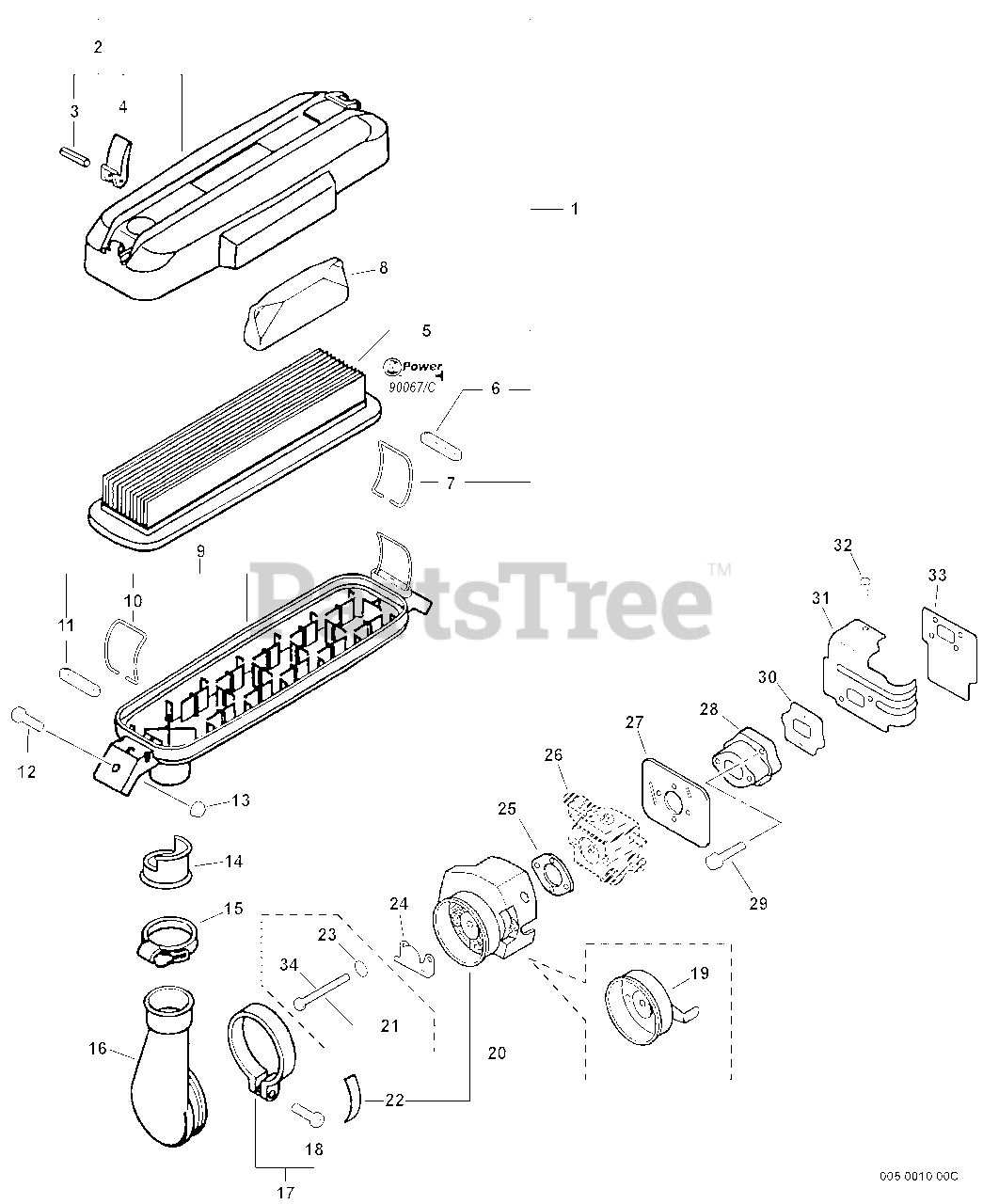

Intake Parts Diagram

  • Title

1

Echo 99988800801

AIR FILTER KIT

Note: Includes ITEMS 2-7

$30.99

$

In Stock, only 1 left!

0

2

Echo 13030808360

AIR FILTER COVER ASSY
(Superseded to 13030808361)

Note: Includes ITEMS 3-4

$14.99

$

Usually ships in 2-4 days

0

3

Echo 90034530025

PIN - SPRING -- 3X25

$1.99

$

In Stock, only 2 left!

0

4

Echo 13034108260

LATCH

$4.49

$

In Stock, only 2 left!

0

5

Echo 13030508361

FILTER, AIR

Note: Included In RePower KIT

$13.99

$

In Stock, Qty 14

0

6

Echo V491000220

RETAINER

$0.99

$

In Stock, Qty 20+

0

7

Echo 13103208360

RING, RETAINING

$2.99

$

In Stock, Qty 11

0

8

Echo 14563721260

SILENCER
(Superseded to Discontinued)

$

$

Not available

9

Echo P021014450

AIR FILTER CASE ASSY

Note: Includes ITEMS 10-11

$14.99

$

Usually ships in 2-4 days

0

10

Echo 13103208360

RING, RETAINING

$2.99

$

In Stock, Qty 11

0

11

Echo V491000220

RETAINER

$0.99

$

In Stock, Qty 20+

0

12

Echo 9154005014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

14

Echo 17807608360

COLLAR

$2.99

$

In Stock, Qty 8

0

15

Echo 13071508260

CLAMP, HOSE

$1.99

$

In Stock, only 2 left!

0

16

Echo 13071108260

ADAPTOR, INTAKE

$22.99

$

In Stock, Qty 6

0

17

Echo 21040000660

CLAMP KIT
(Superseded to P021043140)

Note: Includes ITEM 18

$7.49

$

In Stock, Qty 11

0

18

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

19

------------------

BRACKET, AIR CLEANER - METAL

Note: Replaced By ITEM 20

$

$

Not available

20

Echo A221000000

BRACKET KIT - PLASTIC

Note: Includes ITEMS 21-22

$10.99

$

In Stock, only 1 left!

0

21

Echo 90024205057

SCREW - 5X57

Note: For Metal Air Cleaner Bracket, Use ITEMS 34 & 23

$0.99

$

In Stock, Qty 5

0

22

Echo 89015808261

LABEL - CHOKE

Note: For Plastic Air Cleaner Bracket ONLY

$2.49

$

In Stock, only 1 left!

0

23

Echo 90060300006

WASHER - 6

Note: Not Used When Replacing With ITEM 20

$0.99

$

In Stock, Qty 20+

0

24

Echo A244000020

PLATE, PREVENT

$2.99

$

In Stock, only 1 left!

0

25

Echo 13001603731

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

26

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

27

Echo 13001021262

GASKET, INTAKE

$2.49

$

In Stock, Qty 20+

0

28

Echo 13000708261

INSULATOR, INTAKE

$10.99

$

In Stock, only 3 left!

0

29

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

30

Echo V103000000

GASKET, INTAKE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

31

Echo 10151421260

COVER, CYLINDER - EXHAUST

$17.99

$

Usually ships in 2-4 days

0

32

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

33

Echo 13001606211

SHIELD, INTAKE

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 20+

0

34

Echo 90022005050

SCREW - 5X55

Note: For Metal Air Cleaner Bracket ONLY

$0.99

$

Usually ships in 2-4 days

0

35

Echo 90067

RePower TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available

35

Echo 90067C

RePower TUNE-UP KIT
(Superseded to Discontinued)

$

$

Not available
