PB-46 HT - Echo Backpack Blower (SN: 001001 - 999999) Carburetor -- C1M-K37B Parts Diagram

Backpack Blower

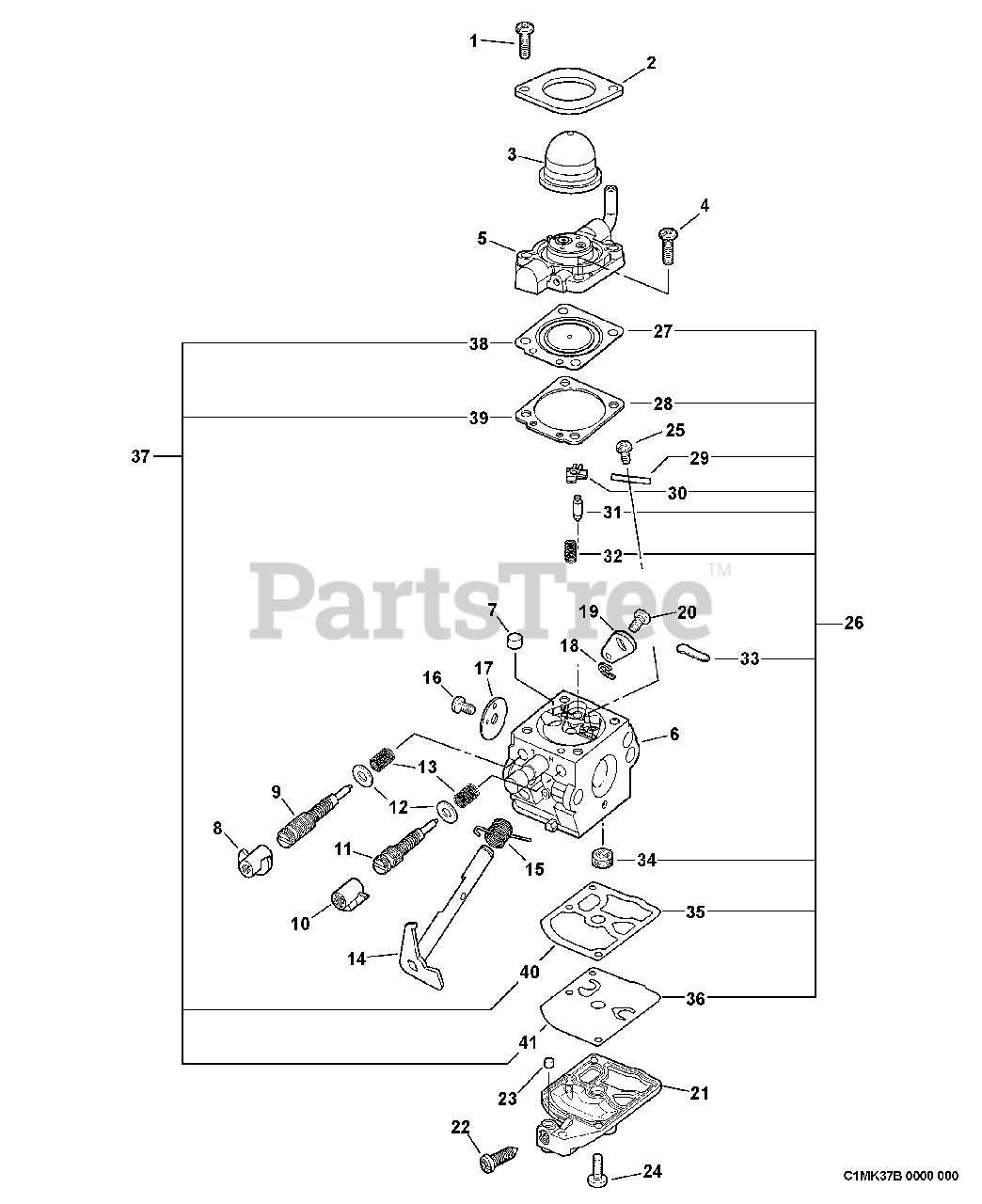

Carburetor -- C1M-K37B Parts Diagram

  • Title

Echo 12520008561

CARBURETOR C1M-K37A
(Superseded to 12520008563)

$76.99

$

In Stock, only 4 left!

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536308360

RETAINER, PURGE BULB

$2.49

$

Usually ships in 2-4 days

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

5

Echo 12538308360

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

6

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

7

Echo 12537608560

NOZZLE, CHECK VALVE

$4.99

$

Usually ships in 2-4 days

0

8

Echo 12532909860

CAP, LIMITER

$1.99

$

In Stock, Qty 13

0

9

Echo 12531808560

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

10

Echo 12532908560

CAP, LIMITER

$1.99

$

In Stock, only 4 left!

0

11

Echo 12532008560

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

12

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

13

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

14

Echo 12531708360

SHAFT, THROTTLE
(Superseded to P005002040)

$5.99

$

Usually ships in 2-4 days

0

15

Echo 12531308360

SPRING, TRIGGER

$1.49

$

In Stock, only 4 left!

0

16

Echo 12531451230

SCREW

$1.49

$

In Stock, only 1 left!

0

17

Echo 12531608560

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

18

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

19

Echo 12535008360

LEVER, THROTTLE

$2.99

$

In Stock, only 3 left!

0

20

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

21

Echo 12532408360

COVER, FUEL PUMP

$7.49

$

Usually ships in 2-4 days

0

22

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

23

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

24

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

25

Echo 12533913930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 4 left!

0

26

Echo 12530008560

REPAIR KIT
(Superseded to P005002560)

Note: Includes ITEMS 27-36

$18.99

$

In Stock, Qty 7

0

27

------------------

DIAPHRAGM, METERING

$

$

Not available

28

------------------

GASKET, DIAPHRAGM

$

$

Not available

29

------------------

PIN, METERING LEVER

$

$

Not available

30

------------------

LEVER, METERING

$

$

Not available

31

------------------

VALVE, INLET NEEDLE

$

$

Not available

32

------------------

SPRING, METERING LEVER

$

$

Not available

33

------------------

PLUG, WELCH

$

$

Not available

34

------------------

STRAINER

$

$

Not available

35

------------------

GASKET, PUMP

$

$

Not available

36

------------------

DIAPHRAGM, PUMP

$

$

Not available

37

Echo 12530308360

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 38-40

$9.49

$

In Stock, only 1 left!

0

38

------------------

DIAPHRAGM, METERING

$

$

Not available

39

------------------

GASKET, DIAPHRAGM

$

$

Not available

40

------------------

GASKET, PUMP

$

$

Not available

41

------------------

DIAPHRAGM, PUMP

$

$

Not available
