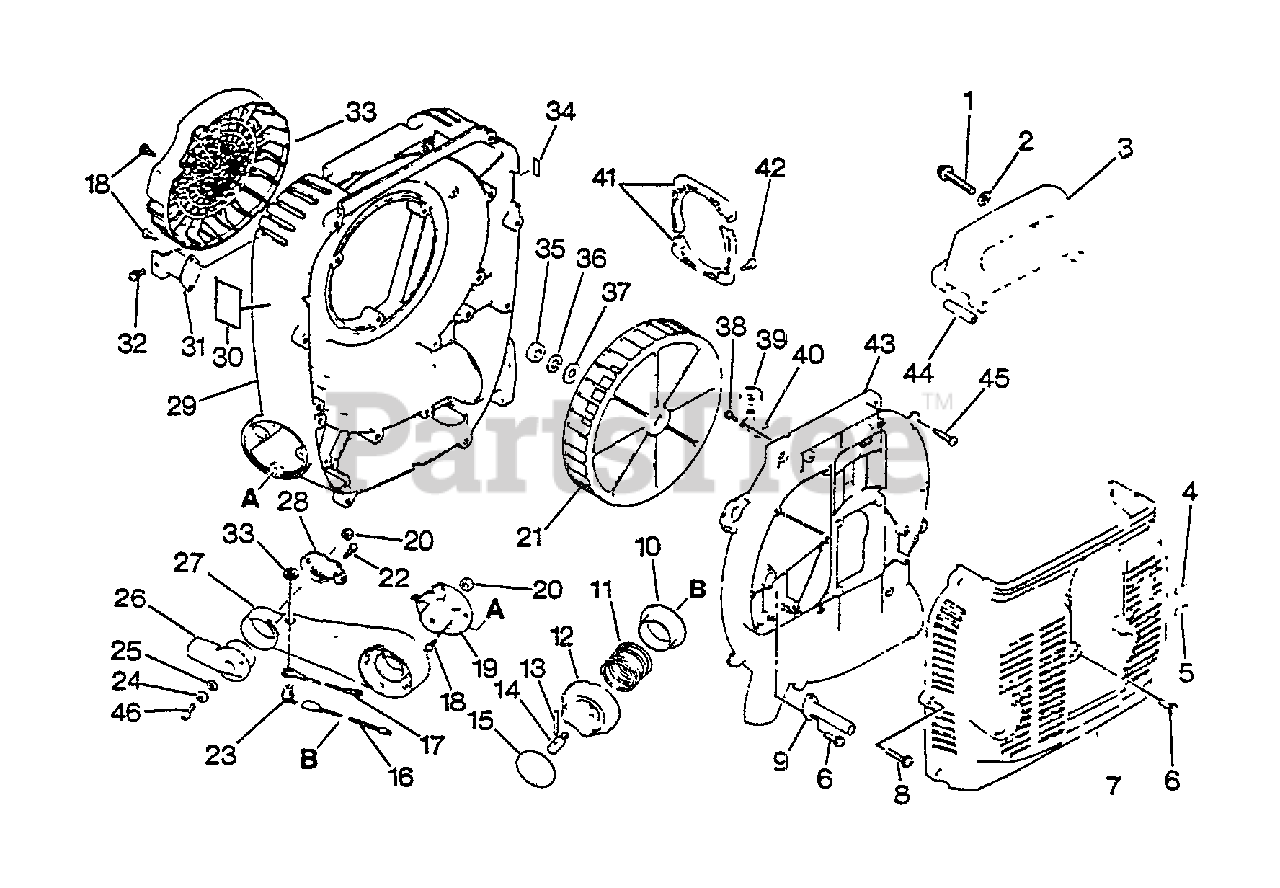

PB-4500 - Echo Backpack Blower (SN: 0034076 - 9999999) Fan, Housings, Throttle, Handles Parts Diagram

Backpack Blower

Fan, Housings, Throttle, Handles Parts Diagram

  • Title

1

Echo 90022006070

SCREW - 6X70

$1.99

$

Usually ships in 2-4 days

0

2

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

3

Echo 30580503460

GRIP

$30.99

$

Usually ships in 2-4 days

0

4

Echo 89018503460

LABEL - IDLE

$0.99

$

Usually ships in 2-4 days

0

5

Echo 89015803460

LABEL - CAUTION

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

7

Echo 10401207560

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

8

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

9

Echo 14517404260

DUCT, AIR

$8.49

$

Usually ships in 2-4 days

0

10

Echo 17813503460

SEAT, SPRING
(Superseded to Discontinued)

$

$

Not available

11

Echo 17813603460

SPRING

$6.49

$

Usually ships in 2-4 days

0

12

Echo 17813806160

KNOB
(Superseded to Discontinued)

$

$

Not available

13

Echo 90033040298

PIN

$1.49

$

In Stock, Qty 5

0

14

Echo 17813703460

SHAFT

$4.49

$

Usually ships in 2-4 days

0

15

Echo 89018607560

LABEL
(Superseded to Discontinued)

$

$

Not available

16

Echo 16202103460

LEAD - IGNITION

$2.99

$

Usually ships in 2-4 days

0

17

Echo 16201003460

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

18

Echo 90025205014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

19

Echo 17813403460

PLATE
(Superseded to Discontinued)

$

$

Not available

20

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 20000504260

FAN

$85.99

$

Usually ships in 2-4 days

0

22

Echo 90024504010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

23

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, only 3 left!

0

24

Echo 90060700006

WASHER

$0.99

$

In Stock, only 3 left!

0

25

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

26

Echo 17801006160

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

27

Echo 17812206160

ARM, THROTTLE CONTROL

$17.99

$

Usually ships in 2-4 days

0

28

Echo 17812303460

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

29

Echo 20010507560

COVER, FAN - INNER

$144.99

$

In Stock, only 1 left!

0

30

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 19

0

31

Echo 20090703460

CUSHION

$13.99

$

Usually ships in 2-4 days

0

32

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

33

Echo 20012404260

GUARD, DEBRIS

$12.99

$

Usually ships in 2-4 days

0

34

Echo 89012104260

LABEL - CHOKE
(Superseded to 89012104960)

$

$

Not available

35

Echo 90050000001

NUT - 10

$

$

Currently unavailable

36

Echo 90060500001

LOCKWASHER - 6

$

$

Currently unavailable

37

Echo 90060000001

WASHER - 10

$

$

Currently unavailable

38

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

39

Echo 36303003460

SEAL

$1.99

$

Usually ships in 2-4 days

0

40

Echo 36301503460

PIPE - INTAKE
(Superseded to Discontinued)

$

$

Not available

41

Echo 21002207560

BRACKET
(Superseded to Discontinued)

$

$

Not available

42

Echo 90025205014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

43

Echo 20011104261

COVER, FAN - OUTER
(Superseded to Discontinued)

$

$

Not available

44

Echo 30581403460

CUSHION

$1.49

$

Usually ships in 2-4 days

0

45

Echo 90024905025

SCREW - 5X25
(Superseded to Discontinued)

$

$

Not available

46

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0
