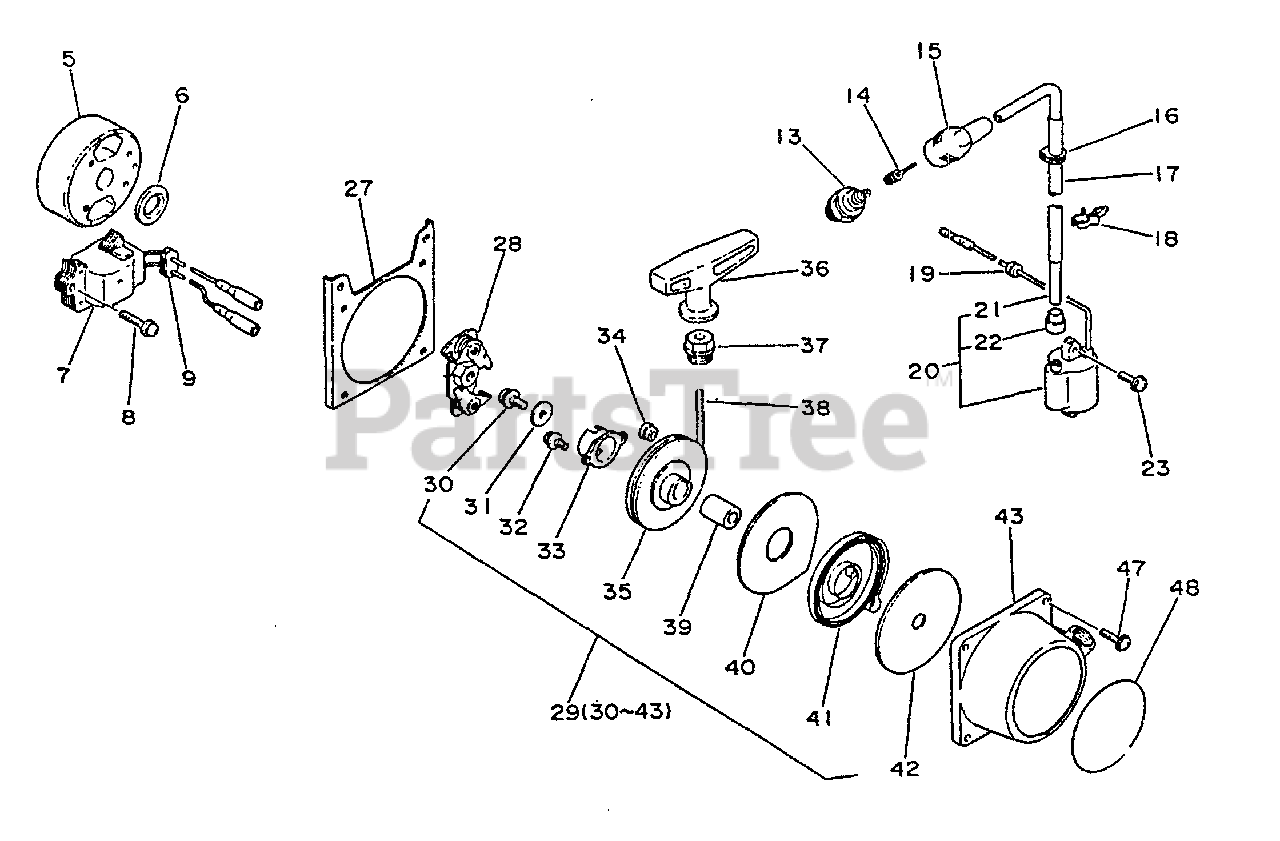

PB-4500 - Echo Backpack Blower (SN: 0000000 - 0034075) Ignition, Starter Parts Diagram

Backpack Blower

Ignition, Starter Parts Diagram

  • Title
5

Echo 15680003460

FLYWHEEL
(Superseded to 15680003461)

$

$

Not available

6

$3.99

$

Usually ships in 2-4 days

0

7

Echo 15660103460

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

8

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

9

$1.49

$

In Stock, Qty 5

0

13

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

14

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

15

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

16

$1.49

$

Usually ships in 2-4 days

0

$2.49

$

Usually ships in 2-4 days

0

$1.49

$

Usually ships in 2-4 days

0

19

$0.99

$

In Stock, Qty 13

0

20

Echo 15660204260

IGNITION COIL ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo 15663104260

CORD, HIGH TENSION

$2.99

$

Usually ships in 2-4 days

0

22

Echo 15663203460

CORD, HIGH TENSION

$1.99

$

Usually ships in 2-4 days

0

23

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

27

$9.49

$

Usually ships in 2-4 days

0

28

Echo 17730704260

STARTER PAWL ASSY
(Superseded to Discontinued)

$

$

Not available

29

Echo 17720004260

STARTER ASSY
(Superseded to 17720007560)

$

$

Not available

30

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

31

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

32

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

33

Echo 17724304130

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

34

Echo 17724603930

RETAINER, ROPE

$0.99

$

In Stock, only 2 left!

0

35

Echo 17721503930

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

36

Echo 17722819830

GRIP, STARTER

$4.99

$

Usually ships in 2-4 days

0

37

Echo 17722705020

GUIDE, ROPE

$3.99

$

In Stock, Qty 5

0

38

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 5

0

39

$1.99

$

In Stock, Qty 20+

0

40

Echo 17724206721

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

41

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

42

Echo 17722106720

PLATE, STARTER

$2.99

$

Usually ships in 2-4 days

0

43

Echo 17720904260

CASE, STARTER

$17.99

$

Usually ships in 2-4 days

0

47

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

48

Echo 89011217831

LABEL - ECHO
(Superseded to 89011817830)

$6.49

$

In Stock, only 4 left!

0
