PB-4500 - Echo Backpack Blower (SN: 0000000 - 0034075) Carburetor Parts Diagram

Backpack Blower

Carburetor Parts Diagram

  • Title

Echo 12300004260

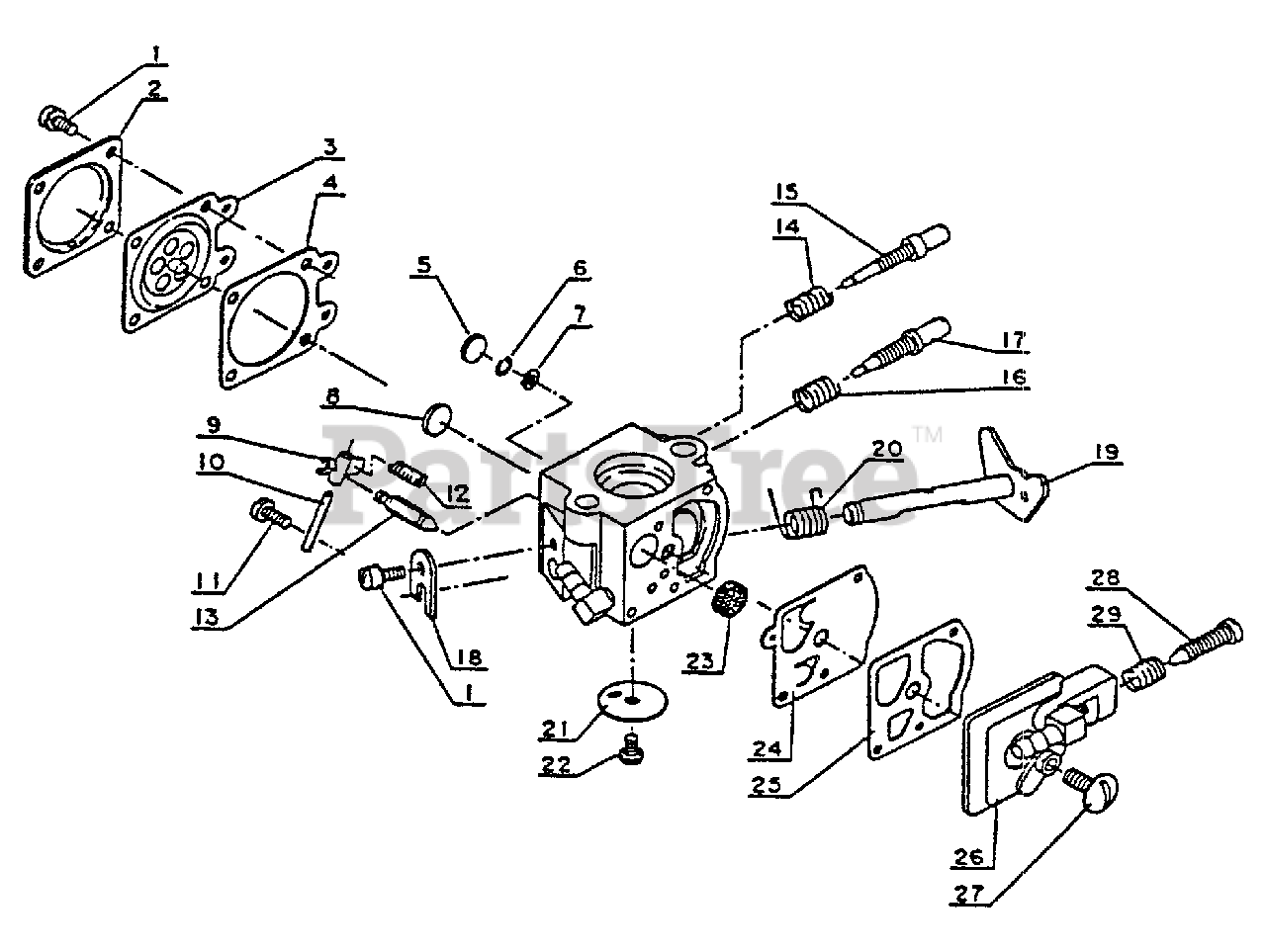

CARBURETOR
(Superseded to 12300004261)

$

$

Not available

1

------------------

SCREW

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330 & Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330 & Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

5

------------------

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

6

------------------

RING, RETAINING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

7

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

8

------------------

PLUG, WELCH

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

9

------------------

LEVER, METERING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

10

------------------

PIN, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

11

------------------

SCREW, METERING LEVER PIN

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

12

------------------

SPRING, METERING LEVER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

13

------------------

VALVE, INLET NEEDLE

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

14

------------------

SPRING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

15

Echo 12312014530

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

16

------------------

SPRING

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

17

Echo 12311803460

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

19

Echo 12311703460

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

20

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

21

Echo 12311603930

VALVE, THROTTLE

$1.99

$

In Stock, only 3 left!

0

22

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

23

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310016330

$

$

Not available

24

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair Kit P/N 12310016330 & Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

25

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit P/N 12310016330 & Carburetor Diaphragm/Gasket Kit P/N 12310110530

$

$

Not available

26

Echo 12312402960

COVER, PUMP

$5.49

$

Usually ships in 2-4 days

0

27

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

28

Echo 12313406320

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 4 left!

0

29

Echo 12313306320

SPRING, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

Echo 12310016330

REPAIR KIT

$16.99

$

In Stock, only 3 left!

0

Echo 12310110530

DIAPHRAGM/GASKET KIT

$7.49

$

In Stock, only 4 left!

0
