PB-413 T - Echo Backpack Blower (SN: P08111001001 - P08111999999) Fuel System Parts Diagram

Backpack Blower

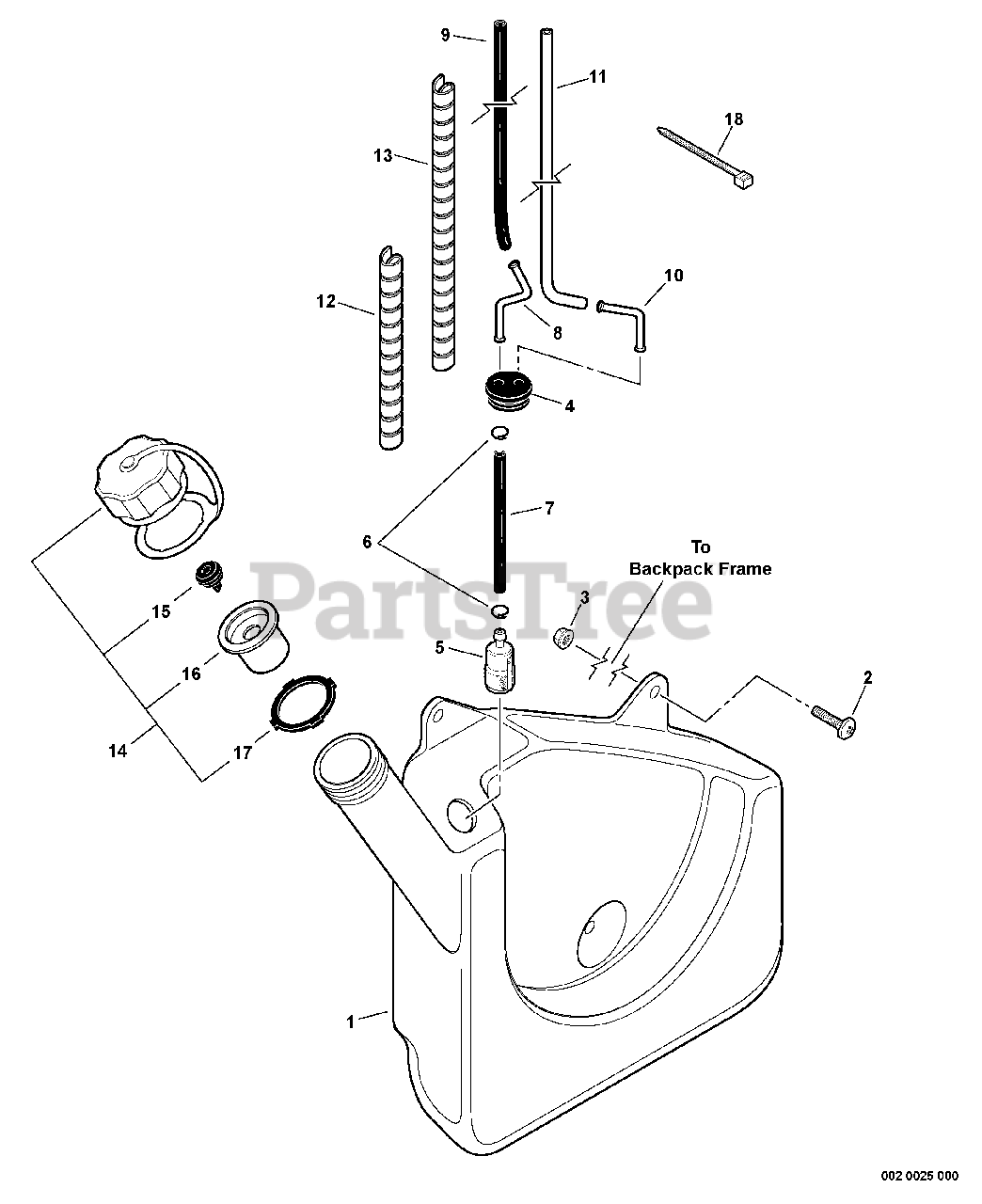

Fuel System Parts Diagram

  • Title

1

Echo A350000711

TANK, FUEL

$42.99

$

In Stock, only 1 left!

0

2

Echo 90020905020

SCREW - 5X20
(Superseded to Discontinued)

$

$

Not available

3

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

4

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$2.99

$

Usually ships in 2-4 days

0

5

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

Note: Included In RePower KIT

$9.49

$

In Stock, Qty 20+

0

6

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

7

Echo V471000770

PIPE - 3X6X280 -- BLACK
(Superseded to V471000771)

Note: RePower BULK OPTION: 90015

$3.99

$

In Stock, Qty 20+

0

8

Echo 13201108260

CONNECTOR, PIPE

$3.99

$

In Stock, Qty 6

0

9

Echo 13201008260

PIPE - 3X7X520 -- BLACK

Note: RePower BULK OPTION: 90016

$16.99

$

In Stock, Qty 6

0

10

Echo 13202108260

CONNECTOR, PIPE

$3.99

$

In Stock, only 1 left!

0

11

Echo 13201608260

PIPE - 2X4X480 -- CLEAR

Note: RePower BULK OPTION: 90018

$4.49

$

In Stock, Qty 20+

0

12

Echo 17812703460

WRAP, SPIRAL - 130mm

$1.99

$

In Stock, only 1 left!

0

13

Echo 13201508260

WRAP, SPIRAL

$

$

Not available

14

Echo 13160009861

CAP ASSY
(Superseded to P100006490)

Note: Includes ITEMS 15-17

$11.99

$

In Stock, only 2 left!

0

15

Echo 13131406320

VENT

$5.49

$

In Stock, only 4 left!

0

16

Echo A358000000

VENT HOLDER ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo 13101621060

GASKET, CAP
(Superseded to 13101621061)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0
