Echo PB-413 T - Echo Backpack Blower (SN: 09001001 - 09999999) Engine, Short Block -- SB1077 Parts Lookup with Diagrams

1

Echo SB1077

SHORT BLOCK -- SB1077

Note: Includes ITEM 2-16

$377.99

$

Usually ships in 2-4 days

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

3

Echo A130000620

CYLINDER

(Superseded to Discontinued) 

$

Not available 

4

Echo 10101010722

GASKET, CYLINDER

$1.99

$

In Stock, Qty 14

5

Echo P021008580

PISTON KIT

Note: Includes ITEMS 6-9

$63.99

$

Usually ships in 2-4 days

6

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

7

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

8

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

9

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 7

10

Echo 10010006210

CRANKSHAFT ASSY

$146.99

$

In Stock, only 1 left!

11

Echo 10020408261

CRANKCASE KIT

Note: Includes ITEMS 12-16

$233.99

$

Usually ships in 2-4 days

12

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

14

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 5

15

Echo 10024210721

GASKET, CRANKCASE

$1.49

$

In Stock, only 2 left!

16

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 8

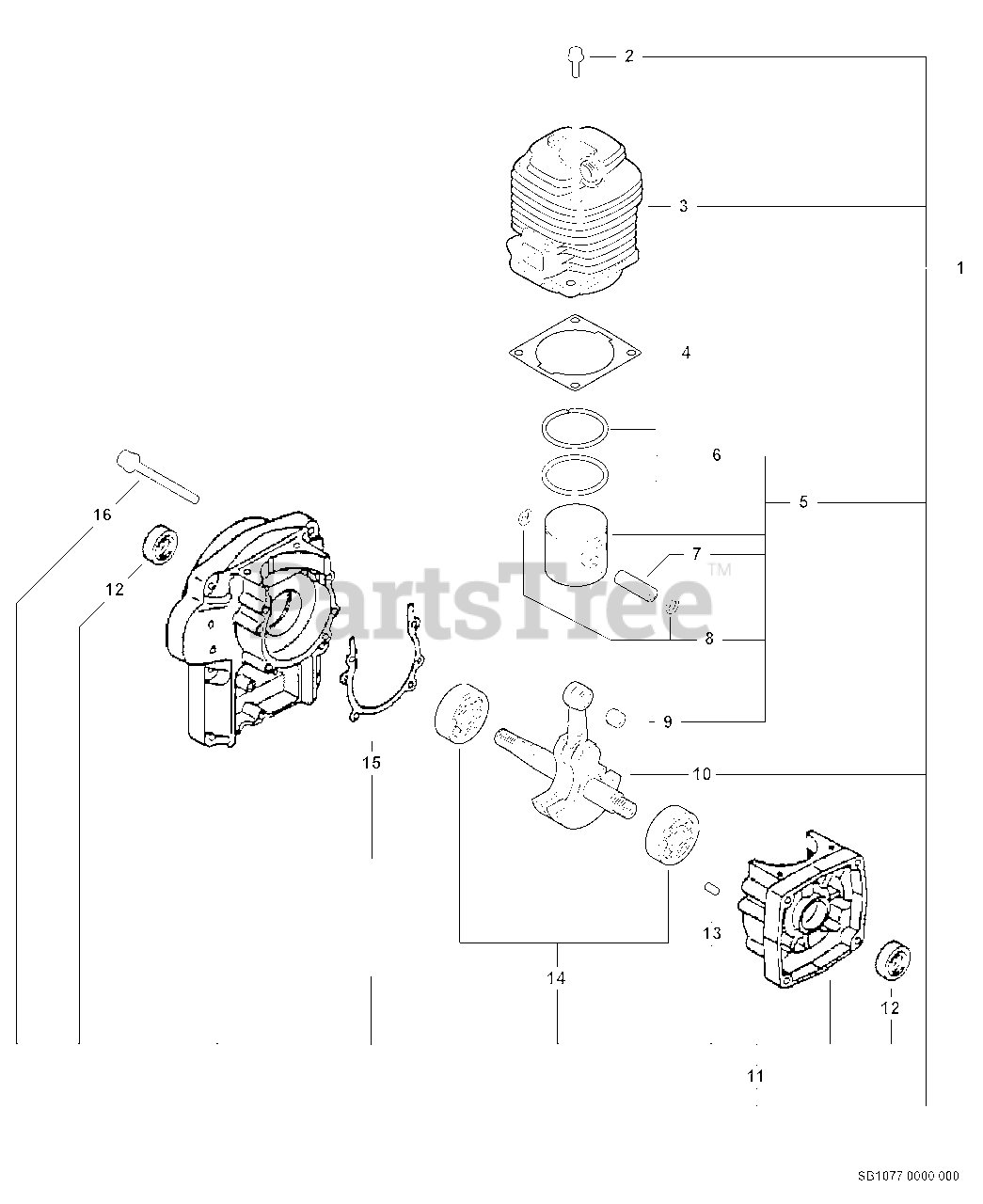

PB-413 T - Echo Backpack Blower (SN: 09001001 - 09999999) Engine, Short Block -- SB1077 Parts Diagram

Engine, Short Block -- SB1077 Parts Diagram

Echo SB1077

Echo 90016205022

Echo A130000620

Echo 10101010722

Echo P021008580

Echo 10001110530

Echo 10001300410

Echo 10001500120

Echo 10001212331

Echo 10010006210

Echo 10020408261

Echo 10021300310

Echo V622000020

Echo 90081036202

Echo 10024210721

Echo 90016205040
