PB-413 H - Echo Backpack Blower (SN: P08011001001 - P08011999999) Hip Mount Throttle Parts Diagram

Backpack Blower

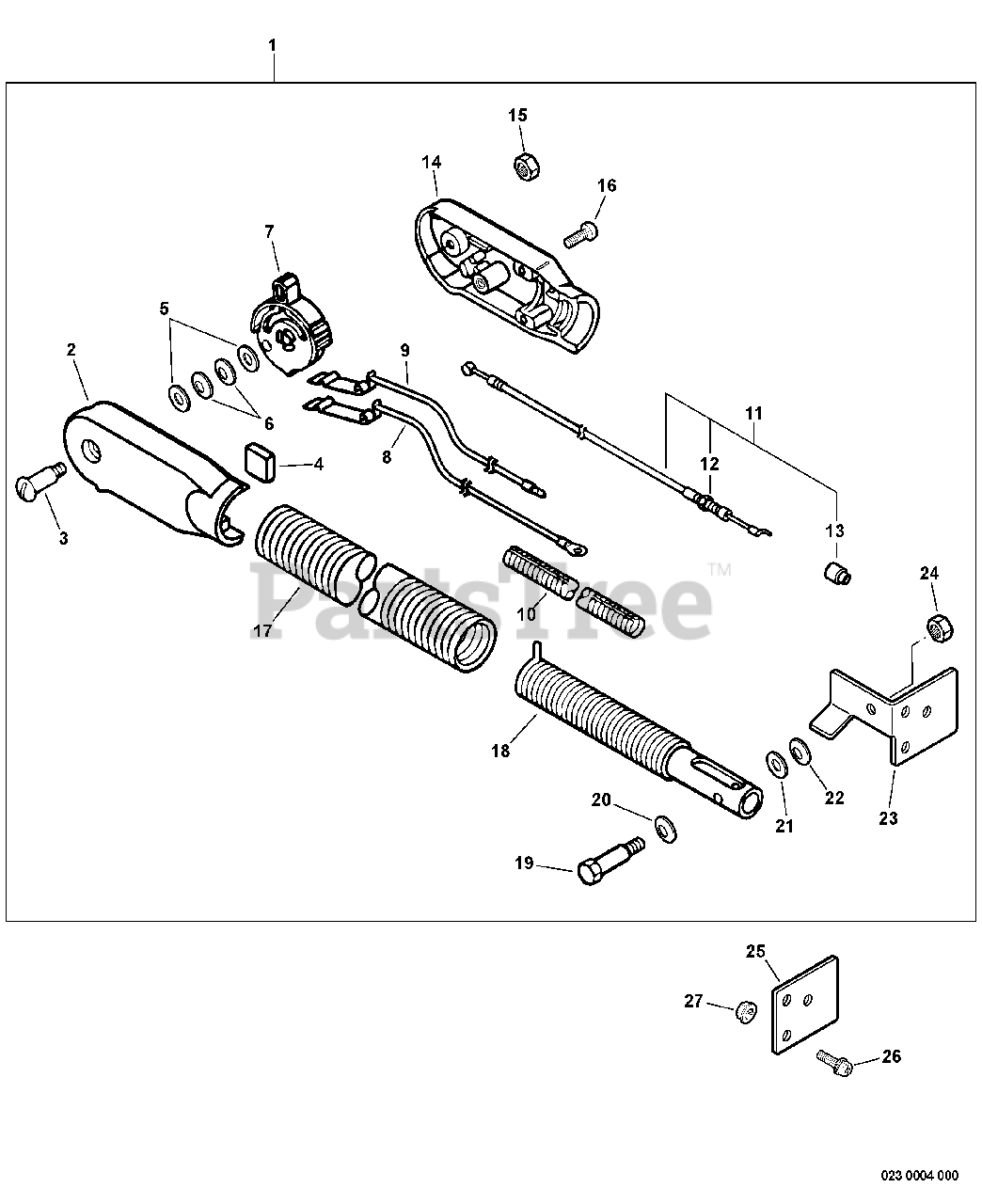

Hip Mount Throttle Parts Diagram

  • Title
1

Echo 900105

HIP MOUNT THROTTLE CONTROL KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo C471000050

HANDLE, CONTROL - LEFT

$2.99

$

Usually ships in 2-4 days

0

3

Echo 60403021060

SCREW - 4

$1.99

$

In Stock, Qty 5

0

4

Echo 10429321060

PAD, FOAM

$4.49

$

Usually ships in 2-4 days

0

5

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 17816021060

WASHER - SPRING

$0.99

$

In Stock, only 3 left!

0

7

Echo C453000021

LEVER, THROTTLE CONTROL

$2.99

$

In Stock, Qty 7

0

8

Echo V485000072

LEAD - GROUND

$

$

Not available

9

Echo V485000060

LEAD - IGNITION

$4.99

$

In Stock, only 3 left!

0

10

Echo 16202321061

TUBE, PROTECTIVE - CORRUGATED

$0.99

$

In Stock, Qty 9

0

11

Echo 17800121060

THROTTLE CABLE ASSY
(Superseded to 17800121061)

Note: Includes ITEMS 11-12

$9.99

$

In Stock, only 3 left!

0

12

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

13

Echo 17808208260

CAP, DUST

$3.49

$

In Stock, only 2 left!

0

14

Echo C471000060

HANDLE, CONTROL - RIGHT

$2.99

$

Usually ships in 2-4 days

0

15

Echo 90056000004

LOCKNUT - 4

$0.99

$

In Stock, Qty 20+

0

16

Echo 88995021060

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

17

$0.99

$

In Stock, Qty 6

0

18

Echo V475000920

TUBE, SPRING

$21.99

$

Usually ships in 2-4 days

0

19

Echo 43261721060

BOLT - 6

$1.99

$

In Stock, only 1 left!

0

20

Echo 17812921060

WASHER - SPRING

$2.49

$

In Stock, Qty 5

0

21

Echo 69402921060

WASHER - 8

$0.99

$

In Stock, only 1 left!

0

22

Echo 70101721060

WASHER - 8
(Superseded to 70101721061)

$0.99

$

In Stock, Qty 8

0

23

Echo C625000000

BRACKET

$4.99

$

In Stock, only 4 left!

0

24

Echo 90003010008

LOCKNUT - 1/4"

$0.99

$

In Stock, Qty 8

0

25

$1.99

$

In Stock, only 2 left!

0

26

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

27

Echo 90051600005

NUT - 5 -- FLANGE

$1.49

$

In Stock, Qty 20+

0
