PB-410 - Echo Backpack Blower (SN: P07911001001 - P07911999999) Intake Parts Diagram

Backpack Blower

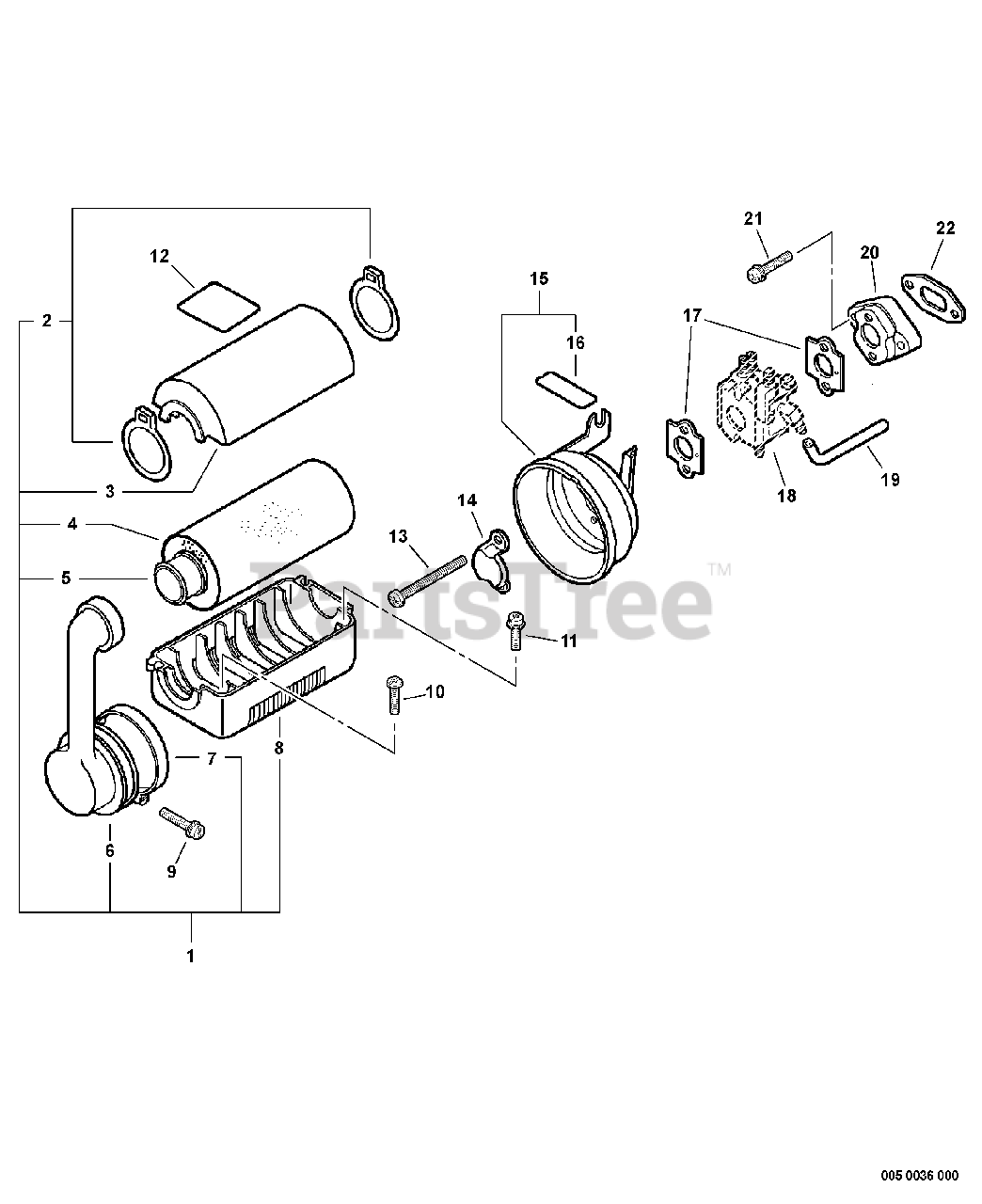

Intake Parts Diagram

  • Title

1

Echo 13030402262

AIR CLEANER ASSY

Note: INCLUDES ITEMS 2-8

$100.99

$

Usually ships in 2-4 days

0

2

Echo 13034100760

CLAMP

$6.49

$

In Stock, Qty 8

0

3

Echo 13032600763

COVER, AIR FILTER

$12.99

$

In Stock, only 1 left!

0

4

Echo 13031700760

FILTER, AIR

$41.99

$

In Stock, Qty 20+

0

5

Echo 13031100761

FILTER, AIR

$6.99

$

Usually ships in 2-4 days

0

6

Echo 13071102260

ADAPTOR, INTAKE

$44.99

$

In Stock, Qty 5

0

7

Echo 13071302260

CLAMP

$6.99

$

In Stock, only 1 left!

0

8

Echo 13031800763

CASE, AIR FILTER

$15.99

$

Usually ships in 2-4 days

0

9

Echo 90023505030

SCREW - 5X30

$

$

Not available

10

Echo 90022006015

SCREW - 6X15

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0

12

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 19

0

13

Echo 90022005050

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

14

Echo 12901102260

PLATE, PREVENT

$4.49

$

In Stock, Qty 6

0

15

Echo 13030702362

CASE, AIR FILTER

Note: Includes ITEM 16

$23.99

$

In Stock, only 1 left!

0

16

Echo X506000010

LABEL - CHOKE

$1.49

$

In Stock, only 3 left!

0

17

Echo 13001606232

GASKET, INTAKE

$0.99

$

In Stock, Qty 12

0

18

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

19

Echo 13011000760

PIPE - IMPULSE
(Superseded to V471001880)

$1.99

$

In Stock, Qty 20+

0

20

Echo A200000230

INSULATOR, INTAKE

$6.99

$

Usually ships in 2-4 days

0

21

Echo 90024206025

SCREW - 6X25

$0.99

$

Usually ships in 2-4 days

0

22

Echo 13001000763

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0
