PB-410 - Echo Backpack Blower (SN: P07911001001 - P07911999999) Fuel System Parts Diagram

Backpack Blower

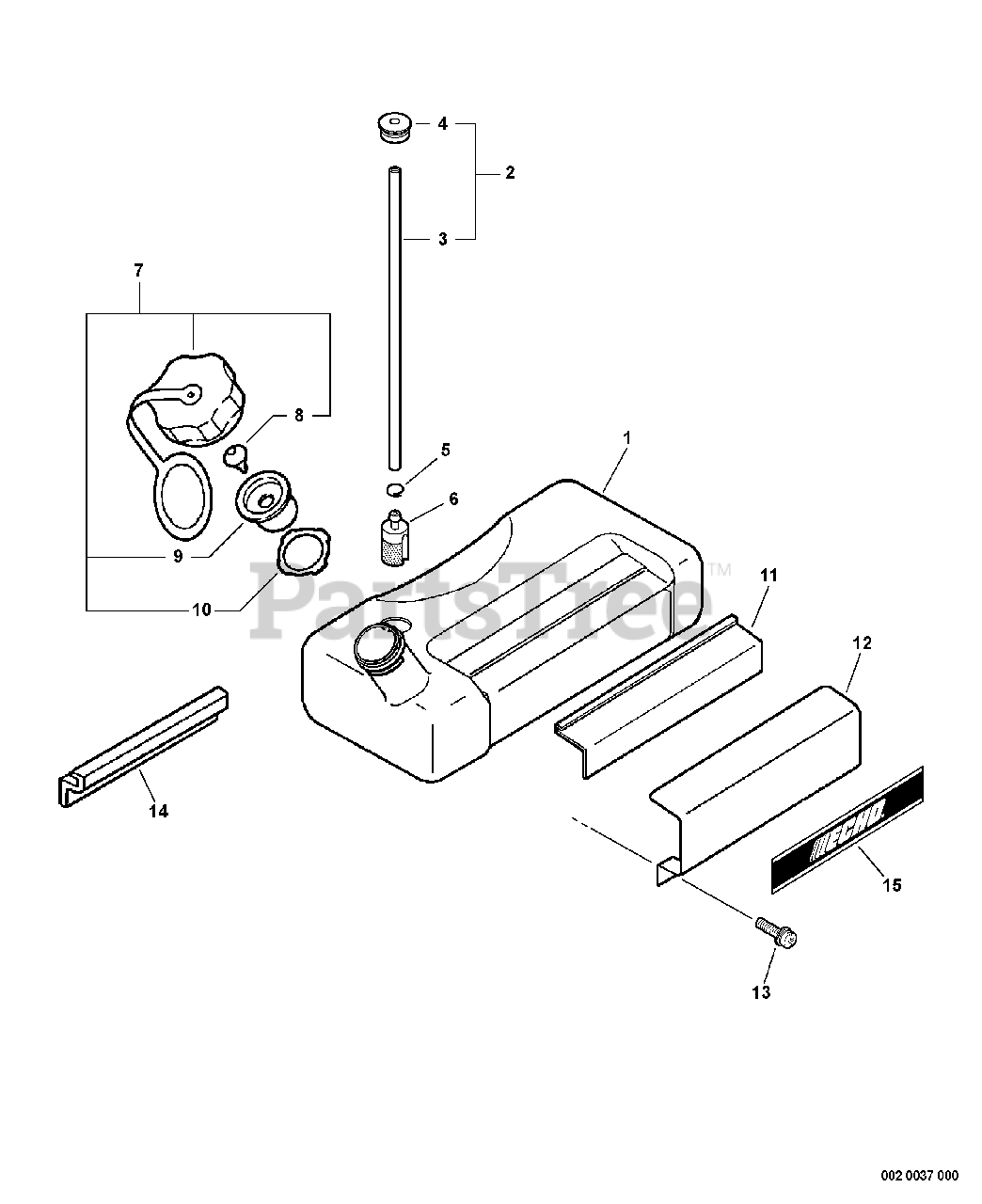

Fuel System Parts Diagram

  • Title

1

Echo A350000630

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 13200700760

PIPE, FUEL - SPIRAL

Note: INCLUDES ITEMS 3-5

$5.99

$

In Stock, Qty 13

0

3

Echo 13200700760

PIPE, FUEL - SPIRAL

$5.99

$

In Stock, Qty 13

0

4

Echo 13211511131

GROMMET

$2.49

$

In Stock, Qty 18

0

5

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

7

Echo 13160009861

CAP ASSY
(Superseded to P100006490)

Note: INCLUDES ITEMS 8-10

$11.99

$

In Stock, only 3 left!

0

8

Echo 13131406320

VENT

$5.49

$

In Stock, only 4 left!

0

9

Echo A358000000

VENT HOLDER ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 13101621060

GASKET, CAP
(Superseded to 13101621061)

$2.99

$

Usually ships in 2-4 days

0

11

Echo 13192002260

CUSHION, FUEL TANK

$2.99

$

Usually ships in 2-4 days

0

12

Echo 13191002260

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

13

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

14

Echo A390000030

SEAT, FUEL TANK

$1.99

$

Usually ships in 2-4 days

0

15

Echo 89013800760

LABEL - ECHO

$3.99

$

Usually ships in 2-4 days

0
