PB-410 - Echo Backpack Blower (SN: 03001001 - 03999999) Ignition, Starter Parts Diagram

Backpack Blower

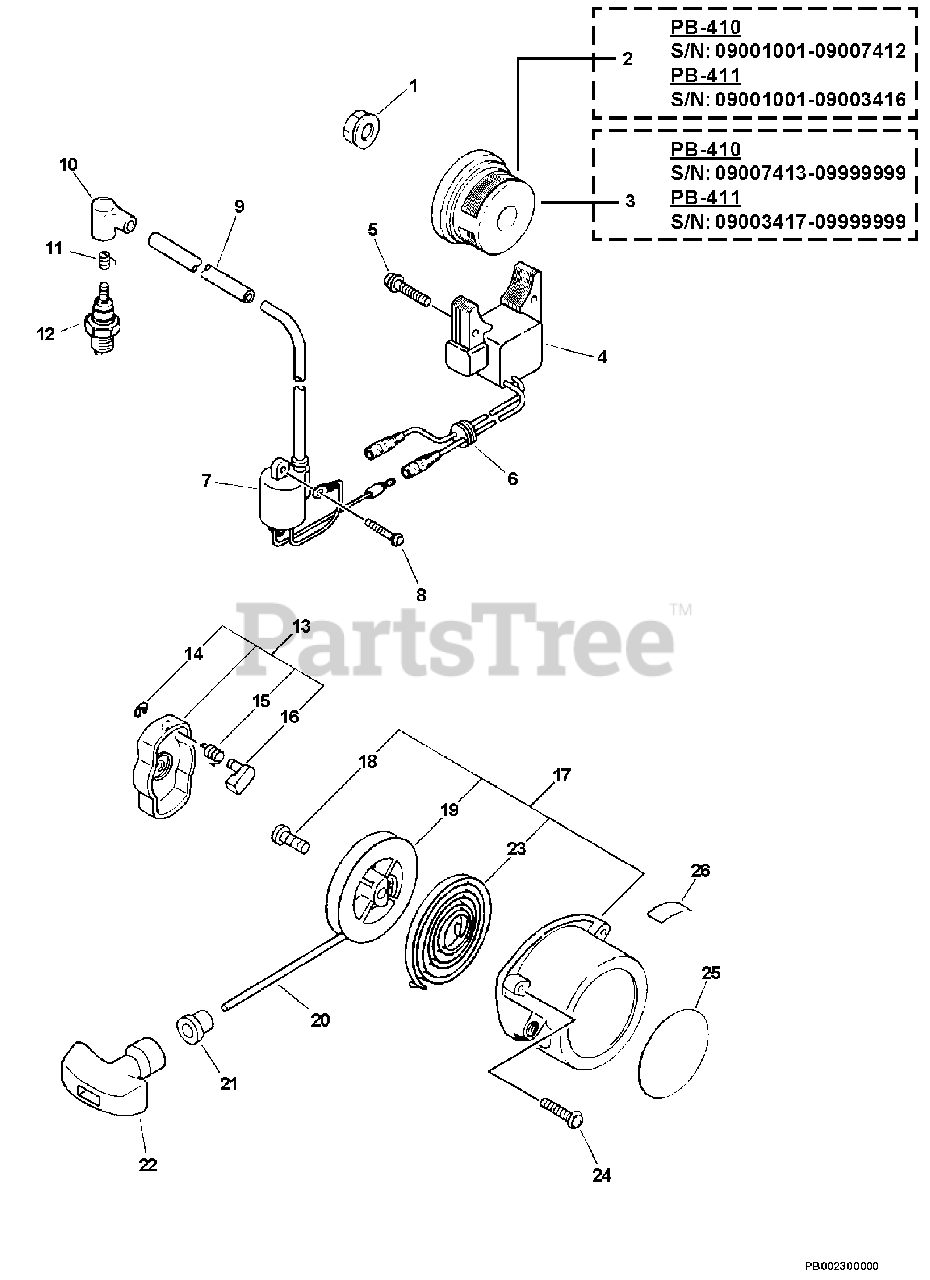

Ignition, Starter Parts Diagram

  • Title

1

Echo 90051900010

NUT - 10 -- FLANGE

$1.99

$

In Stock, only 3 left!

0

2

Echo 15680002111

FLYWHEEL

$110.99

$

Usually ships in 2-4 days

0

3

Echo A409000260

FLYWHEEL

$81.99

$

Usually ships in 2-4 days

0

4

Echo 15660102912

COIL, IGNITION

$103.99

$

In Stock, only 4 left!

0

5

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

6

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 1 left!

0

7

Echo 15662602111

COIL, IGNITION

$90.99

$

In Stock, only 1 left!

0

8

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

9

Echo 15011101110

TUBE

$0.99

$

In Stock, only 1 left!

0

10

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

11

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 18

0

12

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

13

Echo 17720202110

STARTER PAWL ASSY

Note: Includes ITEMS 14-16

$16.99

$

In Stock, only 2 left!

0

14

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

15

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

16

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

17

Echo 17720000760

STARTER ASSY

Note: INCLUDES ITEMS 18-23

$95.99

$

In Stock, only 4 left!

0

18

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

19

Echo 17721543130

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

20

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$5.99

$

In Stock, only 1 left!

0

21

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

22

Echo 17722801110

GRIP, STARTER

$7.49

$

Usually ships in 2-4 days

0

23

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

24

Echo 90024205018

SCREW - 5X18

$0.99

$

In Stock, only 4 left!

0

25

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

26

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
