PB-403 T - Echo Backpack Blower (SN: 04001001 - 04999999) Tube Mount Throttle Parts Diagram

Backpack Blower

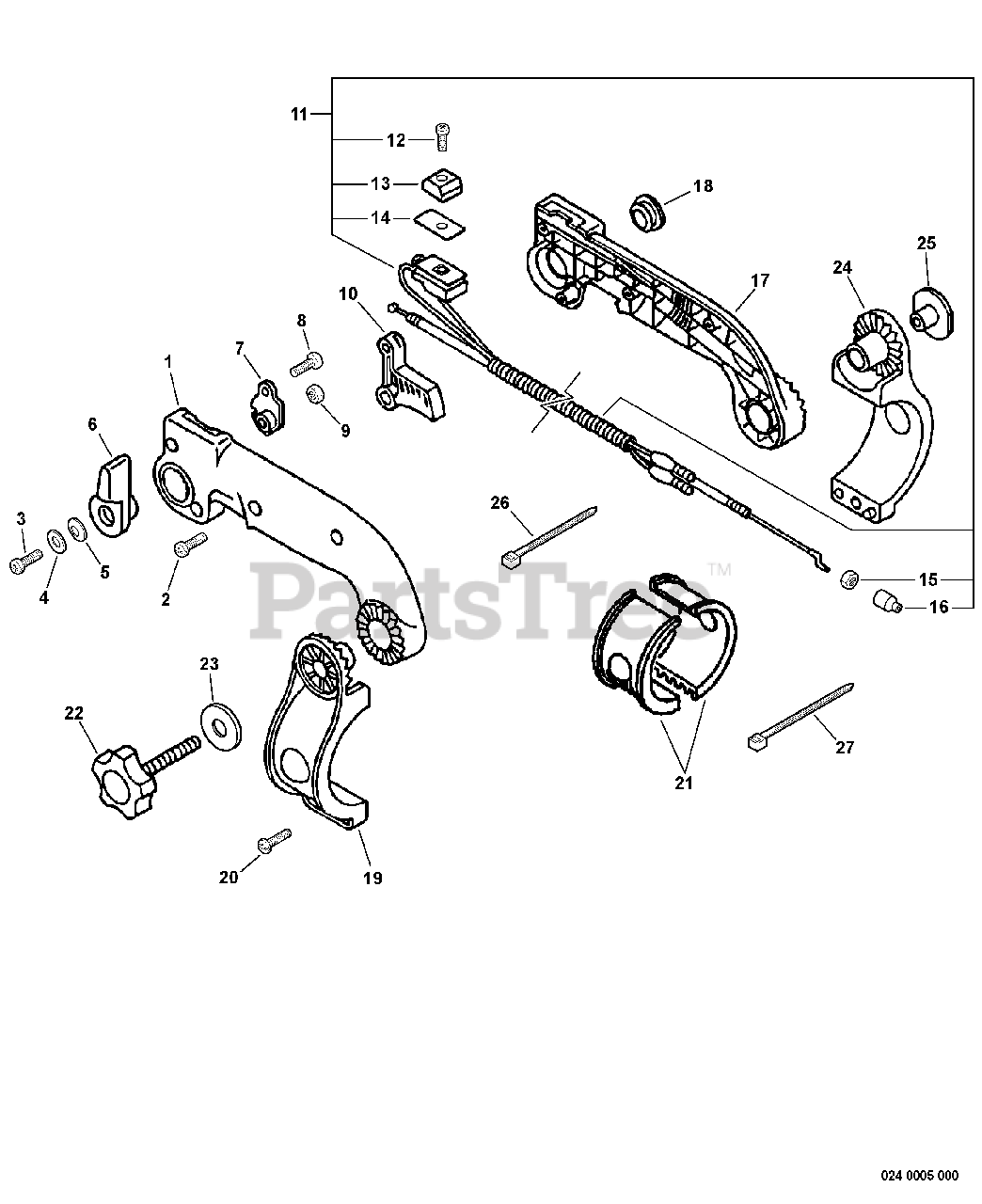

Tube Mount Throttle Parts Diagram

  • Title
1

Echo 35131507560

HANDLE, CONTROL - LEFT

$22.99

$

In Stock, only 1 left!

0

2

Echo 90025604022

SCREW - 4X22

$0.99

$

In Stock, Qty 7

0

3

Echo 90023506020

SCREW - 6X20

$0.99

$

In Stock, Qty 15

0

4

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

5

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 17805407560

CONTROL, THROTTLE

$12.99

$

In Stock, Qty 7

0

7

Echo 17812307561

BRACKET, THROTTLE

$3.99

$

In Stock, only 1 left!

0

8

Echo 90024504010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

9

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 17801007561

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 6

0

11

Echo V043000021

CONTROL CABLE ASSY

Note: Includes ITEMS 12-16

$15.99

$

In Stock, Qty 8

0

12

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

13

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

14

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

15

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

16

Echo 17808208260

CAP, DUST

$3.49

$

In Stock, only 2 left!

0

17

Echo 35131107560

HANDLE, CONTROL - RIGHT

$11.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, only 1 left!

0

19

Echo 35101107560

BRACKET, HANDLE - LEFT
(Superseded to P021014110)

$5.99

$

In Stock, Qty 13

0

20

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

21

$4.49

$

In Stock, Qty 7

0

22

Echo 30581208260

THUMBSCREW
(Superseded to V299000630)

$4.49

$

In Stock, Qty 12

0

23

Echo 17851607560

WASHER - 6

$0.99

$

In Stock, Qty 5

0

24

Echo 35102807560

BRACKET, HANDLE - RIGHT
(Superseded to P021014110)

$5.99

$

In Stock, Qty 13

0

25

$25.99

$

In Stock, only 3 left!

0

26

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0

27

Echo 17812109860

TIE, CABLE - LARGE

$2.99

$

Usually ships in 2-4 days

0
