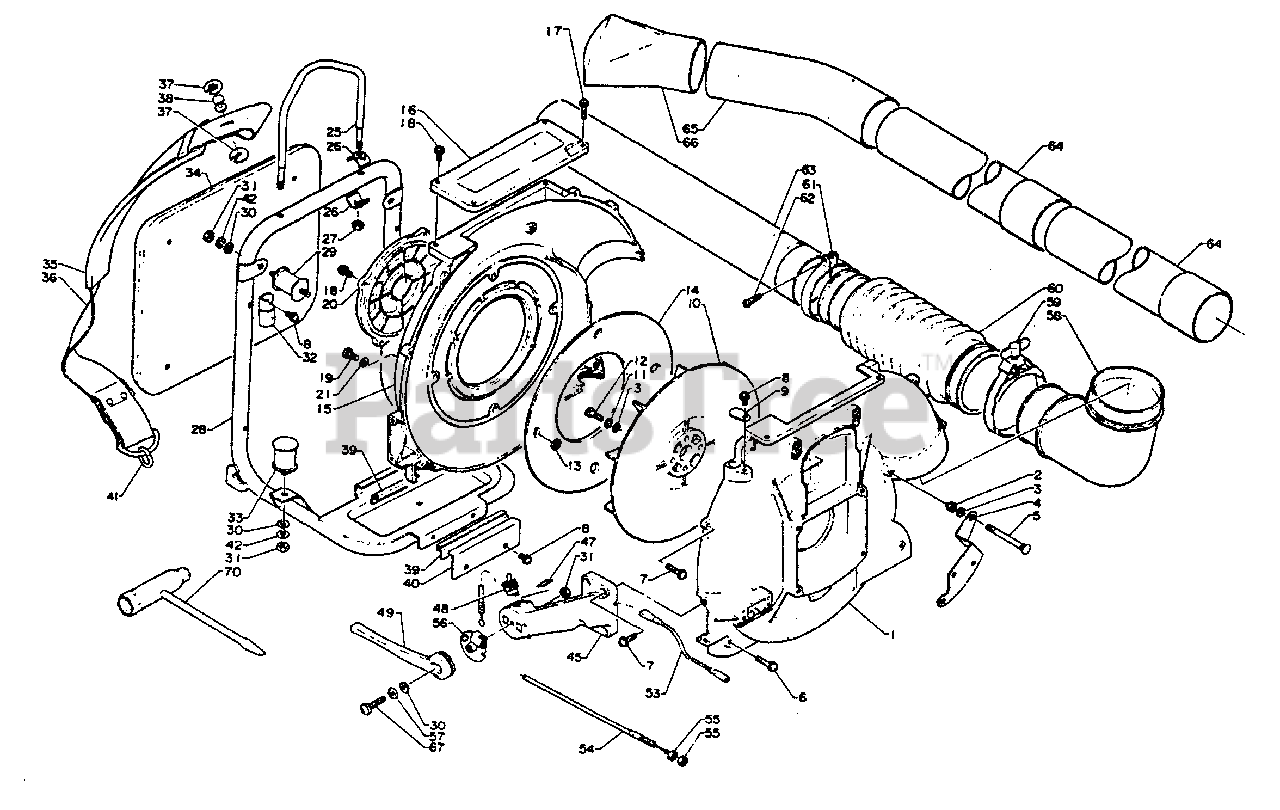

PB-400 - Echo Backpack Blower (SN: 001001 - 054522) Fancase, BackPack Band, Frame, Thr Control, Switch, Blowing Pipe, Tool Parts Diagram

Backpack Blower

Fancase, BackPack Band, Frame, Thr Control, Switch, Blowing Pipe, Tool Parts Diagram

  • Title

1

Echo 20010700760

COVER, FAN - OUTER
(Superseded to 20010700761)

$217.99

$

Usually ships in 2-4 days

0

2

Echo 21041901110

NUT - 5
(Superseded to 90053000005)

$0.99

$

In Stock, Qty 10

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 14570500760

BRACKET, MUFFLER COVER
(Superseded to 14570500761)

$7.99

$

Usually ships in 2-4 days

0

5

Echo 21041601110

BOLT, ELBOW

$19.99

$

In Stock, only 1 left!

0

6

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

8

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

9

Echo 20013600760

PLUG
(Superseded to Discontinued)

$

$

Not available

10

Echo 20001001110

FAN

$96.99

$

Usually ships in 2-4 days

0

11

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

12

Echo 90010005016

BOLT - 5X16

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90050200005

NUT - 5

$0.99

$

In Stock, Qty 13

0

14

Echo 20012501110

SEPARATER
(Superseded to Discontinued)

$

$

Not available

15

Echo 20010500760

COVER, FAN - INNER
(Superseded to 20010500761)

$186.99

$

Usually ships in 2-4 days

0

16

Echo 20014000760

PLATE
(Superseded to Discontinued)

$

$

Not available

17

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0

18

Echo 90024206015

SCREW - 6X15

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90010005012

BOLT - 5X12

$0.99

$

In Stock, Qty 5

0

20

Echo 20012401110

GUARD, DEBRIS
(Superseded to 200124-01111)

$14.99

$

Usually ships in 2-4 days

0

21

Echo 90060200005

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 30061000760

ARM

$13.99

$

Usually ships in 2-4 days

0

26

Echo 30061200760

ADAPTOR

$2.49

$

Usually ships in 2-4 days

0

27

Echo 30061300760

LOCKNUT - 6
(Superseded to 90056250006)

$1.49

$

Usually ships in 2-4 days

0

28

Echo 30000500760

FRAME, BACKPACK
(Superseded to 30000500761)

$152.99

$

Usually ships in 2-4 days

0

29

Echo 20091001110

CUSHION

$12.99

$

In Stock, Qty 6

0

30

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

31

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

32

Echo 30022000760

BRACKET, CUSHION

$1.99

$

Usually ships in 2-4 days

0

33

Echo 20091601110

CUSHION

$11.99

$

Usually ships in 2-4 days

0

34

Echo 30010500760

CUSHION
(Superseded to 30010500761)

$70.99

$

Usually ships in 2-4 days

0

Echo 30030200660

BACKPACK STRAP ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 35-36

$

$

Not available

35

Echo 30032201110

BACKPACK STRAP ASSY
(Superseded to Discontinued)

$

$

Not available

36

Echo 30030000760

BACKPACK STRAP ASSY
(Superseded to 30030000761)

$31.99

$

In Stock, Qty 12

0

37

Echo 30032800310

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

38

Echo 30033300310

CLIP

$1.49

$

Usually ships in 2-4 days

0

39

Echo 13192000760

CUSHION, FUEL TANK
(Superseded to 13100202260)

$

$

Not available

40

Echo 13191000760

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

41

Echo 30031901610

RING, STRAP
(Superseded to 30031901611)

$0.99

$

In Stock, Qty 5

0

42

------------------

UNKNOWN

$

$

Not available

45

Echo 17812200761

MOUNT, THROTTLE LEVER

$18.99

$

In Stock, only 1 left!

0

47

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 7

0

48

Echo 16340004521

IGNITION SWITCH ASSY

$9.99

$

Usually ships in 2-4 days

0

49

Echo 17801000660

TRIGGER, THROTTLE
(Superseded to 17801000661)

$5.99

$

Usually ships in 2-4 days

0

53

Echo 15012100761

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

54

Echo 17800100761

CABLE, THROTTLE

$10.99

$

Usually ships in 2-4 days

0

55

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

56

Echo 17812300760

BRACKET

$6.49

$

Usually ships in 2-4 days

0

57

Echo 17812900660

WASHER
(Superseded to 90060700006)

$0.99

$

In Stock, only 3 left!

0

58

Echo 21001101110

TUBE, BLOWER - ELBOW
(Superseded to Discontinued)

$

$

Not available

67

Echo 90022006025

SCREW - 6X25

$0.99

$

In Stock, only 1 left!

0

59

Echo 21040701110

CLAMP
(Superseded to V495001170)

$8.99

$

Usually ships in 2-4 days

0

60

Echo 21001201112

TUBE, BLOWER - FLEXIBLE

$72.99

$

In Stock, Qty 6

0

61

Echo 21040601110

CLAMP
(Superseded to 21040001110)

$7.49

$

Usually ships in 2-4 days

0

62

Echo 90022005020

SCREW - 5X20

$0.99

$

In Stock, only 1 left!

0

63

Echo 21200501160

TUBE, BLOWER - SWIVEL
(Superseded to Discontinued)

$

$

Not available

64

Echo 21001500660

TUBE, BLOWER - STRAIGHT
(Superseded to 21001501160)

Note: ITEM NO LONGER AVAILABLE

$

$

Not available

65

Echo 21002300210

TUBE, BLOWER - CURVED

$10.99

$

In Stock, Qty 6

0

66

Echo 21003100660

NOZZLE - FAN HEAD
(Superseded to 21003101060)

Note: OPTIONAL

$9.99

$

In Stock, Qty 10

0

70

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

Echo PBAV-400

PBAV-400 Vacuum

Note: Accessory

$

$

Currently unavailable

Echo 1960001

BAG, DEBRIS

Note: Accessory

$

$

Currently unavailable

Echo PBAM-400

PBAM-400 MISTER

Note: Accessory

$

$

Currently unavailable

Echo 99944100010

RAIN GUTTER KIT

Note: Accessory

$73.99

$

Usually ships in 2-4 days

0

Echo 99944100020

BLOWER TUBE HANDLE

Note: Accessory

$

$

Not available
