PB-400 E - Echo Backpack Blower (Type 1E) (SN: 001001 - 509500) Mister Attachment PBAM-400/PBAM-400E Parts Diagram

Backpack Blower (Type 1E)

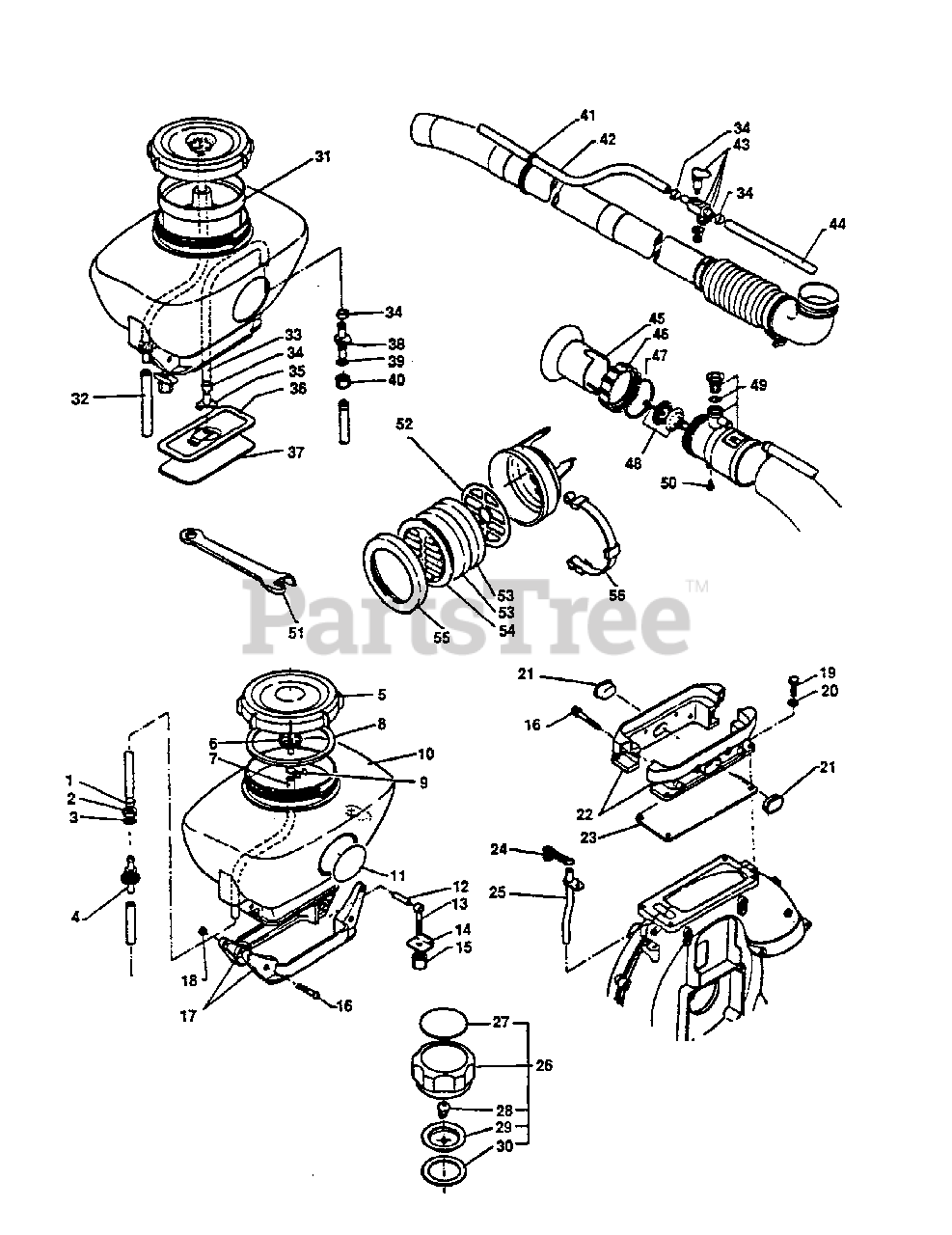

Mister Attachment PBAM-400/PBAM-400E Parts Diagram

  • Title
1

Echo 35701300210

CLAMP
(Superseded to 13201314010)

$3.49

$

Usually ships in 2-4 days

0

2

Echo 36301900310

NUT - 12

$1.99

$

Usually ships in 2-4 days

0

3

Echo 36301800310

WASHER - 12
(Superseded to V309000170)

$0.99

$

In Stock, only 1 left!

0

4

Echo 36301700310

CONNECTOR, PIPE

$2.99

$

Usually ships in 2-4 days

0

5

Echo 25000102811

CAP, CHEMICAL TANK
(Superseded to 25000102810)

Note: Includes ITEM 6

$24.99

$

Usually ships in 2-4 days

0

6

Echo 25001300310

VENT, TANK

$2.49

$

Usually ships in 2-4 days

0

7

Echo 36301400310

HOSE, FLUID

$3.99

$

Usually ships in 2-4 days

0

8

Echo 25001101110

GASKET, CAP

$8.49

$

In Stock, Qty 7

0

9

Echo 35701300210

CLAMP
(Superseded to 13201314010)

$3.49

$

Usually ships in 2-4 days

0

10

Echo 25000003511

TANK, CHEMICAL

Note: Includes ITEM 11

$128.99

$

Usually ships in 2-4 days

0

11

Echo 89011201110

LABEL
(Superseded to Discontinued)

$

$

Not available

$2.49

$

Usually ships in 2-4 days

0

$3.99

$

Usually ships in 2-4 days

0

14

$2.49

$

Usually ships in 2-4 days

0

$5.49

$

Usually ships in 2-4 days

0

16

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

17

Echo 25090001810

HOLDER
(Superseded to Discontinued)

$

$

Not available

18

$0.99

$

In Stock, Qty 13

0

19

Echo 90010006020

BOLT - 6X20

$0.99

$

Usually ships in 2-4 days

0

20

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

$1.99

$

Usually ships in 2-4 days

0

22

Echo 27000003510

CLAMP KIT

$59.99

$

Usually ships in 2-4 days

0

23

$9.49

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

25

Echo 36301501110

HOSE, AIR

$5.49

$

Usually ships in 2-4 days

0

26

Echo 13160002260

CAP ASSY
(Superseded to 13100406610)

Note: Includes items 27 - 30

$11.99

$

In Stock, Qty 5

0

27

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

$11.99

$

In Stock, only 1 left!

0

29

Echo 13101503331

HOLDER, VENT

$3.99

$

In Stock, only 1 left!

0

30

Echo 13101604630

GASKET, CAP
(Superseded to 13101604631)

$3.49

$

In Stock, Qty 5

0

31

Echo 25421010510

FILTER, CHEMICAL TANK

$10.99

$

Usually ships in 2-4 days

0

32

Echo 36302402410

HOSE, AIR

$2.99

$

Usually ships in 2-4 days

0

33

Echo 35501101110

HOSE, FLUID
(Superseded to 38201101110)

$2.99

$

Usually ships in 2-4 days

0

34

Echo 35702301110

CLIP - 13
(Superseded to V495000310)

$0.99

$

Usually ships in 2-4 days

0

35

Echo 35501200910

MOUTH, SUCTION

$

$

Not available

36

Echo 25301001111

Plate, Base

$23.99

$

Usually ships in 2-4 days

0

37

$7.49

$

Usually ships in 2-4 days

0

38

Echo 35701001110

CONNECTOR, PIPE

$3.49

$

Usually ships in 2-4 days

0

39

$1.49

$

Usually ships in 2-4 days

0

40

Echo 35701501110

NUT, CONNECTOR

$3.49

$

Usually ships in 2-4 days

0

41

Echo 35791100110

CLIP
(Superseded to 35791100111)

$1.99

$

Usually ships in 2-4 days

0

42

Echo 35701102810

HOSE
(Superseded to Discontinued)

$

$

Not available

43

Echo 35810001110

VALVE ASSY
(Superseded to 35810001113)

$13.99

$

Usually ships in 2-4 days

0

44

Echo 35701202810

HOSE, FLUID
(Superseded to Discontinued)

$

$

Not available

Echo 21250001111

NOZZLE ASSY
(Superseded to 21250001112)

Note: Includes items 45 - 50

$38.99

$

Usually ships in 2-4 days

0

45

$11.99

$

Usually ships in 2-4 days

0

$3.99

$

Usually ships in 2-4 days

0

$1.49

$

Usually ships in 2-4 days

0

48

$8.49

$

Usually ships in 2-4 days

0

49

Echo 21250101111

CONTROL, VOLUME

$21.99

$

Usually ships in 2-4 days

0

50

Echo 90024605012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

51

Echo 89512001110

SPANNER - 10X21mm
(Superseded to Discontinued)

$

$

Not available

52

Echo 13031900760

RETAINER, AIR FILTER

Note: PB-400E ONLY

$2.49

$

In Stock, only 1 left!

0

53

Echo 13031000760

FILTER, AIR

Note: PB-400E ONLY

$3.99

$

In Stock, Qty 20+

0

54

Echo 13031304620

COVER, AIR FILTER

Note: PB-400E ONLY

$3.49

$

In Stock, only 1 left!

0

55

Echo 13034104620

COVER, AIR FILTER

Note: PB-400E ONLY

$6.49

$

In Stock, only 1 left!

0

56

Echo 13042500761

CLAMP

Note: PB-400E ONLY

$10.99

$

In Stock, only 1 left!

0
