PB-400 E - Echo Backpack Blower (Type 1E) (SN: 001001 - 509500) Ignition, Starter, Exhaust Parts Diagram

Backpack Blower (Type 1E)

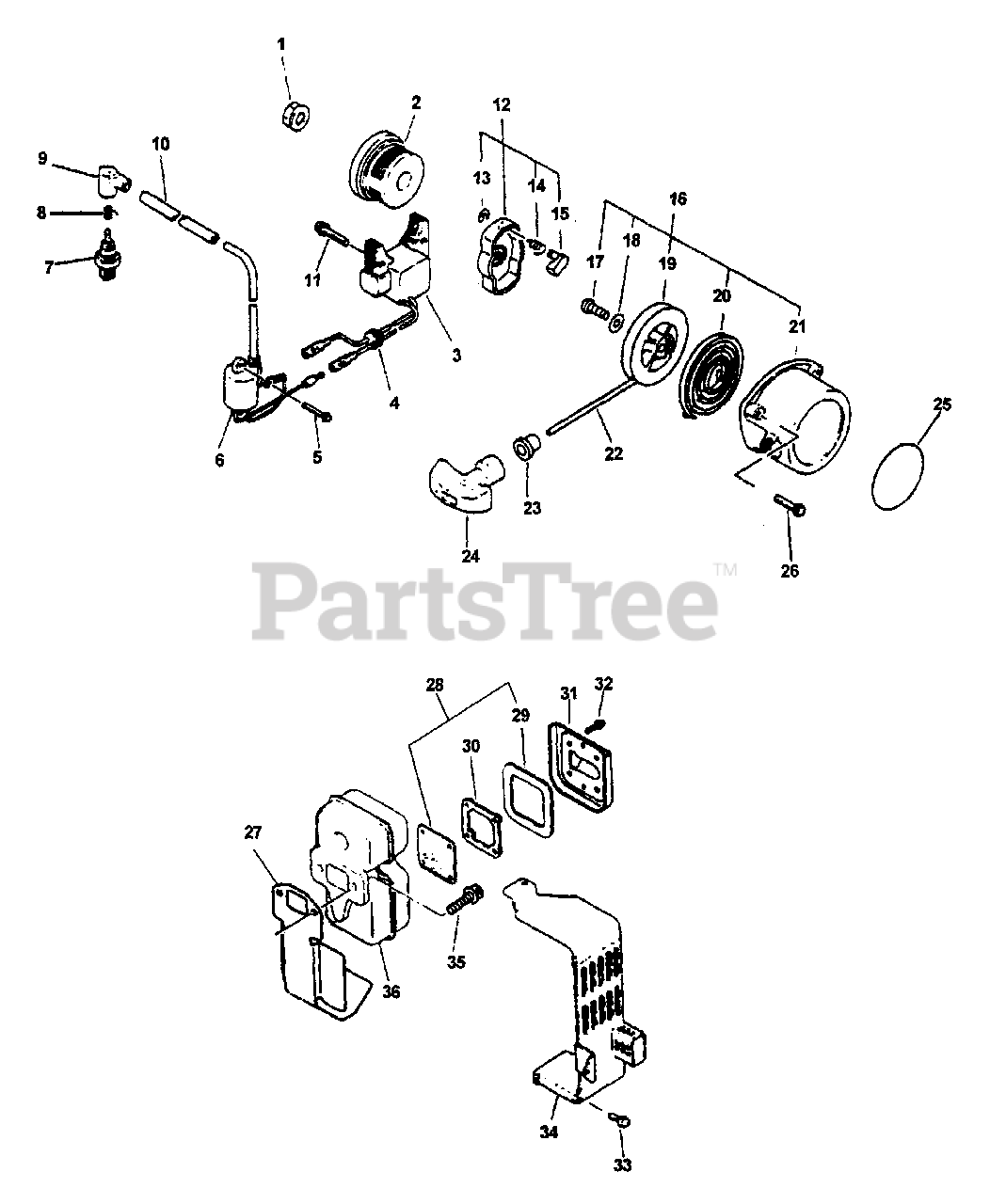

Ignition, Starter, Exhaust Parts Diagram

  • Title
1

Echo 90051900010

NUT - 10 -- FLANGE

$1.99

$

In Stock, only 3 left!

0

2

Echo 15680002111

FLYWHEEL

$110.99

$

Usually ships in 2-4 days

0

3

Echo 15660102911

COIL, IGNITION
(Superseded to 15660102912)

$103.99

$

In Stock, only 4 left!

0

4

$0.99

$

In Stock, only 1 left!

0

5

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

6

Echo 15662602111

COIL, IGNITION

$90.99

$

In Stock, only 1 left!

0

7

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

8

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

9

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, only 1 left!

0

11

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

12

Echo 17720202110

STARTER PAWL ASSY

Note: Includes ITEMS 13-15

$16.99

$

In Stock, only 2 left!

0

13

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

14

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

15

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

16

Echo 17720002110

STARTER ASSY

Note: Includes ITEMS 17-24

$91.99

$

Usually ships in 2-4 days

0

17

$3.99

$

In Stock, Qty 14

0

18

$1.49

$

Usually ships in 2-4 days

0

19

Echo 17721543130

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

20

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

21

Echo 17723202110

CASE, STARTER

$46.99

$

Usually ships in 2-4 days

0

22

------------------

ROPE, STARTER - 4X950

Note: RePower BULK OPTION: 99944450000

$

$

Not available

23

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

24

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

25

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

26

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

27

Echo 14551002261

GASKET, EXHAUST

Note: USE GASKET KIT 88900002263

$13.99

$

In Stock, only 1 left!

0

28

Echo 14580100761

SCREEN, SPARK ARRESTOR

Note: Includes ITEM 29

$8.99

$

Usually ships in 2-4 days

0

29

Echo 14586602261

GASKET, EXHAUST

Note: USE GASKET KIT 88900002263

$2.99

$

In Stock, only 1 left!

0

30

Echo 14588200761

RETAINER, SCREEN

$4.49

$

In Stock, only 1 left!

0

31

Echo 14586302261

GUIDE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

32

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

33

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

34

Echo 14587100765

COVER, EXHAUST

$41.99

$

Usually ships in 2-4 days

0

35

Echo 90016206020

SCREW - 6X20

$1.49

$

In Stock, only 4 left!

0

36

$44.99

$

Usually ships in 2-4 days

0
