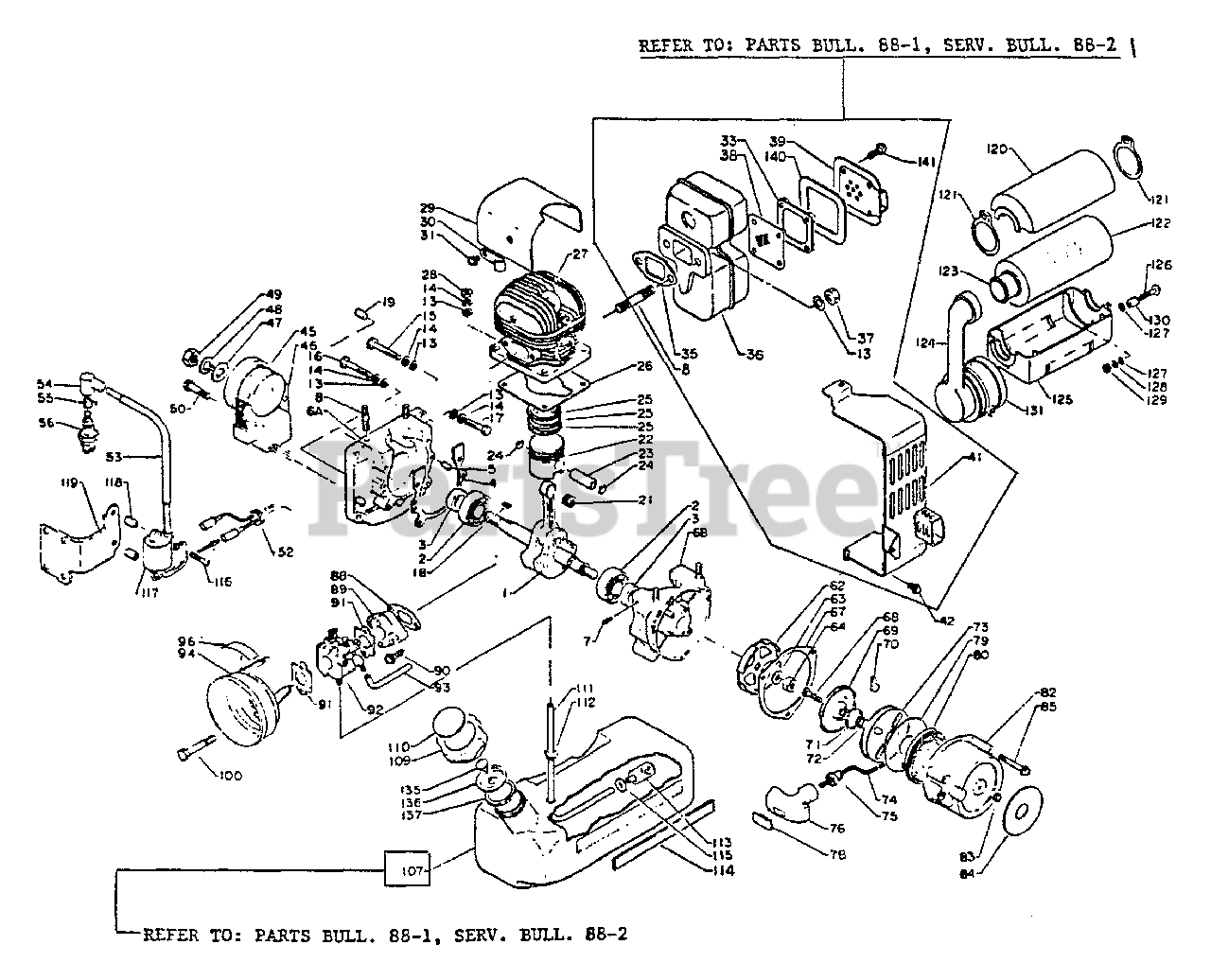

PB-400 E - Echo Backpack Blower (SN: 001001 - 128095) Engine,Intake,Exhaust,Crankcase,Air Cleaner,Strtr,Ignition,Exh,Fuel Sys Parts Diagram

Backpack Blower

Engine,Intake,Exhaust,Crankcase,Air Cleaner,Strtr,Ignition,Exh,Fuel Sys Parts Diagram

  • Title

1

Echo 10010001110

CRANKSHAFT ASSY
(Superseded to 10010001111)

$

$

Not available

2

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

3

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 5

0

4

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit, P/N 88900002262

$

$

Not available

5

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

6

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: Consists of 6A, 6B and 7

$

$

Not available

6A

Echo 10020000760

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 6, Crankcase set, P/N 10020000760

$

$

Not available

7

Echo 13011312330

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

8

Echo 10025400130

STUD

$1.49

$

Usually ships in 2-4 days

0

13

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

14

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

15

Echo 10024401111

BOLT

$1.49

$

Usually ships in 2-4 days

0

16

Echo 10024401111

BOLT

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90010006025

BOLT - 6X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

19

Echo 10061402110

PLUG

$0.99

$

In Stock, only 1 left!

0

21

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

22

Echo 10001001110

PISTON
(Superseded to 10001002410)

$

$

Not available

23

Echo 10001300410

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

24

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

25

Echo 10001101110

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

26

Echo 10101001111

GASKET, CYLINDER
(Superseded to Discontinued)

Note: Use Gasket Kit, P/N 88900002262

$

$

Not available

27

Echo 10100000760

CYLINDER
(Superseded to 10100000761)

$175.99

$

Usually ships in 2-4 days

0

28

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

29

Echo 10151401110

SHIELD, CYLINDER

$8.99

$

Usually ships in 2-4 days

0

30

Echo 15911001110

CLAMP

$1.49

$

Usually ships in 2-4 days

0

31

Echo 90010006010

BOLT - 6X10

$0.99

$

In Stock, Qty 10

0

33

Echo 14588200761

RETAINER, SCREEN

$4.49

$

In Stock, only 1 left!

0

35

Echo 14551000761

GASKET, EXHAUST
(Superseded to 14551000762)

$

$

Not available

36

Echo 14580600762

MUFFLER

$44.99

$

Usually ships in 2-4 days

0

37

Echo 90056000006

LOCKNUT

$1.49

$

In Stock, Qty 20+

0

38

Echo 14580100761

SCREEN, SPARK ARRESTOR

$8.99

$

Usually ships in 2-4 days

0

39

Echo 14586302260

GUIDE, EXHAUST
(Superseded to 14586302261)

$

$

Not available

41

Echo 14587100763

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

42

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

45

Echo 15080102910

FLYWHEEL
(Superseded to 15080002110)

$110.99

$

Usually ships in 2-4 days

0

46

Echo 15060102910

COIL, IGNITION
(Superseded to 15660102911)

$103.99

$

In Stock, only 4 left!

0

47

Echo 10013601110

WASHER

$1.49

$

Usually ships in 2-4 days

0

48

Echo 10013301110

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

49

Echo 10013401110

NUT

$1.99

$

Usually ships in 2-4 days

0

50

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

52

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 1 left!

0

53

Echo 15011101110

TUBE

$0.99

$

In Stock, only 1 left!

0

54

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

55

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

56

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

62

Echo 17721000910

CATCHER, PAWL

$7.49

$

Usually ships in 2-4 days

0

63

Echo 17501500120

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

64

Echo 10014700910

NUT

$1.49

$

Usually ships in 2-4 days

0

67

Echo 10061501110

GASKET, STARTER

$1.49

$

In Stock, only 1 left!

0

Echo 17720001110

STARTER ASSY
(Superseded to Discontinued)

Note: Consists of 68-80, 82 and 83

$

$

Not available

68

Echo 17723601110

SCREW

$4.49

$

Usually ships in 2-4 days

0

69

Echo 17721100910

PLATE, FRICTION

$6.99

$

In Stock, only 1 left!

0

70

Echo 17721800910

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

71

Echo 17723400910

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

72

Echo 17723300910

SPRING
(Superseded to Discontinued)

$

$

Not available

73

Echo 17721501110

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

74

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$5.99

$

In Stock, only 1 left!

0

75

Echo 17722701220

GUIDE, ROPE
(Superseded to 17722705530)

$3.99

$

In Stock, Qty 10

0

76

Echo 17722801111

GRIP, STARTER
(Superseded to 17722801110)

$7.49

$

Usually ships in 2-4 days

0

78

Echo 17724401110

CAP

$2.99

$

Usually ships in 2-4 days

0

79

Echo 17723500910

PLATE, STARTER

$4.99

$

Usually ships in 2-4 days

0

80

Echo 17722001110

SPRING, REWIND
(Superseded to Discontinued)

$

$

Not available

82

Echo 17723201110

CASE, STARTER

$47.99

$

Usually ships in 2-4 days

0

83

Echo 17723701110

NUT - 5 -- CAP
(Superseded to 90053000005)

$0.99

$

In Stock, Qty 10

0

84

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

85

Echo 90024205042

SCREW - 5X40

$0.99

$

In Stock, only 4 left!

0

88

Echo 13001000761

GASKET, INTAKE
(Superseded to 13001000762)

$1.49

$

In Stock, Qty 20+

0

89

Echo 13000700760

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

90

Echo 90024206025

SCREW - 6X25

$0.99

$

Usually ships in 2-4 days

0

91

Echo 13001606231

GASKET, INTAKE
(Superseded to 13001606232)

$0.99

$

In Stock, Qty 12

0

92

Echo 12300000760

CARBURETOR WA-55
(Superseded to 12300000761)

$91.99

$

In Stock, only 2 left!

0

93

Echo 13011000760

PIPE - IMPULSE
(Superseded to V471001880)

$1.99

$

In Stock, Qty 20+

0

94

Echo 13030700762

CASE, AIR FILTER
(Superseded to 13030700763)

$22.99

$

Usually ships in 2-4 days

0

96

Echo 89015800760

LABEL - CHOKE
(Superseded to X506000010)

$1.49

$

In Stock, only 3 left!

0

100

Echo 13002100761

BOLT
(Superseded to 90022005050)

$0.99

$

Usually ships in 2-4 days

0

107

Echo 13100202260

TANK, FUEL
(Superseded to 13100202261)

$

$

Not available

Echo 13160002260

CAP ASSY
(Superseded to 13100406610)

Note: Consists of 109, 110, 135-137

$11.99

$

In Stock, Qty 6

0

109

Echo 13160407132

CAP ASSY
(Superseded to 13100403910)

$

$

Not available

110

Echo 89015412730

LABEL - FUEL MIX
(Superseded to 89014706160)

$

$

Not available

135

Echo 13131400330

VENT

$11.99

$

In Stock, only 1 left!

0

136

Echo 13101503331

HOLDER, VENT

$3.99

$

In Stock, only 1 left!

0

137

Echo 13101604630

GASKET, CAP
(Superseded to 13101604631)

$3.49

$

In Stock, Qty 5

0

111

Echo 13200700760

PIPE, FUEL - SPIRAL

$5.99

$

In Stock, Qty 14

0

112

Echo 13211511131

GROMMET

$2.49

$

In Stock, Qty 18

0

113

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

114

Echo 89013500760

LABEL - NAME
(Superseded to Discontinued)

$

$

Not available

115

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

116

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

117

Echo 15062602910

COIL, IGNITION
(Superseded to 15062602110)

$90.99

$

In Stock, only 1 left!

0

118

Echo 15931302110

SPACER

$1.49

$

Usually ships in 2-4 days

0

119

Echo 15931002260

BRACKET

$7.49

$

Usually ships in 2-4 days

0

Echo 13030400761

AIR CLEANER ASSY
(Superseded to 13030400762)

Note: Consists of 120-131

$100.99

$

Usually ships in 2-4 days

0

120

Echo 13032600760

COVER, AIR FILTER
(Superseded to 13032600761)

$12.99

$

In Stock, only 1 left!

0

121

Echo 13034100760

CLAMP

$6.49

$

In Stock, Qty 8

0

122

Echo 13031700760

FILTER, AIR

$41.99

$

In Stock, Qty 20+

0

123

Echo 13031100760

FILTER, AIR
(Superseded to 13031100761)

$6.99

$

Usually ships in 2-4 days

0

124

Echo 13071100761

ADAPTOR, INTAKE
(Superseded to 13071102260)

$44.99

$

In Stock, Qty 5

0

125

Echo 13031800760

CASE, AIR FILTER
(Superseded to 13031800761)

$15.99

$

Usually ships in 2-4 days

0

126

Echo 13034700761

BOLT
(Superseded to Discontinued)

$

$

Not available

127

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

128

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

129

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

130

Echo 13034900760

SPACER

$0.99

$

Usually ships in 2-4 days

0

131

Echo 13071300760

CLAMP
(Superseded to 13071302260)

$6.99

$

In Stock, only 1 left!

0

140

Echo 14586600760

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

141

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0
