PB 3410 - Shindaiwa Power Broom Intake / Cylinder / Crankcase Parts Diagram

Power Broom

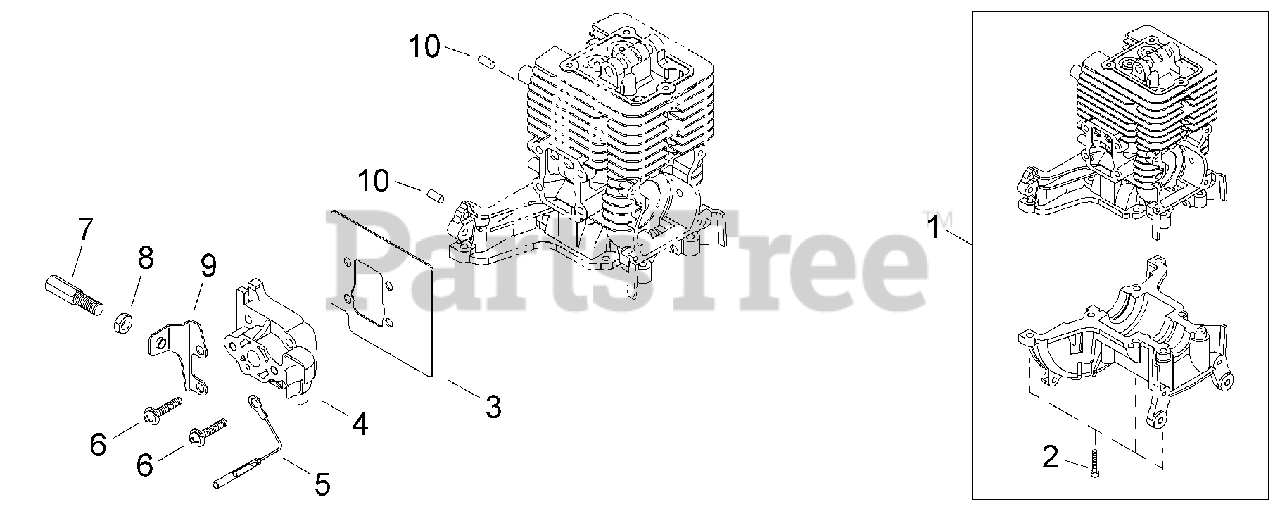

Intake / Cylinder / Crankcase Parts Diagram

  • Title
1

Echo 60907-98330

CYLINDER BLOCK SET
(Superseded to P021027540)

$128.99

$

In Stock, only 1 left!

0

2

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, Qty 6

0

3

Echo 62907-12220

DEFLECTOR, HEAT
(Superseded to V103000980)

$2.99

$

Usually ships in 2-4 days

0

4

Echo 62907-12311

VALVE, REED
(Superseded to A024000020)

$47.99

$

Usually ships in 2-4 days

0

5

Echo 14350-01101

LEAD - GROUND
(Superseded to V485001260)

$3.49

$

Usually ships in 2-4 days

0

6

Echo 11206-05255

SCREW - 5X25
(Superseded to 9158205025)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 62902-83310

NUT, CABLE ADJUST
(Superseded to C486000030)

$16.99

$

In Stock, only 1 left!

0

8

Echo 01501-06048

LOCKNUT - 6
(Superseded to 9201806000)

$0.99

$

Usually ships in 2-4 days

0

9

Echo 62901-83310

BRACKET, THROTTLE CABLE

$2.99

$

Usually ships in 2-4 days

0

10

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0
