PB 340 - Paramount Blower, Electric BLOWER ASSEMBLY Parts Diagram

Blower, Electric

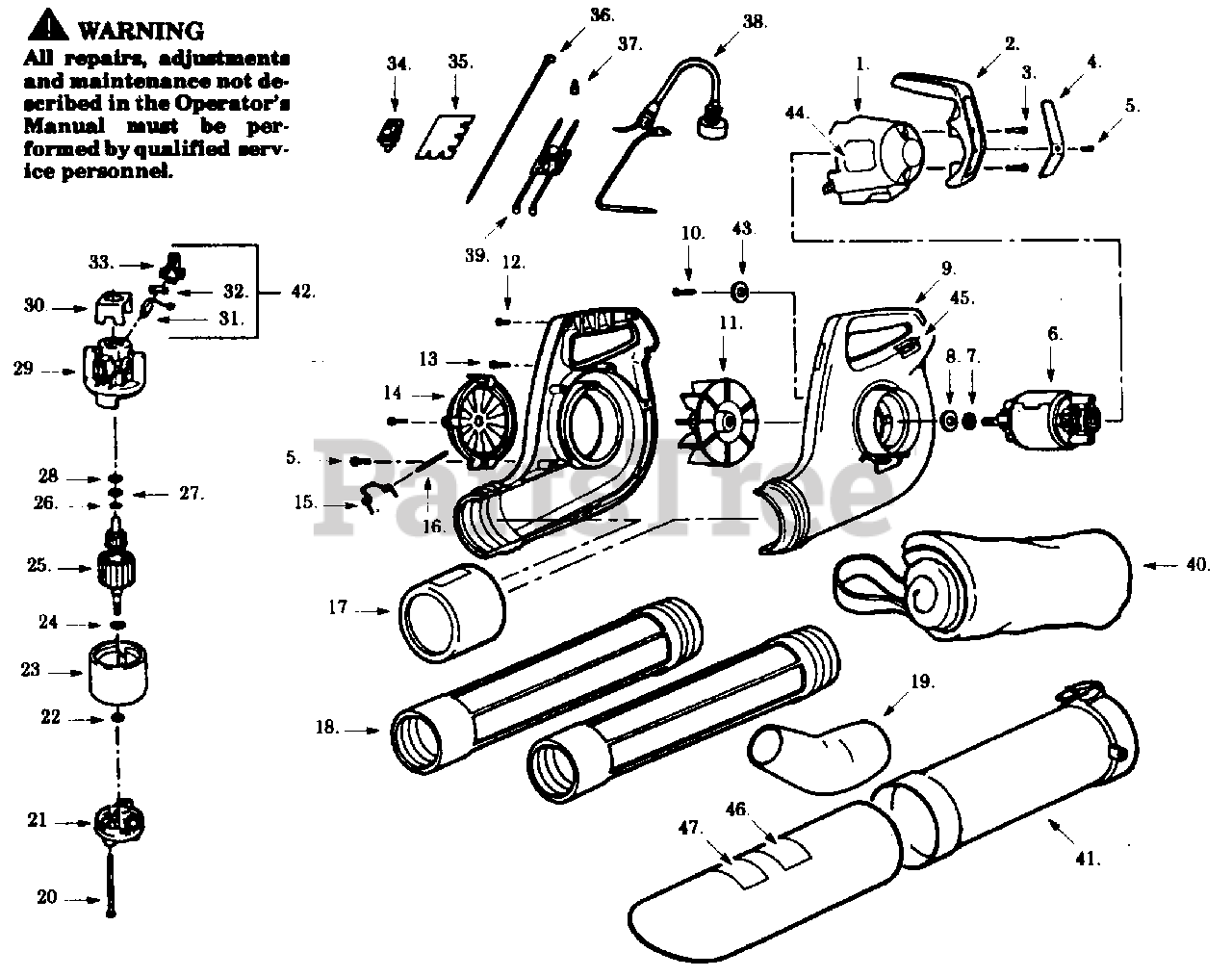

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534319601

Motor Cover

$

$

Not available

2

Poulan 534319705

Handle

$

$

Not available

3

Poulan 534015772

Screw

$

$

Not available

4

Poulan 534404355

Plate Warning

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 534193700

Screw

$

$

Not available

6

Poulan 534992001

Motor

$

$

Not available

7

Poulan 534747011

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534136100

Washer

$

$

Not available

9

Poulan 534972301

L.H/R.H. Housing

$

$

Not available

10

Poulan 534136401

Screw

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 534398315

Impeller Ass'y.

$

$

Not available

12

Poulan 534184700

Screw

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 534790300

Screw

$

$

Not available

14

Poulan 534543305

Inlet Cover

$

$

Not available

15

Poulan 534475900

Spring

$3.99

$

In Stock, only 1 left!

0

16

Poulan 534327201

Hinge Pin

$4.99

$

In Stock, only 1 left!

0

17

Poulan 534408415

Ferrule Sleeve

$

$

Not available

18

Poulan 534352705

Outlet Tube

$

$

Not available

19

Poulan 534373405

Curved Nozzle

$

$

Not available

20

Poulan 534228700

Screw

$

$

Not available

21

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

22

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 534227001

Field Ass'y.

$30.99

$

Usually ships in 3-10 days

0

24

Poulan 534747002

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 534992401

Armature Ass'y.

$46.99

$

Usually ships in 3-10 days

0

26

Poulan 534246702

Retaining Ring

$

$

Not available

27

Poulan 534228802

Washer

$

$

Not available

28

Poulan 534238903

Washer

$

$

Not available

29

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

30

Poulan 534226000

Insulator

$

$

Not available

31

Poulan 534227800

Brush

$

$

Not available

32

Poulan 534228000

Brush Spring

$

$

Not available

33

Poulan 534227700

Brush Holder

$

$

Not available

34

Poulan 534332506

On-Off Switch Ass'y.

$

$

Not available

35

Poulan 534334800

Mounting Board

$

$

Not available

36

Poulan 534433800

Leadwire Ass'y.

$

$

Not available

37

Poulan 534253201

Wire Nut

$1.49

$

Usually ships in 3-10 days

0

38

Poulan 534193202

Power Cord Ass'y.

$

$

Not available

39

Poulan 534345405

P.C. Board Ass'y.

$14.99

$

Usually ships in 3-10 days

0

40

Poulan 534339900

Vacuum Bag

$

$

Not available

41

Poulan 534528705

Vacuum Tube

$

$

Not available

42

Poulan 534450400

Brush Kit (Incl. 31-33)

$

$

Not available

43

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 534991800

Motor Cover Label (Not a serviceable part)

$

$

Not available

45

Poulan 534500300

Switch Position Label

$

$

Not available

46

Poulan 534100501

Name Plate Label (Not a serviceable part)

$

$

Not available

47

Poulan 534869300

Warning Label

$

$

Not available

48

Poulan 534887250

Operator Manual

Note: Not Shown.

$

$

Not available

49

Poulan 534825318

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
