PB-300 E - Echo Backpack Blower (SN: 0000000 - 0049616) Intake, Exhaust, Air Cleaner Parts Diagram

Backpack Blower

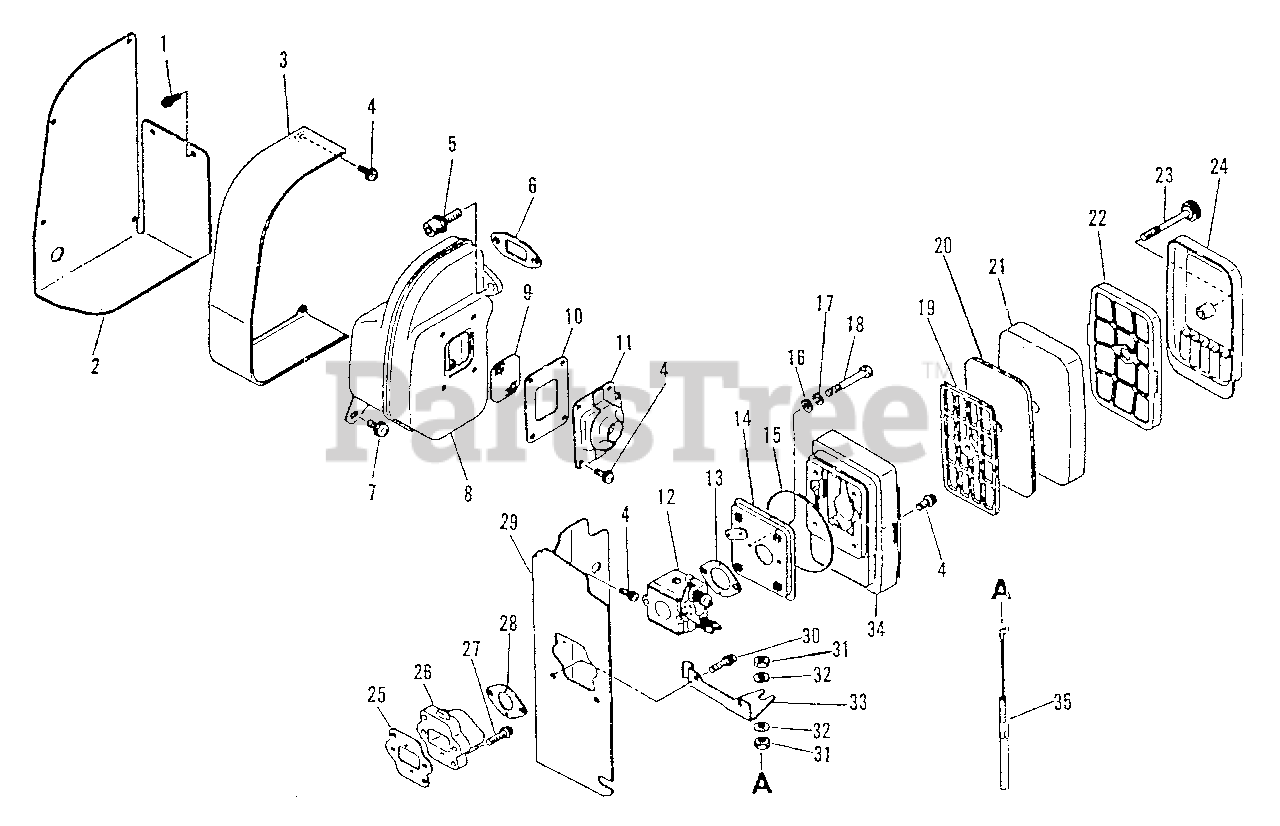

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
1

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

2

Echo 10027003461

INSULATOR
(Superseded to Discontinued)

$

$

Not available

3

Echo 14563103460

COVER, MUFFLER

$12.99

$

Usually ships in 2-4 days

0

4

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

5

Echo 90016206022

SCREW - 6X20
(Superseded to 90010506022)

$

$

Not available

6

Echo 14551003461

GASKET, EXHAUST

$3.49

$

Usually ships in 2-4 days

0

7

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 14580503460

MUFFLER

Note:

$82.99

$

Usually ships in 2-4 days

0

9

Echo 14586203460

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 2 left!

0

10

Echo 14586603461

GASKET, EXHAUST

$2.49

$

In Stock, only 1 left!

0

11

Echo 14587603460

GUIDE, EXHAUST

$5.99

$

Usually ships in 2-4 days

0

12

Echo 12300003460

CARBURETOR C1U-K17

$80.99

$

Usually ships in 2-4 days

0

13

Echo 13001603730

GASKET, INTAKE
(Superseded to 13001603731)

$0.99

$

In Stock, Qty 20+

0

14

Echo 13040503460

BRACKET
(Superseded to Discontinued)

$

$

Not available

15

Echo 13032010750

O-RING
(Superseded to Discontinued)

$

$

Not available

16

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

18

Echo 13002100761

BOLT
(Superseded to 90022005050)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 13031903460

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

20

Echo 13031703460

FILTER, AIR

$5.49

$

In Stock, only 4 left!

0

21

Echo 13031003460

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

22

Echo 13031103460

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

23

Echo 13040607460

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

24

Echo 13031307460

COVER, AIR FILTER - GRAY

$4.99

$

Usually ships in 2-4 days

0

25

Echo 13001003461

GASKET, INTAKE

$1.49

$

In Stock, only 4 left!

0

26

Echo 13000703460

INSULATOR, INTAKE
(Superseded to 13000703461)

$10.99

$

In Stock, only 3 left!

0

27

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

28

Echo 13001606433

GASKET, INTAKE
(Superseded to 13001606434)

$0.99

$

In Stock, Qty 20+

0

29

Echo 12902903461

INSULATOR

$11.99

$

Usually ships in 2-4 days

0

30

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

31

Echo 90060200006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

32

$0.99

$

In Stock, only 3 left!

0

33

Echo 17811107560

CLIP
(Superseded to Discontinued)

$

$

Not available

34

Echo 13030707460

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

35

Echo 17800103460

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available
