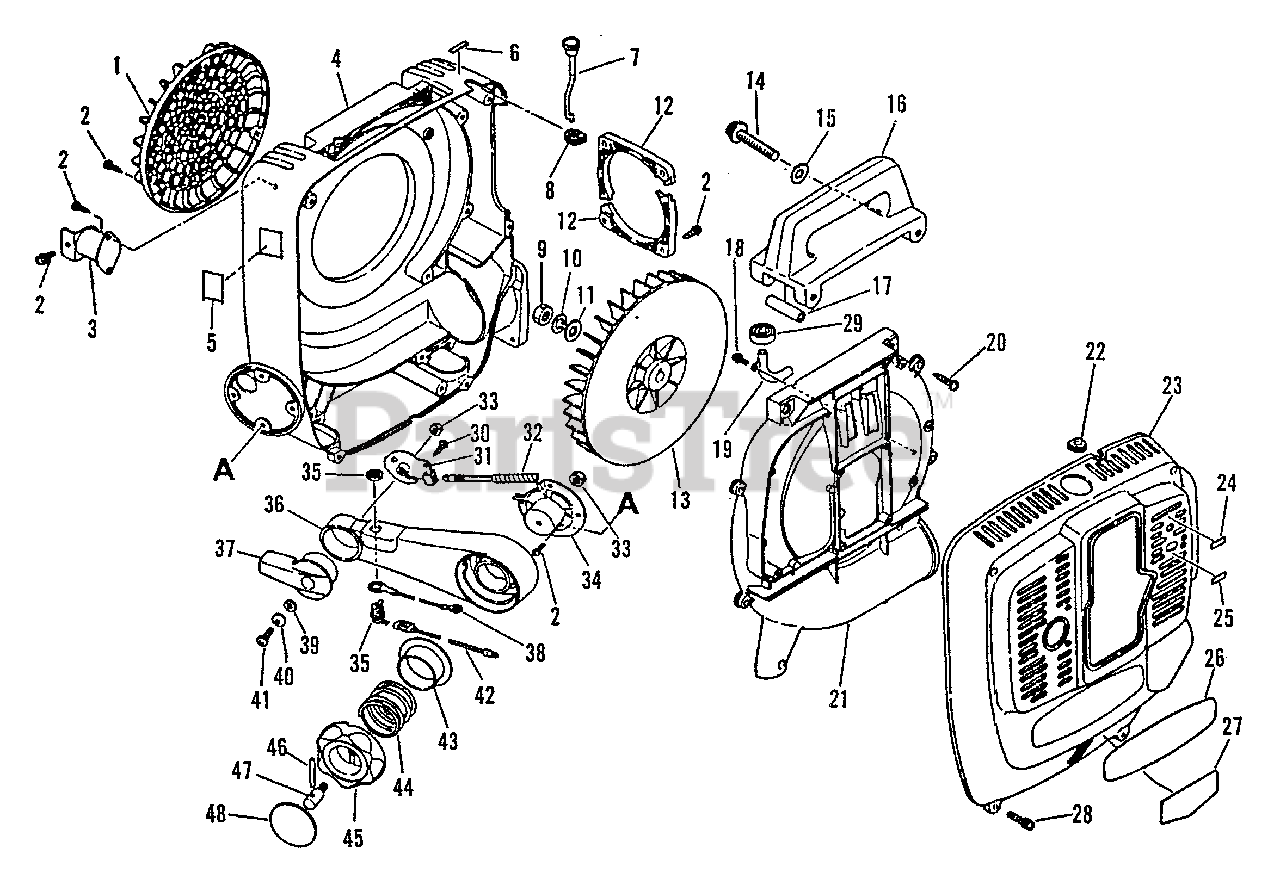

PB-300 E - Echo Backpack Blower (SN: 0000000 - 0049616) Fan, Housings, Handle, Throttle Parts Diagram

Backpack Blower

Fan, Housings, Handle, Throttle Parts Diagram

  • Title

1

Echo 20012400960

GUARD, DEBRIS

$14.99

$

Usually ships in 2-4 days

0

2

Echo 90025205014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

3

Echo 20090703460

CUSHION

$13.99

$

Usually ships in 2-4 days

0

4

Echo 20010507460

COVER, FAN - INNER
(Superseded to Discontinued)

$

$

Not available

5

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 19

0

6

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 17851003460

ROD, CHOKE
(Superseded to 17851003461)

$

$

Not available

8

Echo 17881003460

GROMMET

$1.49

$

In Stock, only 1 left!

0

9

Echo 90050100010

NUT - 10

$0.99

$

In Stock, Qty 5

0

10

Echo 90060500010

LOCKWASHER - 10

$0.99

$

In Stock, Qty 9

0

11

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

12

Echo 21002207460

RETAINER
(Superseded to Discontinued)

$

$

Not available

13

Echo 20001003460

FAN
(Superseded to Discontinued)

$

$

Not available

14

Echo 90022006070

SCREW - 6X70

$1.99

$

Usually ships in 2-4 days

0

15

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

16

Echo 30580503460

GRIP

$30.99

$

Usually ships in 2-4 days

0

17

Echo 30581403460

CUSHION

$1.49

$

Usually ships in 2-4 days

0

18

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

19

Echo 36301503460

PIPE - INTAKE
(Superseded to Discontinued)

$

$

Not available

20

Echo 90024905025

SCREW - 5X25
(Superseded to Discontinued)

$

$

Not available

21

Echo 20013503460

GUARD, FAN
(Superseded to Discontinued)

$

$

Not available

22

Echo 15661203460

GROMMET

$1.49

$

Usually ships in 2-4 days

0

23

Echo 10401607460

COVER, FAN - OUTER
(Superseded to Discontinued)

$

$

Not available

24

Echo 89018503460

LABEL - IDLE

$0.99

$

Usually ships in 2-4 days

0

25

Echo 89015803460

LABEL - CAUTION

$0.99

$

Usually ships in 2-4 days

0

26

Echo 89013800760

LABEL - ECHO

$3.99

$

Usually ships in 2-4 days

0

27

Echo 89011503461

LABEL - MODEL

$3.49

$

Usually ships in 2-4 days

0

28

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

29

Echo 36303003460

SEAL

$1.99

$

Usually ships in 2-4 days

0

30

Echo 90024504010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

31

Echo 17812303460

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

32

Echo 17812703460

WRAP, SPIRAL - 130mm

$1.99

$

In Stock, only 1 left!

0

33

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

34

Echo 17813403460

PLATE
(Superseded to Discontinued)

$

$

Not available

35

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, only 2 left!

0

36

Echo 17812206160

ARM, THROTTLE CONTROL

$17.99

$

Usually ships in 2-4 days

0

37

Echo 17801006160

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

38

Echo 16201003460

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

39

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

40

Echo 90060700006

WASHER

$0.99

$

In Stock, only 3 left!

0

41

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0

42

Echo 16202103460

LEAD - IGNITION

$2.99

$

Usually ships in 2-4 days

0

43

Echo 17813503460

SEAT, SPRING
(Superseded to Discontinued)

$

$

Not available

44

Echo 17813603460

SPRING

$6.49

$

Usually ships in 2-4 days

0

45

Echo 17813806160

KNOB
(Superseded to Discontinued)

$

$

Not available

46

Echo 90033040298

PIN

$1.49

$

In Stock, Qty 5

0

47

Echo 17813703460

SHAFT

$4.49

$

Usually ships in 2-4 days

0

48

Echo 89018607560

LABEL
(Superseded to Discontinued)

$

$

Not available
