PB-300 E - Echo Backpack Blower (SN: 0000000 - 0049616) Engine, Crankcase Parts Diagram

Backpack Blower

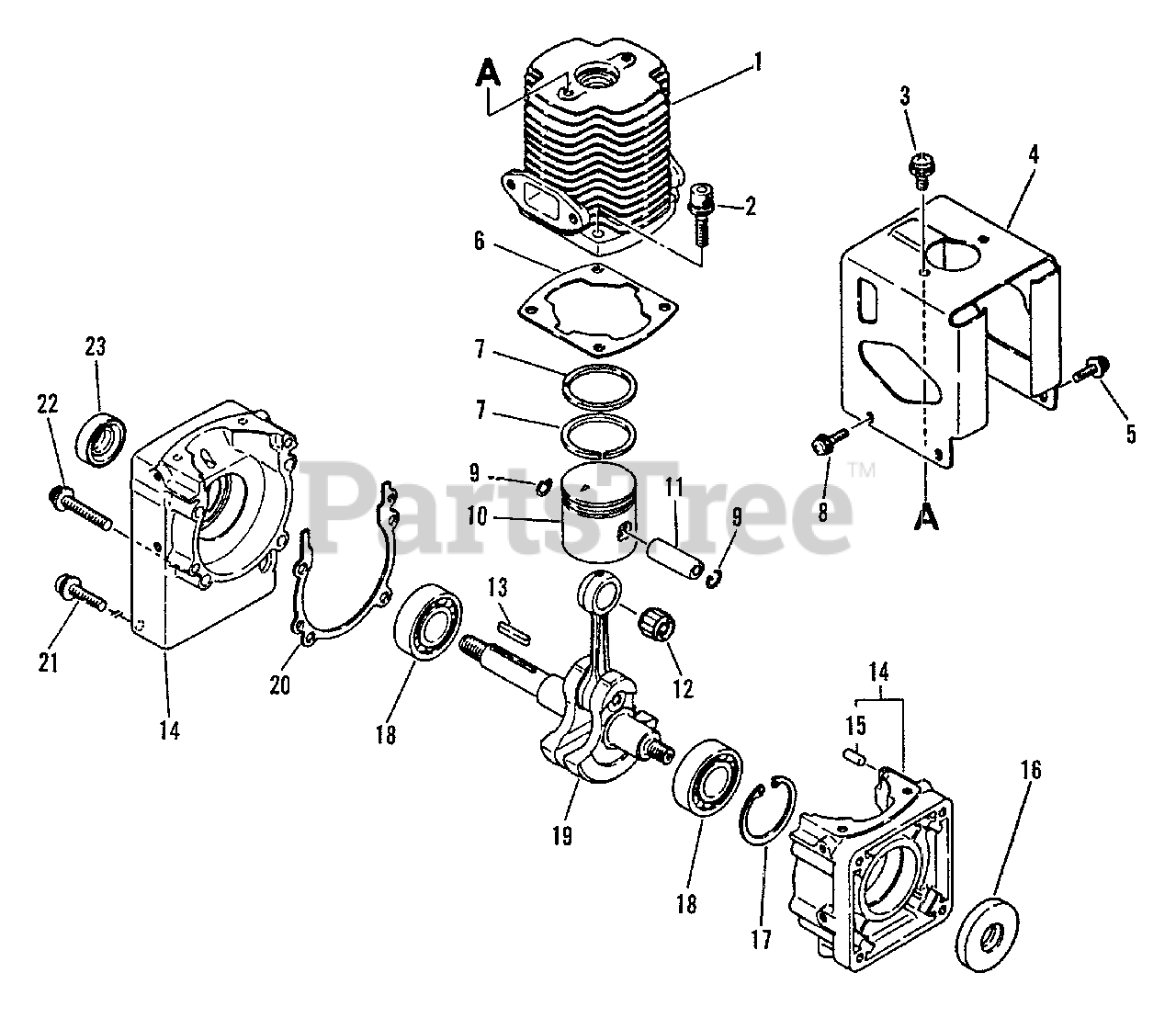

Engine, Crankcase Parts Diagram

  • Title
1

Echo 10101103460

CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

3

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

4

Echo 10151403460

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

6

Echo 10101003461

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

7

Echo 10001105731

RING, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 11

0

10

Echo 10001003460

PISTON
(Superseded to 10000003460)

$76.99

$

Usually ships in 2-4 days

0

11

Echo 10001303460

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

12

Echo 10001212330

BEARING, NEEDLE
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

13

Echo 90032503020

KEY
(Superseded to Discontinued)

$

$

Not available

14

Echo 10020203460

CRANKCASE KIT
(Superseded to 10020003460)

Note: Includes ITEM 15

$

$

Not available

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

Echo 10021302830

SEAL, OIL

$6.49

$

In Stock, Qty 5

0

17

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

18

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

19

Echo 10010003460

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

20

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900003461

$

$

Not available

21

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

22

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

23

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, only 4 left!

0

Echo 88900003461

GASKET KIT

$11.99

$

Usually ships in 2-4 days

0
