PB 30 (960220012-01) - Poulan Pro 30" Rear-Engine Riding Mower (2011-11) STEERING Parts Diagram

30" Rear-Engine Riding Mower

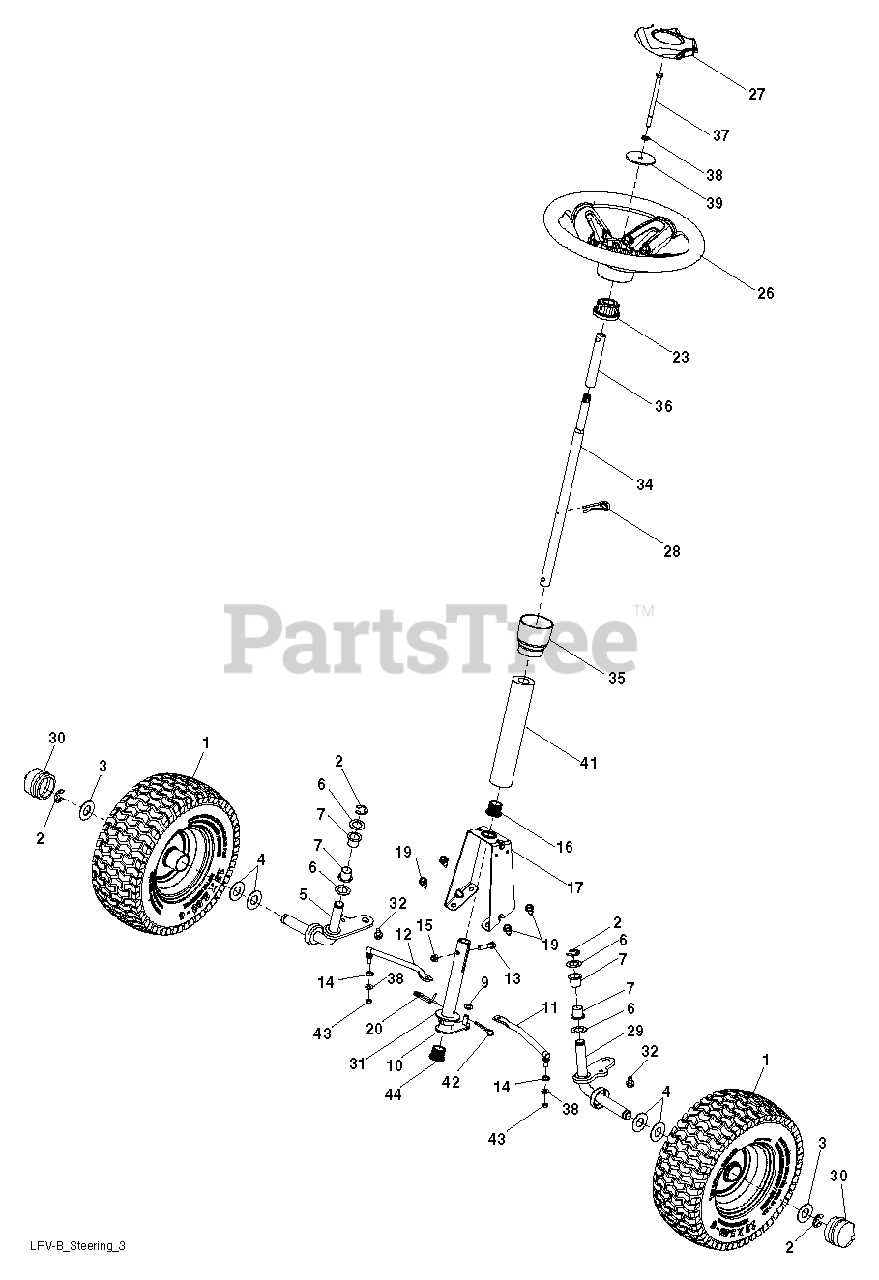

STEERING Parts Diagram

  • Title

1

Poulan 532442064

WHEEL.TUBE.13X5.00-6.YELLOW

$

$

Not available

2

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

5

Poulan 532436181

WELDMENT.SPINDLE.RH.LRV2

$51.99

$

Usually ships in 3-10 days

0

6

Poulan 532124931

(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

7

Poulan 532124937

Steering Column Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

9

Poulan 819131414

WASHER

$6.49

$

In Stock, only 2 left!

0

10

Poulan 532428057

WELDMENT, LWR STRG SHAFT

$34.99

$

Usually ships in 3-10 days

0

11

Poulan 532436183

SUBASM.LINKS.STEERING.LH.LRV2

$

$

Not available

12

Poulan 532436184

SUBASM.LINK.STEERING.RH.LRV2

$

$

Not available

13

Poulan 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

14

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

15

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 532428044

BUSHING, STEERING SNAP

$4.99

$

In Stock, only 1 left!

0

17

Poulan 532436178

SUPPORT.STEERING.UPPER.LRV2

$12.99

$

Usually ships in 3-10 days

0

19

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

20

Poulan 532428045

CLIP.SPRING.STEERINGG

$

$

Not available

23

Poulan 532437747

STEERING.WHEEL.ADAPTER
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

26

Poulan 532424551

WHEEL.STEERING.MLT.BR.YEL/OVRM

$100.99

$

Usually ships in 3-10 days

0

27

Poulan 532441506

CAP.WHL.STRNG.STDSRRD.SRS.YELL

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

29

Poulan 532436180

WELDMENT.SPINDLE.LH.LRV2

$30.99

$

Usually ships in 3-10 days

0

30

Poulan 532193268

CAP.AXLE.FRONT.YELLOW

$6.49

$

In Stock, only 3 left!

0

31

Poulan 819343210

WASHER

$4.99

$

In Stock, only 4 left!

0

32

Poulan 817580520

Bolt, 5/16-18 X 1.25

$4.99

$

In Stock, only 3 left!

0

34

Poulan 532436182

SHAFT.STEERING.UPPER.LRV2

$48.99

$

Usually ships in 3-10 days

0

35

Poulan 532442066

BOOT.LOWER.STEERING.WHEEL.LRVB

$13.99

$

Usually ships in 3-10 days

0

36

Poulan 532196075

SHAFT EXTENSION STEERING

$18.99

$

In Stock, only 2 left!

0

37

Poulan 874780580

BOLT.FIN.HEX.5/16-18

$5.99

$

In Stock, only 1 left!

0

38

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532436590

FOAM.SHAFT.STEERING

$8.99

$

In Stock, only 1 left!

0

42

Poulan 532421076

PIN.COTTER.5/64X3/4

$4.99

$

Usually ships in 3-10 days

0

43

Poulan 873540500

NUT, CROWNLOCK

$7.49

$

Usually ships in 3-10 days

0

44

Poulan 532428044

BUSHING, STEERING SNAP

$4.99

$

In Stock, only 1 left!

0
