PB 30 (960220012-01) - Poulan Pro 30" Rear-Engine Riding Mower (2011-11) ELECTRICAL Parts Diagram

30" Rear-Engine Riding Mower

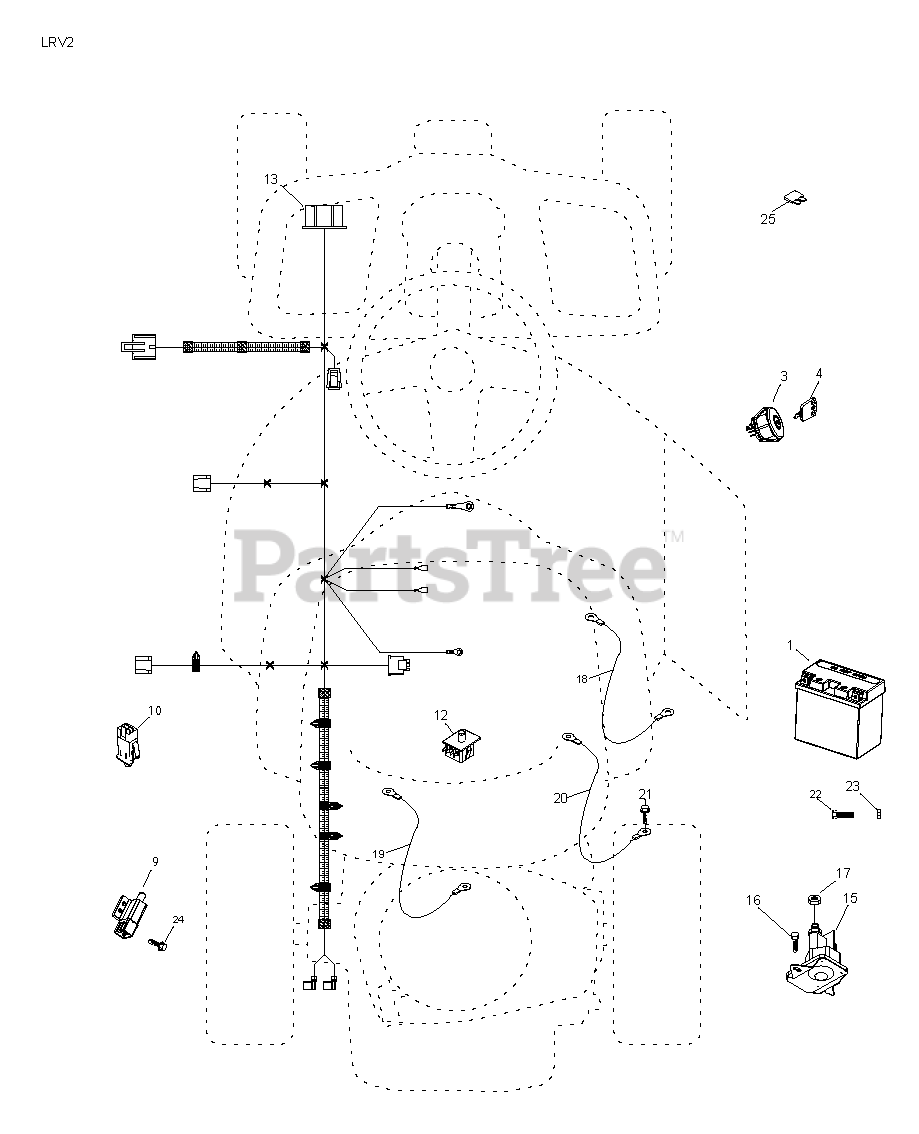

ELECTRICAL Parts Diagram

  • Title

1

Poulan 532436551

BATTERY.6A.12V.LEOCH

$133.99

$

Usually ships in 3-10 days

0

3

Poulan 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

4

Poulan 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA

$9.99

$

Usually ships in 3-10 days

0

9

Poulan 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

10

Poulan 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

12

Poulan 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

Usually ships in 3-10 days

0

13

Poulan 532437228

HARNESS.IGN.LRVB.ELECSTART

$103.99

$

Usually ships in 3-10 days

0

15

Poulan 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

16

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

17

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

18

Poulan 532416694

CABLE.BATTERY.20.RED.8 AWG

$20.99

$

In Stock, only 3 left!

0

19

Poulan 532421299

CABLE.STARTER.6GA.11"RED

$20.99

$

In Stock, only 1 left!

0

20

Poulan 532421298

CABLE GROUND 6 GA. 12" BLACK

$14.99

$

Usually ships in 3-10 days

0

21

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 532442148

SCREW.HEX.M5X0.8.9MM (2 2)
(Superseded to 594976801)

$2.49

$

In Stock, only 2 left!

0

23

Poulan 532438122

NUT.M5.(.393X.275)

$4.99

$

In Stock, only 2 left!

0

24

Poulan 818101012

SCREW.TORX.#10-14X.750

$2.99

$

Usually ships in 3-10 days

0

25

Poulan 532441622

(Superseded to 583501901)

$4.99

$

Usually ships in 3-10 days

0
