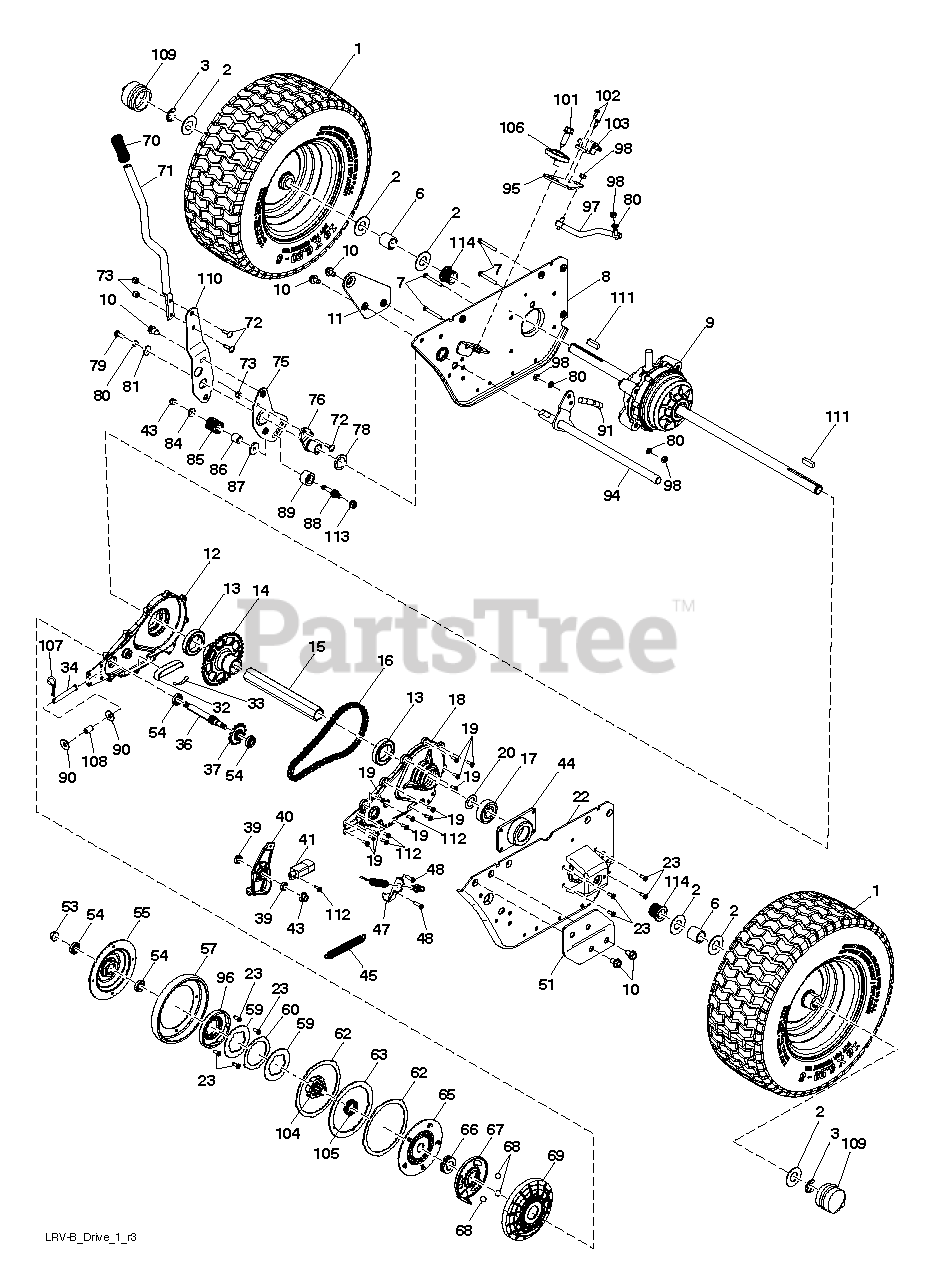

PB 30 (960220012-00) - Poulan Pro 30" Rear-Engine Riding Mower (2011-03) DRIVE Parts Diagram

30" Rear-Engine Riding Mower

DRIVE Parts Diagram

  • Title

1

Poulan 532442079

WHEEL.TUBE.16X5.50-8.YELLOW.SN

$182.99

$

Usually ships in 3-10 days

0

2

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 10

0

3

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532156972

SPACER, AXLE PVST

$6.99

$

Usually ships in 3-10 days

0

7

Poulan 874780428

HCS.1/4-20 X 1-3/4 GR 5 ZD

$7.99

$

Usually ships in 3-10 days

0

8

Poulan 532441851

SUPPORT.SIDE TRANSAXLE.RH.LRVB
(Superseded to 532436695)

$

$

Not available

9

Poulan 532441936

RP SUBASM.DRIVE.FINAL.LRVB
(Superseded to 532443989)

$363.99

$

Usually ships in 3-10 days

0

10

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

11

Poulan 532436741

BRACKET.SUPPORT.RH

$7.49

$

Usually ships in 3-10 days

0

12

Poulan 532436148

RP CASE.CHAIN RH
(Superseded to 532447424)

$54.99

$

In Stock, only 1 left!

0

13

Poulan 532437280

BEARING.BALL.6207-2RS

$

$

Not available

14

Poulan 532437176

SPROCKET DRIVEN.37. TOOTH

$

$

Not available

15

Poulan 532442551

TUBE.INPUT.HEX.LRVB

$72.99

$

Usually ships in 3-10 days

0

16

Poulan 532436153

CHAIN.#35.56.PITCHES

$

$

Not available

17

Poulan 532437282

BEARING.BALL.6204-3-2RS

$

$

Not available

18

Poulan 532436149

CASE.CHAIN.LH

$

$

Not available

19

Poulan 818051010

SCREW.10-24X5/8.PAN.HEAD TORX

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 532124931

(Superseded to 532006266)

$7.49

$

In Stock, Qty 15

0

22

Poulan 532436696

WELDMENT.SUPPORT.AXLE

$

$

Not available

23

Poulan 818101008

SCREW.TORX.#10-14X1/2

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 532436151

BLOCK.TENSION.CHAIN

$

$

Not available

33

Poulan 532436150

SPRING ADJUSTER.TENSION

$

$

Not available

34

Poulan 877101040

PIN.CLEVIS.5/16X2 1/2

$2.99

$

Usually ships in 3-10 days

0

36

Poulan 532435722

SHAFT.INPUT.CLUTCH

$

$

Not available

37

Poulan 532436152

SPROCKET.SPLINED.14.TOOTH

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 532430470

BEARING.BALL.689ZZ

$7.49

$

In Stock, only 1 left!

0

40

Poulan 532436939

ARM.BRAKE

$

$

Not available

41

Poulan 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

43

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

44

Poulan 532436652

COVER.END.HEX

$

$

Not available

45

Poulan 532436154

SPRING.DRIVE

$

$

Not available

47

Poulan 532436949

BRACKET MOUNT.CABLE.LRV.B

$4.99

$

Usually ships in 3-10 days

0

48

Poulan 817541016

SCREW.HEX.HEAD.WASH.10-24X1.00

$2.99

$

Usually ships in 3-10 days

0

51

Poulan 532436739

BRACKET SUPPORT.LH

$6.49

$

In Stock, only 4 left!

0

53

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

54

Poulan 532435726

BEARING.BALL.6901-2RS
(Superseded to 580393001)

$

$

Not available

55

Poulan 532437777

COVER.WHEEL.CLUTCH
(Superseded to 532444035)

$14.99

$

In Stock, Qty 17

0

57

Poulan 532436559

WHEEL.FRICTION

$66.99

$

In Stock, only 1 left!

0

59

Poulan 532441097

PLATE.CLUTCH.DRIVE
(Superseded to 580393001)

$

$

Not available

60

Poulan 532437787

PLATE.PRESSURE.DRIVE

$

$

Not available

62

Poulan 532437786

PLATE.CLUTCH.BRAKE
(Superseded to 580393001)

$

$

Not available

63

Poulan 532437785

PLATE.PRESSURE.BRAKE
(Superseded to 580393001)

$

$

Not available

65

Poulan 532435723

PLATE.PRESSURE.MASTER

$8.99

$

Usually ships in 3-10 days

0

66

Poulan 532435724

BEARING THRUST.20MM
(Superseded to 580393001)

$

$

Not available

67

Poulan 532435725

PLATE THROWOUT
(Superseded to 580393001)

$

$

Not available

68

Poulan 532435728

BEARING BALL.LOOSE

$2.99

$

Usually ships in 3-10 days

0

69

Poulan 532435727

COVER.CLUTCH.LRVB

$13.99

$

Usually ships in 3-10 days

0

70

Poulan 532411555

GRIP.HANDLE.LIFT.PVC.BLACK

$9.49

$

In Stock, only 1 left!

0

71

Poulan 532436865

TUBE.SHIFT.LRVB

$15.99

$

Usually ships in 3-10 days

0

72

Poulan 872110406

(Superseded to 582735501)

$7.99

$

Usually ships in 3-10 days

0

73

Poulan 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

75

Poulan 532436758

$

$

Not available

76

Poulan 532183900

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

78

Poulan 532429055

SPACER.NYLON.

$4.99

$

Usually ships in 3-10 days

0

79

Poulan 874780412

(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

81

Poulan 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

Usually ships in 3-10 days

0

84

Poulan 819111610

WASHER

$6.49

$

Usually ships in 3-10 days

0

85

Poulan 532436914

SPRING.FRICTION.PACK.

$

$

Not available

86

Poulan 532437304

BUSHING.PACK.FRICTION.FD2

$

$

Not available

87

Poulan 532436948

WASHER.PLASTIC

$6.99

$

Usually ships in 3-10 days

0

88

Poulan 532436701

STUD.PACK.FRICTION

$

$

Not available

89

Poulan 532437299

STUD.PACK.FRICTION.FD2

$2.99

$

Usually ships in 3-10 days

0

90

Poulan 819111416

WASHER
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

91

Poulan 532436924

SUBASM.LINK.SHIFT

$14.99

$

Usually ships in 3-10 days

0

94

Poulan 532436918

WELDMENT.SHIFT.FD2

$

$

Not available

95

Poulan 532436866

PLATE.SHIFT

$

$

Not available

96

Poulan 532437767

DRUM.CLUTCH.MULTI.DISC

$26.99

$

Usually ships in 3-10 days

0

97

Poulan 532436925

SUBASM.LINK.SHIFT.PRIMARY

$

$

Not available

98

Poulan 532150360

NUT LOCK CENTER 1/4 -28 FNTHD
(Superseded to 873610400)

$

$

Not available

101

Poulan 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

102

Poulan 532086777

(Superseded to 532750097)

$4.99

$

In Stock, Qty 16

0

103

Poulan 532109869

$

$

Not available

104

Poulan 532437781

HUB.CENTER

$9.99

$

Usually ships in 3-10 days

0

105

Poulan 532436142

SPRING.WAVE.C125-H5
(Superseded to 580393001)

$

$

Not available

106

Poulan 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

107

Poulan 532124788

(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

108

Poulan 532436784

BUSHING.5/16 ID.X7/160DX1/2

$

$

Not available

109

Poulan 532193268

CAP.AXLE.FRONT.YELLOW

$6.49

$

In Stock, only 2 left!

0

110

Poulan 532428461

BRACKET, SHIFTER FLEX

$15.99

$

Usually ships in 3-10 days

0

111

Poulan 532123583

SQUARE KEY

$4.99

$

In Stock, only 3 left!

0

112

Poulan 818101012

SCREW.TORX.#10-14X.750

$2.99

$

Usually ships in 3-10 days

0

113

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

114

Poulan 532436282

BEARING.FLANGE

$

$

Not available
