PB 270 - Shindaiwa Power Broom Throttle Lever Parts Diagram

Power Broom

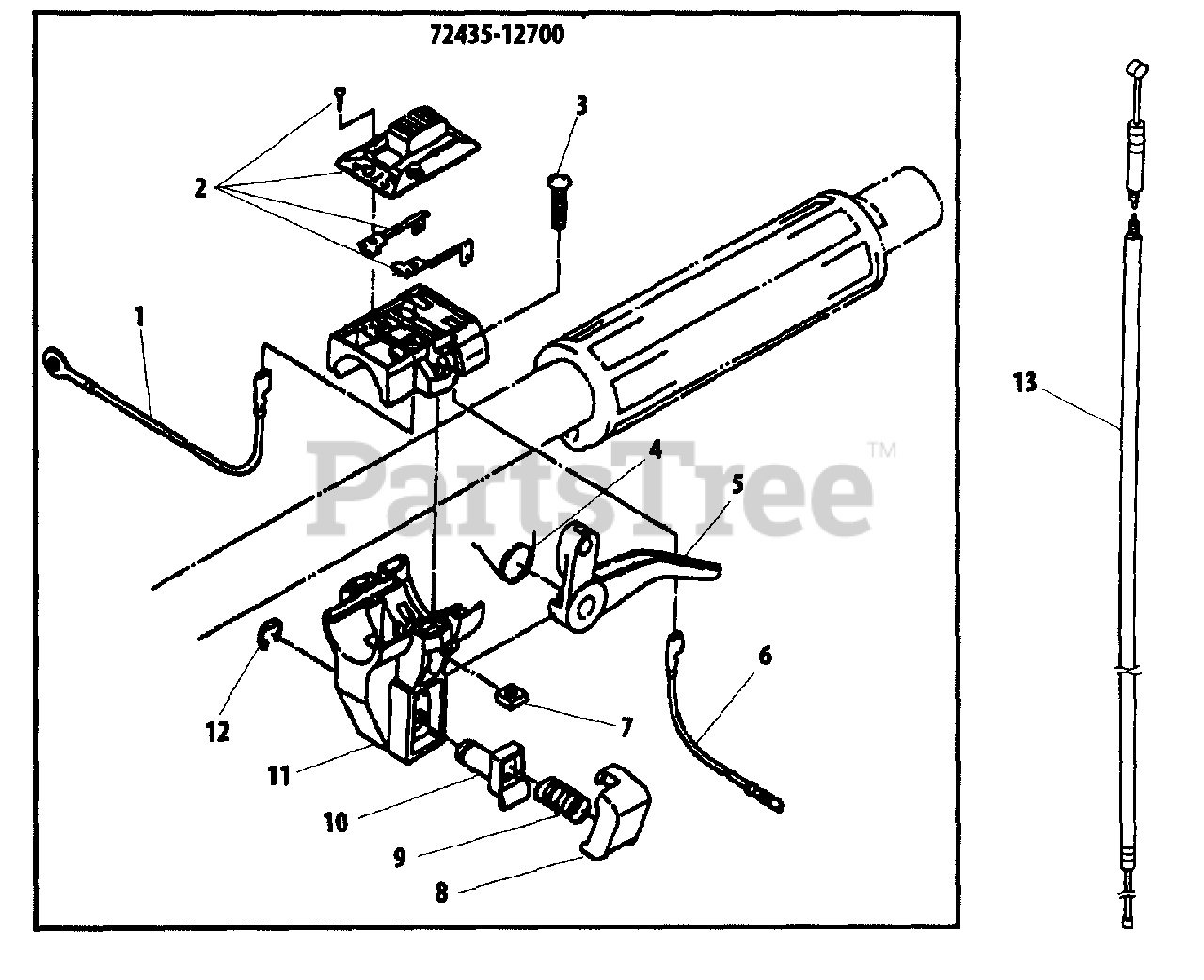

Throttle Lever Parts Diagram

  • Title

Echo 72435-12700

THROTTLE LEVER ASSY
(Superseded to C044000790)

$42.99

$

In Stock, Qty 6

0

1

Echo 72435-12910

LEAD - GROUND
(Superseded to V485001600)

$4.99

$

Usually ships in 2-4 days

0

2

Echo 72435-12820

SWITCH ASSY
(Superseded to A045000290)

$26.99

$

In Stock, only 1 left!

0

3

Echo 11203-05200

SCREW - 5X20
(Superseded to 9157805020)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 72435-12750

SPRING, TRIGGER
(Superseded to V452000480)

$1.99

$

In Stock, Qty 16

0

5

Echo 72435-12730

LEVER, THROTTLE
(Superseded to C450000470)

$10.99

$

Usually ships in 2-4 days

0

6

Echo 72435-12920

LEAD - IGNITION
(Superseded to V485001610)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 72435-12950

NUT
(Superseded to V263000160)

$0.99

$

In Stock, Qty 20+

0

8

Echo 72435-12770

BUTTON, THROTTLE LEVER
(Superseded to C461000040)

$3.49

$

Usually ships in 2-4 days

0

9

Echo 72435-12760

SPRING
(Superseded to V450000900)

$3.49

$

In Stock, only 1 left!

0

10

Echo 72435-12740

SHAFT
(Superseded to C451000040)

$1.99

$

In Stock, only 2 left!

0

11

Echo 72435-12720

BODY
(Superseded to 72435-12710)

$39.99

$

Usually ships in 2-4 days

0

12

Echo 72435-12780

RING, RETAINING
(Superseded to V583000150)

$0.99

$

In Stock, Qty 8

0

13

Echo 70036-83110

CABLE, THROTTLE
(Superseded to V430003400)

$6.49

$

In Stock, Qty 20+

0
