PB 270 - Shindaiwa Power Broom Fan Cover Parts Diagram

Power Broom

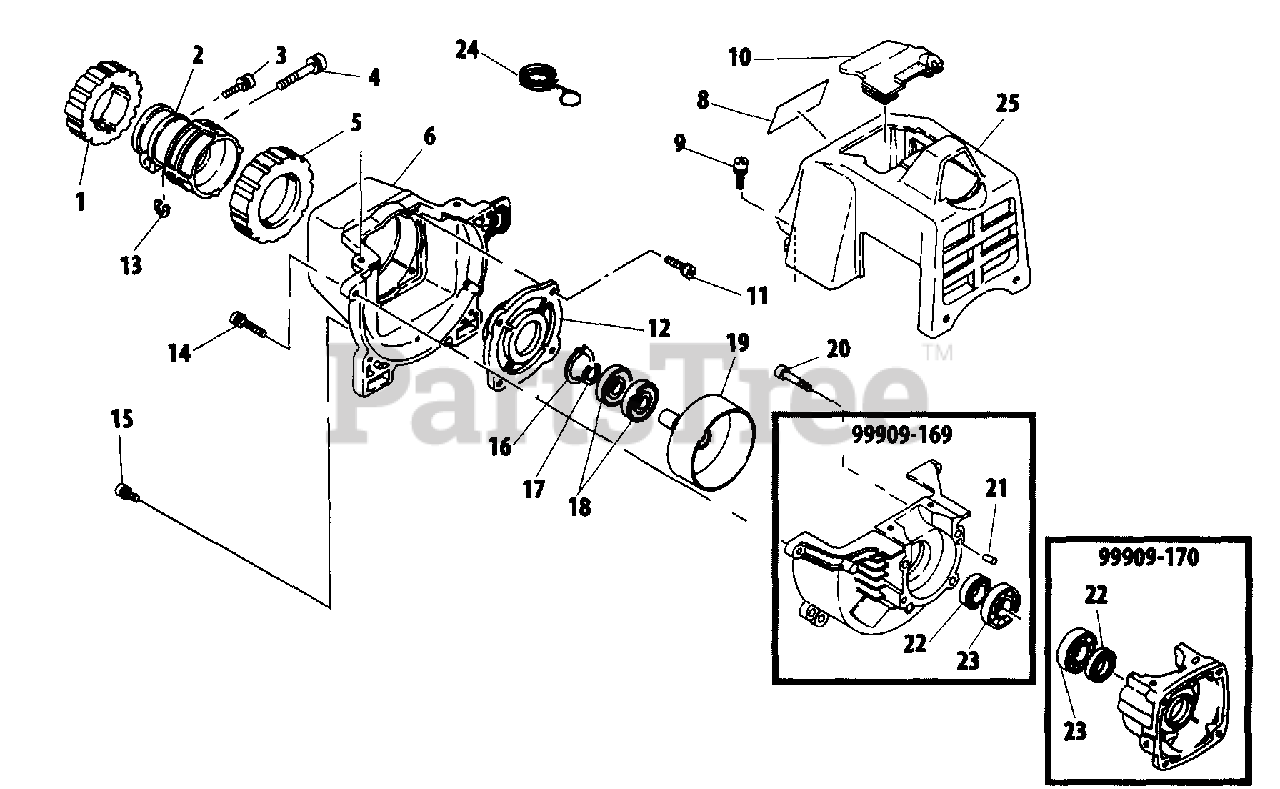

Fan Cover Parts Diagram

  • Title
1

Echo 20024-31421

CUSHION - FRONT
(Superseded to V423000040)

$2.99

$

In Stock, only 1 left!

0

2

Echo 20024-31410

JOINT
(Superseded to 20024-31411)

$24.99

$

Usually ships in 2-4 days

0

3

Echo 11022-01560

SCREW - 5X65

$

$

Currently unavailable

4

Echo 11022-06280

SCREW - 6X28
(Superseded to V204000410)

$

$

Not available

5

Echo 20024-31431

CUSHION - REAR
(Superseded to V423000050)

$2.99

$

In Stock, only 1 left!

0

6

Echo 70102-31110

CASE, FAN
(Superseded to A172001140)

$45.99

$

In Stock, only 1 left!

0

8

Echo 70162-31251

LABEL - MODEL
(Superseded to X504003320)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

10

Echo 20024-31231

COVER
(Superseded to A429000100)

$6.99

$

In Stock, only 1 left!

0

11

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

12

Echo 20024-31130

CASE, CLUTCH
(Superseded to A570000190)

$14.99

$

Usually ships in 2-4 days

0

13

Echo 20024-31460

SHIM
(Superseded to V375000350)

$0.99

$

In Stock, Qty 7

0

14

Echo 11020-05180

SCREW - 5X18
(Superseded to V203000710)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 12

0

16

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 13

0

17

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 6

0

18

Echo 02036-06001

BEARING, BALL - 6001DDUC3
(Superseded to 9400236001)

$7.49

$

In Stock, only 2 left!

0

19

Echo 20024-31151

DRUM, CLUTCH
(Superseded to A556000810)

$25.99

$

In Stock, only 2 left!

0

20

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 15

0

Echo 99909-169

CRANKCASE ASSY - FRONT
(Superseded to 62073-21020)

$24.99

$

In Stock, only 1 left!

0

21

Echo 20000-21140

PIN - LOCATING
(Superseded to V623000060)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 10

0

23

Echo 02030-06201

BEARING, BALL - 6201
(Superseded to 12900-62010)

$7.99

$

In Stock, Qty 9

0

Echo 99909-170

CRANKCASE ASSY - REAR
(Superseded to 62073-21010)

$34.99

$

Usually ships in 2-4 days

0

22

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 10

0

23

Echo 02030-06201

BEARING, BALL - 6201
(Superseded to 12900-62010)

$7.99

$

In Stock, Qty 9

0

24

Echo 20024-83152

GUIDE, CABLE
(Superseded to C487000220)

$1.99

$

In Stock, Qty 5

0

25

Echo 70102-31211

COVER, ENGINE
(Superseded to A160001490)

$11.99

$

In Stock, Qty 5

0
