PB 270 - Shindaiwa Power Broom Clutch, Piston Parts Diagram

Power Broom

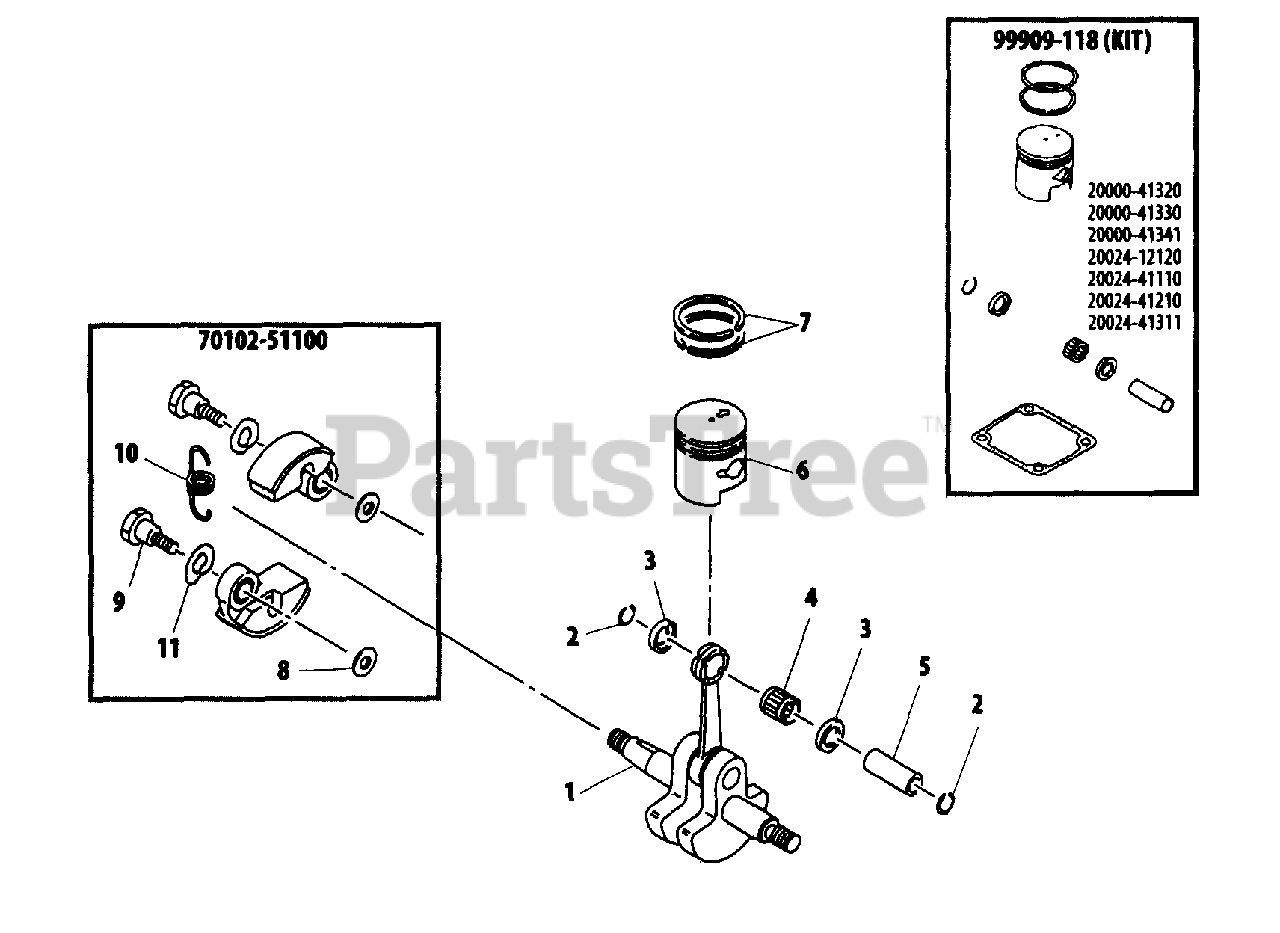

Clutch, Piston Parts Diagram

  • Title

1

Echo 20024-42001

CRANKSHAFT ASSY
(Superseded to A011000770)

$62.99

$

Usually ships in 2-4 days

0

Echo 99909-118

PISTON ASSY
(Superseded to 70244-98040)

$61.99

$

In Stock, only 2 left!

0

2

Echo 20000-41320

RING, RETAINING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0

3

Echo 20000-41341

WASHER, THRUST - 9
(Superseded to 37019-41240)

$2.49

$

In Stock, Qty 10

0

4

Echo 20000-41330

BEARING, NEEDLE
(Superseded to 37019-41230)

$6.49

$

In Stock, only 2 left!

0

5

Echo 20024-41311

PIN, PISTON
(Superseded to V607000020)

$4.49

$

Usually ships in 2-4 days

0

6

Echo 20024-41110

PISTON
(Superseded to A100000610)

$29.99

$

Usually ships in 2-4 days

0

7

Echo 20024-41210

RING, PISTON
(Superseded to A101000330)

$4.99

$

In Stock, Qty 5

0

Echo 20024-12120

GASKET, CYLINDER
(Superseded to 62074-12120)

$2.99

$

In Stock, Qty 18

0

Echo 70102-51100

CLUTCH SHOE ASSY
(Superseded to A056000430)

$

$

Not available

8

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

9

Echo 20024-51210

BOLT, CLUTCH
(Superseded to A557000090)

$2.49

$

Usually ships in 2-4 days

0

10

Echo 70102-51220

SPRING, CLUTCH
(Superseded to 70102-51221)

$5.49

$

In Stock, only 2 left!

0

11

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0
