PB 270 - Shindaiwa Power Broom Carburetor (EPA/CARB) Parts Diagram

Power Broom

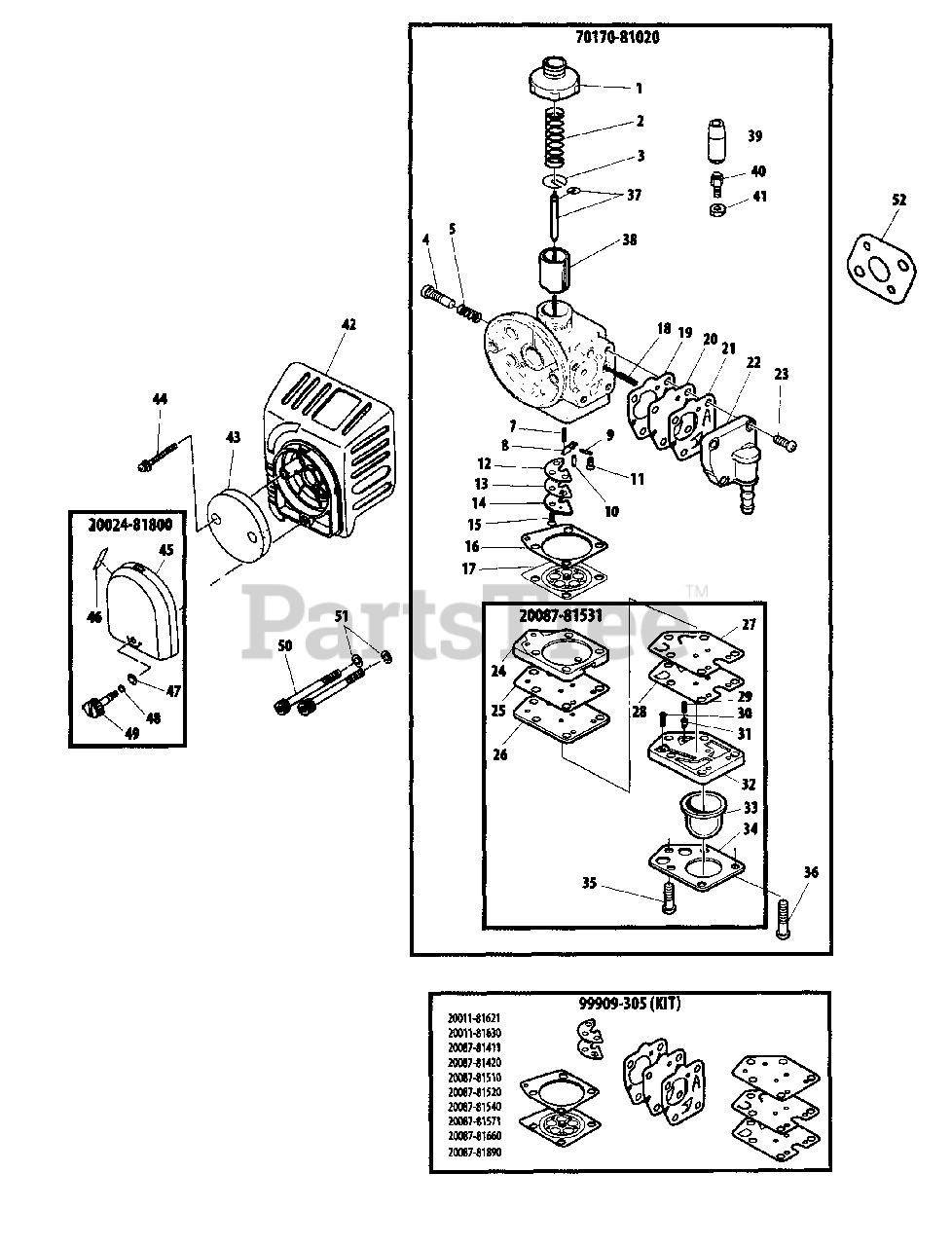

Carburetor (EPA/CARB) Parts Diagram

  • Title

Echo 70170-81020

CARBURETOR
(Superseded to A021002360)

$85.99

$

In Stock, only 2 left!

0

1

Echo 72920-81120

CAP, CARBURETOR
(Superseded to 12411346630)

$6.49

$

In Stock, only 1 left!

0

2

Echo 20011-81140

SPRING
(Superseded to P004000440)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 20000-81150

RETAINER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

4

Echo 20000-81310

SCREW, IDLE ADJUST
(Superseded to 12415905530)

$2.49

$

In Stock, only 4 left!

0

5

Echo 72920-81820

SPRING
(Superseded to 12416011120)

$2.49

$

In Stock, only 1 left!

0

7

Echo 20087-81480

SPRING

$1.99

$

Usually ships in 2-4 days

0

8

Echo 20011-81451

LEVER, METERING
(Superseded to P004001340)

$4.99

$

Usually ships in 2-4 days

0

9

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

10

Echo 20000-81441

VALVE, INLET NEEDLE
(Superseded to P004000930)

$10.99

$

In Stock, only 4 left!

0

11

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 20087-81420

GASKET
(Superseded to P004002510)

$6.99

$

Usually ships in 2-4 days

0

13

Echo 20087-81411

VALVE, CHECK
(Superseded to P004002500)

$7.99

$

Usually ships in 2-4 days

0

14

Echo 20087-81430

PLATE
(Superseded to 12434512710)

$15.99

$

Usually ships in 2-4 days

0

15

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 20087-81510

GASKET, METERING
(Superseded to 12435849930)

$1.49

$

In Stock, Qty 7

0

17

Echo 20087-81520

DIAPHRAGM, METERING
(Superseded to 12434149930)

$23.99

$

In Stock, only 2 left!

0

18

Echo 20011-81680

SPRING
(Superseded to 12436721330)

$1.49

$

In Stock, Qty 6

0

19

Echo 20011-81630

GASKET, METERING
(Superseded to 12436321330)

$1.99

$

In Stock, Qty 7

0

20

Echo 20011-81621

DIAPHRAGM, METERING
(Superseded to P004001430)

$5.99

$

In Stock, only 3 left!

0

21

Echo 20087-81660

VALVE, PUMP
(Superseded to P004002550)

$13.99

$

Usually ships in 2-4 days

0

22

Echo 20087-81640

BODY, PUMP
(Superseded to 20087-81641)

$18.99

$

In Stock, Qty 7

0

23

Echo 20000-81650

SCREW
(Superseded to P004001030)

$0.99

$

In Stock, Qty 20+

0

Echo 20087-81531

PRIMER PUMP ASSY
(Superseded to P004002520)

$43.99

$

Usually ships in 2-4 days

0

24

Echo 20087-81550

BASE, PURGE
(Superseded to 12437949930)

$20.99

$

Usually ships in 2-4 days

0

25

Echo 20087-81540

GASKET
(Superseded to 12435949930)

$2.49

$

Usually ships in 2-4 days

0

26

Echo 20087-81560

PLATE, PUMP
(Superseded to 12436049930)

$3.49

$

Usually ships in 2-4 days

0

27

Echo 20087-81571

DIAPHRAGM
(Superseded to P004002530)

$10.99

$

Usually ships in 2-4 days

0

28

Echo 20087-81890

GASKET
(Superseded to P004002600)

$2.49

$

In Stock, only 2 left!

0

29

Echo 20087-81851

SPRING, RETURN
(Superseded to P004002580)

$2.49

$

In Stock, only 2 left!

0

30

Echo 20087-81870

SPRING
(Superseded to 12435550130)

$1.99

$

In Stock, Qty 5

0

31

Echo 20087-81861

VALVE
(Superseded to P004002590)

$18.99

$

Usually ships in 2-4 days

0

32

Echo 20087-81811

COVER, PUMP
(Superseded to P004002570)

$7.49

$

In Stock, only 1 left!

0

33

Echo 20087-81820

BULB, PURGE
(Superseded to 12438012710)

$9.99

$

In Stock, only 1 left!

0

34

Echo 20087-81830

PLATE
(Superseded to 12434249930)

$3.49

$

Usually ships in 2-4 days

0

35

Echo 20087-81840

SCREW
(Superseded to 12431049930)

$0.99

$

Usually ships in 2-4 days

0

36

Echo 20087-81880

SCREW
(Superseded to 90024103020)

$0.99

$

Usually ships in 2-4 days

0

37

Echo 70170-81170

NEEDLE, JET
(Superseded to P004002920)

$11.99

$

Usually ships in 2-4 days

0

38

Echo 70170-81180

SLIDE VALVE
(Superseded to P004002930)

$30.99

$

In Stock, only 2 left!

0

39

Echo 72920-81130

GROMMET
(Superseded to 12417411120)

$1.49

$

In Stock, Qty 20+

0

40

Echo 72920-81140

NUT, CABLE ADJUST
(Superseded to 12415813410)

$8.49

$

In Stock, only 1 left!

0

41

Echo 20000-81260

LOCKNUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

42

Echo 70102-81710

CASE, AIR FILTER
(Superseded to A225000490)

$8.99

$

In Stock, Qty 6

0

43

Echo 20056-81740

FILTER, AIR
(Superseded to A226000650)

$1.99

$

In Stock, Qty 20+

0

44

Echo 11207-04250

SCREW - 4X25
(Superseded to 9157704025)

$0.99

$

In Stock, Qty 20+

0

Echo 20024-81800

AIR FILTER COVER ASSY
(Superseded to P021034400)

$9.99

$

In Stock, only 2 left!

0

45

Echo 20024-81770

COVER, AIR FILTER
(Superseded to A232000780)

$3.99

$

In Stock, only 2 left!

0

46

Echo 19404-00008

LABEL - CHOKE
(Superseded to X506000130)

$0.99

$

In Stock, Qty 20+

0

47

Echo 20024-81790

WASHER - CONICAL
(Superseded to V347000030)

$0.99

$

In Stock, Qty 7

0

48

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 6

0

49

Echo 20115-81780

THUMBSCREW
(Superseded to V299000430)

$3.99

$

In Stock, only 1 left!

0

50

Echo 01020-05650

SCREW - 5X65
(Superseded to 9110005065)

$0.99

$

In Stock, Qty 20+

0

51

Echo 01600-05130

LOCKWASHER - 5
(Superseded to 9223405000)

$0.99

$

Usually ships in 2-4 days

0

52

Echo 20024-83410

GASKET, INTAKE
(Superseded to V103000850)

$0.99

$

In Stock, Qty 17

0

Echo 99909-305

DIAPHRAGM/GASKET KIT
(Superseded to 70244-98050)

$62.99

$

In Stock, only 1 left!

0
