PB 26H54YT (960420127-02) - Poulan Pro Lawn Tractor (2011-07) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

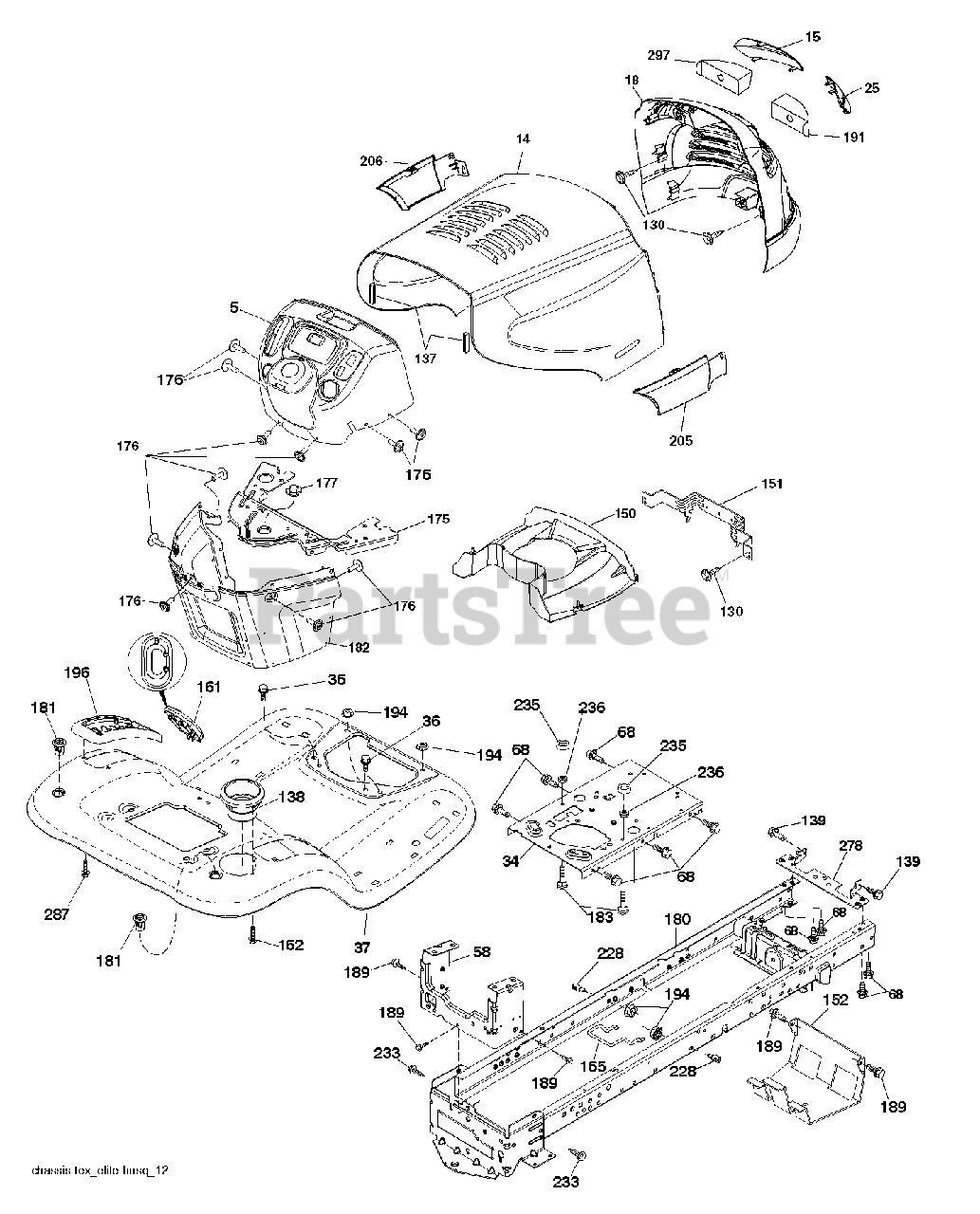

CHASSIS ENCLOSURES Parts Diagram

  • Title

5

Poulan 532436386

$

$

Not available

14

Poulan 532436382

HOOD.PNT.ELITE.TVENT.SVENT.SSK

$133.99

$

Usually ships in 3-10 days

0

15

Poulan 532189982

(Superseded to 532188264)

$18.99

$

In Stock, only 1 left!

0

18

Poulan 532432778

GRILLE.ELITE HUSQ.BLACK.DL.

$

$

Not available

25

Poulan 532189981

(Superseded to 532188263)

$18.99

$

Usually ships in 3-10 days

0

34

Poulan 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 532436387

$

$

Not available

58

Poulan 532412280

DRAWBAR UPPER 2PC SMALL FENDER

$46.99

$

Usually ships in 3-10 days

0

68

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

130

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

137

Poulan 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

138

Poulan 532409730

CUPHOLDER.TL.TEX.BLACK

$7.99

$

Usually ships in 3-10 days

0

139

Poulan 532171873

BOLT, SHOULDER 5/16-18
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

150

Poulan 532430961

$

$

Not available

151

Poulan 532408707

$

$

Not available

152

Poulan 532199535

SHIELD.BROWNING.W/TEX

$

$

Not available

161

Poulan 532412072

WINDOW.FUEL.LT.TEX.BLACK
(Superseded to 532193229)

$8.99

$

Usually ships in 3-10 days

0

162

Poulan 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

Poulan 532196826

SUPPORT.TANK.REAR.W/TEX

$26.99

$

Usually ships in 3-10 days

0

175

Poulan 532193243

CROSSMEMBER.LT

$27.99

$

Usually ships in 3-10 days

0

176

Poulan 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Poulan 532195227

BUSHING,STEERING

$6.99

$

In Stock, Qty 16

0

180

Poulan 532415063

CHASS.WLDMNT.TL.12GA/2P.48/54

$193.99

$

Usually ships in 3-10 days

0

181

Poulan 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Poulan 532193057

DASH.LOWER.LT.CCS

$96.99

$

Usually ships in 3-10 days

0

183

Poulan 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

191

Poulan 532416500

INSERT.REFLECTIVE.RH.

$9.49

$

Usually ships in 3-10 days

0

194

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

196

Poulan 532414579

CONSOLE.ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

205

Poulan 532424747

SKIRT.SIDE.RH.ELITE.HUSQ.428

$5.99

$

Usually ships in 3-10 days

0

206

Poulan 532424748

SKIRT.SIDE.LH.ELITE.HUSQ.BLACK

$

$

Not available

228

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

233

Poulan 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

235

Poulan 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Poulan 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

Usually ships in 3-10 days

0

278

Poulan 532196394

BRKT.HOOD/MUFF.STEALTH

$9.99

$

Usually ships in 3-10 days

0

287

Poulan 817600406

SCREW 1/4X20

$6.49

$

In Stock, only 2 left!

0

297

Poulan 532188267

INSERT LENS

$10.99

$

Usually ships in 3-10 days

0

Poulan 532431883

FRONT BUMPER
(Superseded to 531307007)

Note: (NOT SHOWN)

$83.99

$

Usually ships in 3-10 days

0
